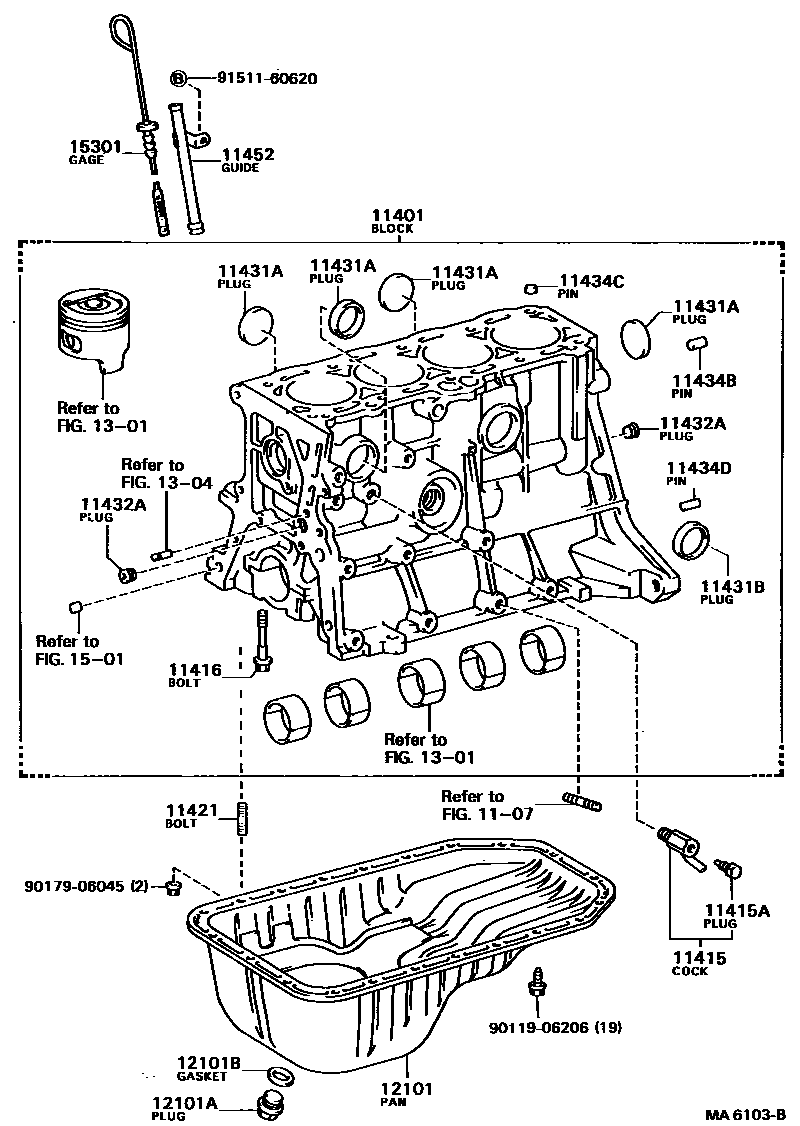

CYLINDER BLOCK

1107MOUNTING

→ Go to FIG 11-07

11401BLOCK SUB-ASSY, CYLINDER

main11401-19127i3AU..AL25198208-198303

main11401-19185i3A#..AL25198303-198801

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i3AU..AL25198208-198212

main90910-09079i3AU..AL25198212-198406

main90910-09088i3A#..AL25198406-198801

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90109-10023i3AU..AL25198208-198406

main90910-09087i3A#..AL25198406-198801

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i3A#..AL25198208-198801

*10-1.25PX61-18

11421BOLT, STUD(FOR OIL PAN)

main90116-06022×2i3AU..AL25198208-198407

main90116-06049×2i3A#..AL25198407-198705

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×4i3A#..AL25198208-198801

OD=35

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i3A#..AL25198208-198801

OD=40

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008×2i3A#..AL25198208-198801

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i3A#..AL25198208-198801

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017×2i3A#..AL25198208-198801

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i3A#..AL25198208-198801

11452GUIDE, OIL LEVEL GAGE

main11452-15010i3A#..AL25198208-198801

12101PAN SUB-ASSY, OIL

main12101-15030i3AU..AL25198208-198407

main12101-15080i3A#..AL25198407-198801

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3A#..AL25198407-198801

main90341-18089i3AU..AL25198208-198407

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i3A#..AL25198407-198607

main90430-12019i3A#..AL25198607-198801

main90430-18244i3AU..AL25198208-198407

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1304TIMING BELT

→ Go to FIG 13-04

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15010i3A#..AL25198208-198801

9011906206

main90119-06206

9017906045

main90179-06045

9151160620

main91511-60620

23 parts on this diagram · 1 diagram in section
