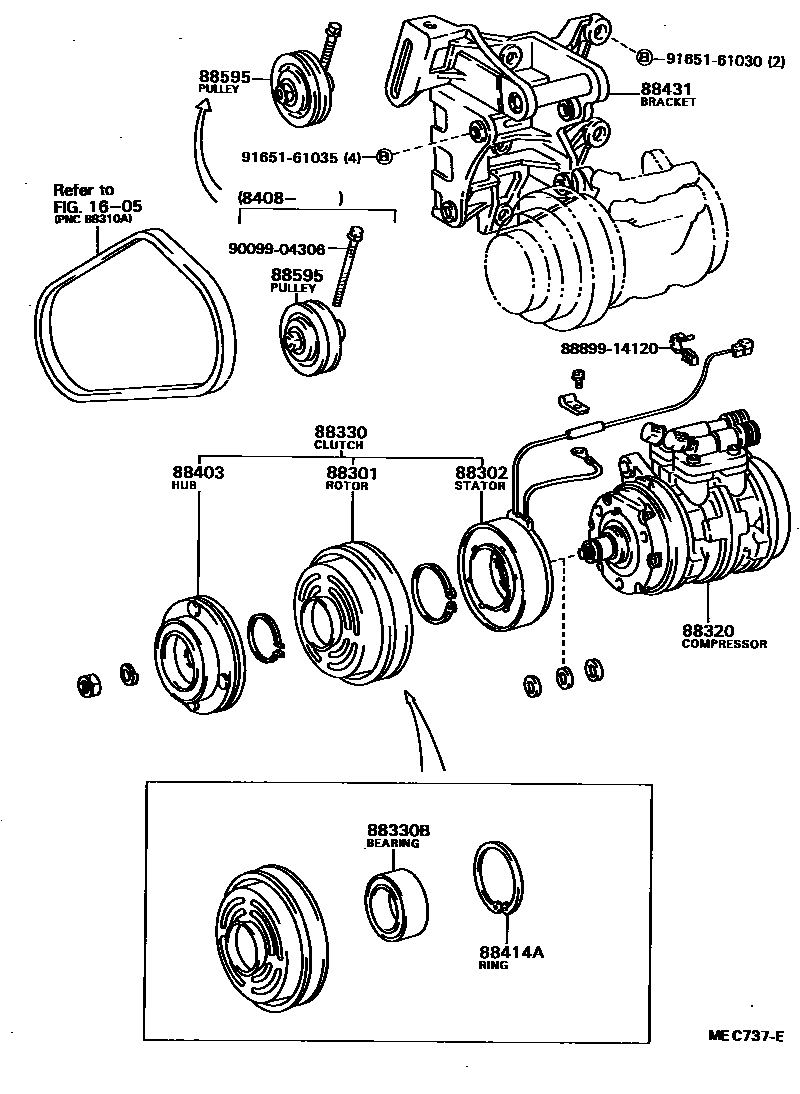

HEATING & AIR CONDITIONING - COMPRESSOR

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14030iAL2#198205-198604

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16010iAL2#198205-198604

88320COMPRESSOR ASSY, COOLER

main88320-16040iAL2#198205-198604

88330CLUTCH ASSY, MAGNET

main88410-16010iAL2#198205-198604

88330BBEARING, MAGNET CLUTCH

main90099-10135iAL2#198205-198604

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14040iAL2#198205-198604

88414ARING, SHIELD SNAP

main90099-07114iAL2#198205-198604

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16020iAL2#198205-198604

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16020iAL2#198205-198408

main88440-16030iAL2#198408-198604

8889914120COVER, EVAPORATOR

main88899-14120

9009904306

main90099-04306

9165161030

main91651-61030

9165161035

main91651-61035

14 parts on this diagram · 1 diagram in section
