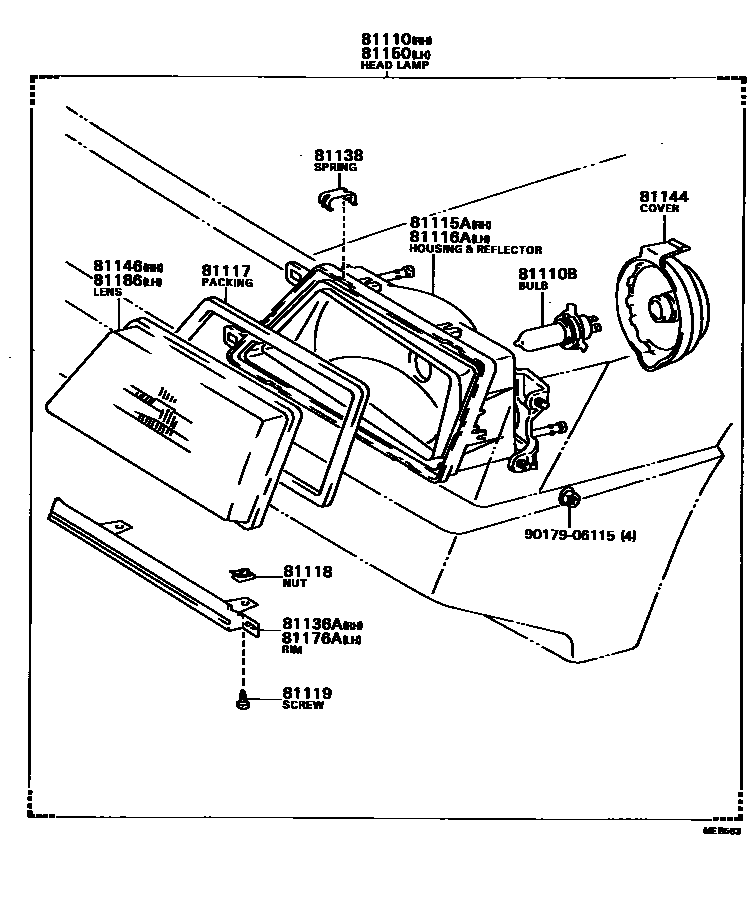

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-80209iAL2#..CTD,DLX,GL,SE198205-198408

main81110-80210iAL2#198205-198408

HALOGEN

main81110-80422iAL20198408-198604

main81110-80423iAL2#198408-198604

HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iAL2#198205-198604

main90981-13022×2iAL2#..CTD,DLX,GL,SE198205-198604

81115ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

main81105-16150iAL2#..CTD,DLX,GL,SE198205-198408

main81105-16160iAL2#198205-198408

HALOGEN

81116ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

main81106-16150iAL2#..CTD,DLX,GL,SE198205-198408

main81106-16160iAL2#198205-198408

HALOGEN

81117PACKING, HEADLAMP HOUSING

main81136-32030×2iAL2#198205-198408

81118NUT, SPRING

main81128-16150×4iAL2#198205-198408

81119SCREW, HEADLAMP

main81119-14880×4iAL2#198408-198604

main81119-16150×4iAL2#198205-198408

81136ARIM, HEADLAMP, RH

main81112-16150iAL2#198205-198604

81138SPRING, HEADLAMP

main81138-14880×8iAL2#198205-198408

SILVER

main81138-32030×4iAL2#198205-198408

BLACK

81144COVER, HEADLAMP, NO.1

main81139-14880×2iAL2#198205-198604

81146LENS, HEADLAMP, RH

main81135-32030iAL2#198205-198408

81150HEADLAMP ASSY, LH

main81150-80206iAL2#..CTD,DLX,GL,SE198205-198408

main81150-80207iAL2#198205-198408

HALOGEN

main81150-80414iAL20198408-198604

main81150-80415iAL2#198408-198604

HALOGEN

81176ARIM, HEADLAMP, LH

main81152-16150iAL2#198205-198604

81186LENS, HEADLAMP, LH

main81176-32030iAL2#198205-198408

9017906115

main90179-06115

15 parts on this diagram · 2 diagrams in section
