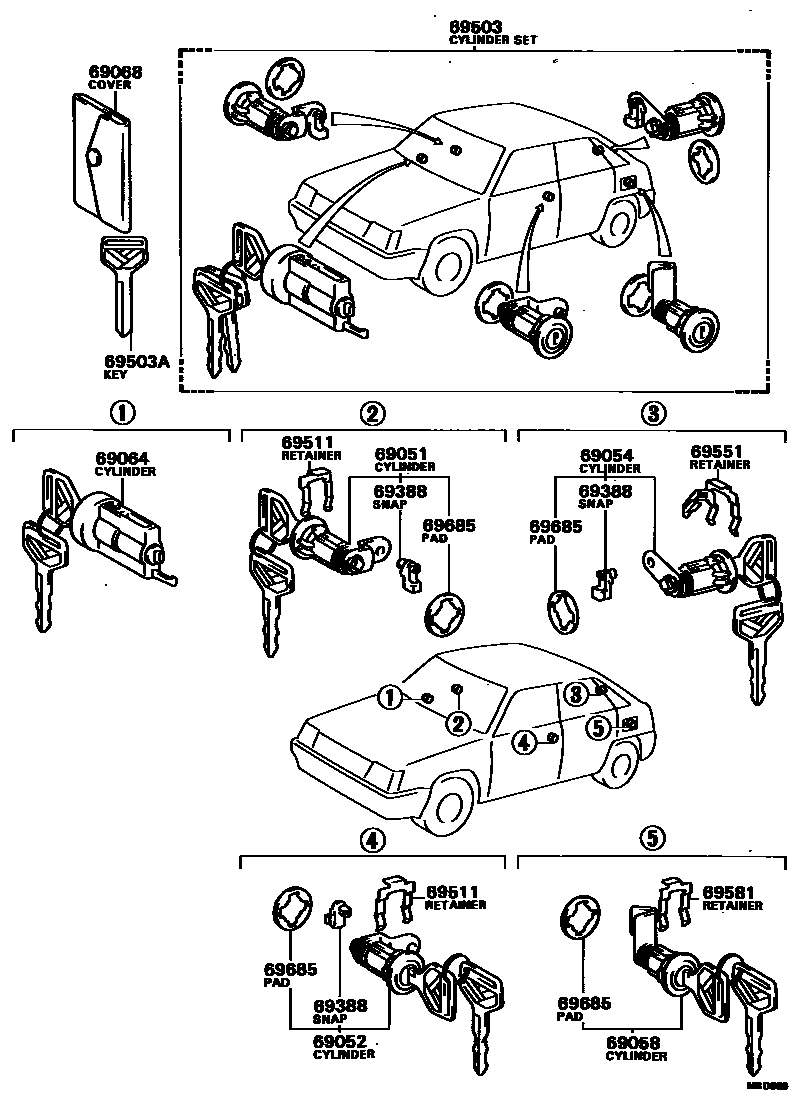

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69054CYLINDER & KEY SET, BACK DOOR LOCK
69058CYLINDER & KEY SET, FUEL FILLER LID
sub69058-16091
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
sub69057-16061
69388SNAP, ROD(FOR DOOR LOCK)
RH,BACK DOOR
LH
69503CYLINDER SET, LOCK
69503AKEY, BLANK
69511RETAINER, FRONT DOOR LOCK CYLINDER
69551RETAINER, BACK DOOR LOCK CYLINDER
69581RETAINER, FUEL FILLER LID CYLINDER
13 parts on this diagram · 1 diagram in section
