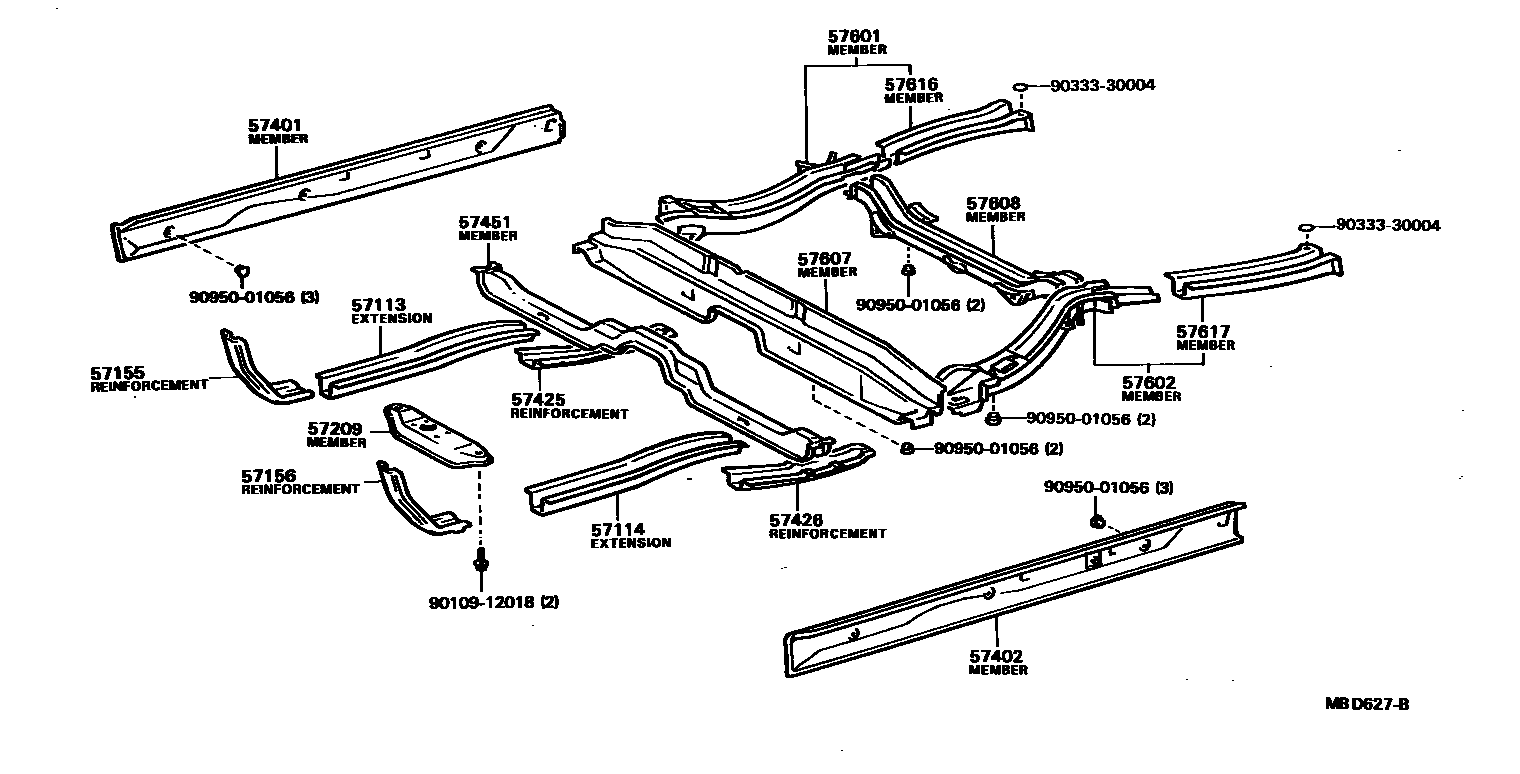

FLOOR SIDE MEMBER
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57451MEMBER, FRONT FLOOR CROSS
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57616MEMBER, REAR FLOOR SIDE, REAR RH
57617MEMBER, REAR FLOOR SIDE, REAR LH
9010912018
main90109-12018
9033330004
main90333-30004
9095001056
main90950-01056
19 parts on this diagram · 1 diagram in section
