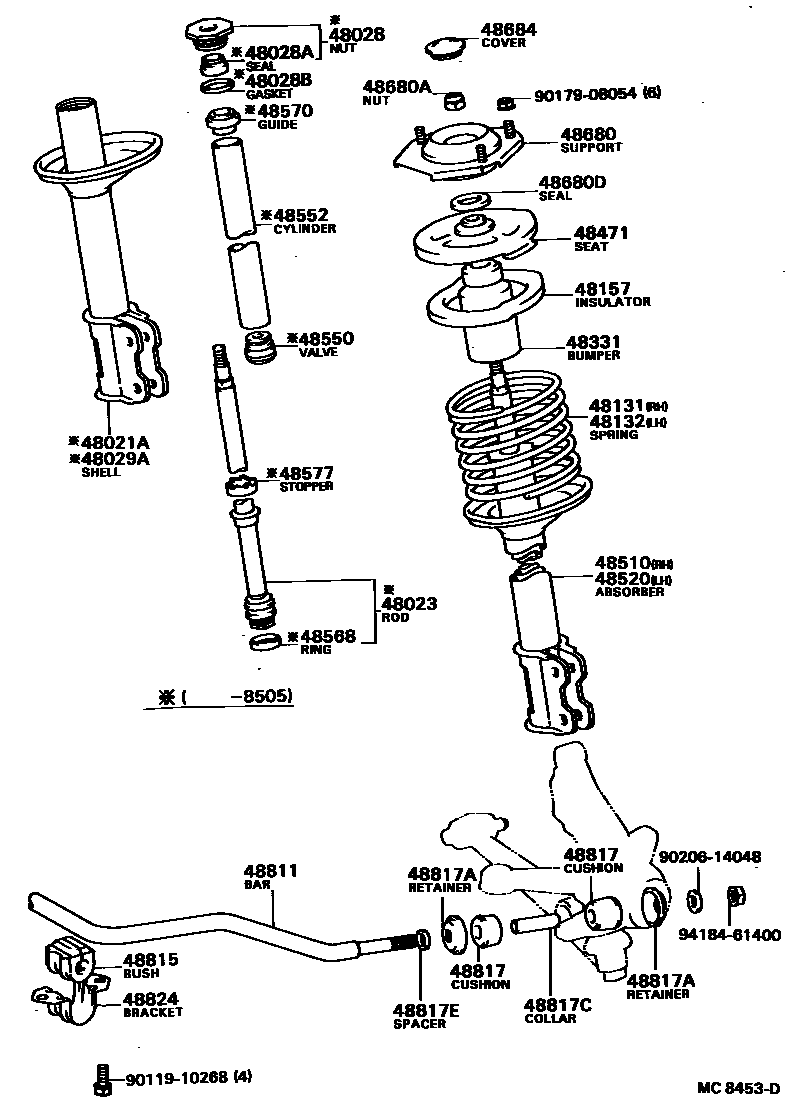

FRONT SPRING & SHOCK ABSORBER

48021ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, RH

main48021-16030iAL2#198205-198505

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-16030iAL2#..CTD,DLX,GL,SE198205-198408

sub48023-16160

main48023-16040iAL21..SR198205-198505

main48023-16160iAL20198408-198505

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-10020iAL2#198205-198408

sub48028-17010

main48028-17010iAL2#198408-198505

sub90316-20004

sub48035-17010

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-20004iAL2#198408-198505

main90316-20006iAL2#198205-198408

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-36002iAL2#198205-198408

sub90430-37003

main90430-37003iAL2#198408-198505

48029ASHELL SUB-ASSY, FRONT SHOCK ABSORBER, LH

main48021-16030iAL2#198205-198505

48131SPRING, FRONT COIL, RH

main48131-16150iAL2#..CTD,DLX,GL,SE198205-198408

main48131-16170iAL21..3AHU198205-198604

main48131-16230iAL21198408-198505

sub48131-16290

main48131-16241iAL21198505

sub48131-16242

48132SPRING, FRONT COIL, LH

main48131-16150iAL2#..CTD,DLX,GL,SE198205-198408

main48131-16170iAL21..3AHU198205-198604

main48131-16230iAL21198408-198505

sub48131-16290

main48131-16241iAL21198505-198604

sub48131-16242

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-16020iAL2#198205-198604

48331BUMPER, FRONT SPRING, NO.1

main48331-16030iAL2#198205-198604

48471SEAT, FRONT SPRING, UPPER

main48044-16020iAL2#198205-198604

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-16040iAL2#..CTD,DLX,GL,SE198205-198408

sub48510-16120

main48510-16050iAL21..3AHU198205-198408

sub48510-16130

main48510-16120iAL20198408-198505

main48510-16121iAL20198505-198604

main48510-16130iAL21198408-198505

sub48510-16131

main48510-16131iAL21198505-198604

sub48510-16270

main48510-16230iAL20198604-198604

sub48510-16680

main48510-16270iAL21198604-198604

sub48510-16230

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-16040iAL2#..CTD,DLX,GL,SE198205-198408

sub48510-16120

main48510-16050iAL21..3AHU198205-198408

sub48510-16130

main48510-16120iAL20198408-198505

main48510-16121iAL20198505-198604

main48510-16130iAL21198408-198505

sub48510-16131

main48510-16131iAL21198505-198604

sub48510-16270

main48510-16230iAL20198604-198604

sub48510-16680

main48510-16270iAL21198604-198604

sub48510-16230

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-12019iAL2#198205-198408

main48550-16010iAL2#..CTD,DLX,GL,SE198205-198402

main48550-16020iAL20198408-198505

main48550-16030iAL21198408-198505

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-16030iAL2#198205-198505

48568RING, SHOCK ABSORBER PISTON

main48568-12020iAL2#198205-198306

main48568-12021iAL2#198306-198505

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-10020iAL2#198205-198505

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-10010iAL2#198205-198208

main48577-16010iAL2#198208-198505

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-16040iAL2#198205-198604

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAL2#198205-198604

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAL2#198205-198604

48684COVER, BEARING DUST

main48684-32010iAL2#198205-198604

48811BAR, STABILIZER, FRONT

main48811-16090iAL2#198205-198408

main48811-16130iAL2#198408-198604

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-16090iAL2#198205-198408

main48815-16140iAL2#198408-198604

48817CUSHION, FRONT STABILIZER

main48674-16030iAL2#198205-198604

FR

main48675-16040iAL2#198205-198408

RR

sub48675-16041

main48675-16041iAL2#198408-198604

RR

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02056iAL2#198205-198604

48817CCOLLAR(FOR STABILIZER BAR)

main90387-14007iAL2#198205-198604

48817ESPACER(FOR STABILIZER BAR)

main90560-14005iAL2#198205-198604

48824BRACKET, STABILIZER, FRONT

main48824-16020iAL2#198205-198604

9011910268

main90119-10268

9017908054

main90179-08054

9020614048

main90206-14048

9418461400

main94184-61400

33 parts on this diagram · 1 diagram in section
