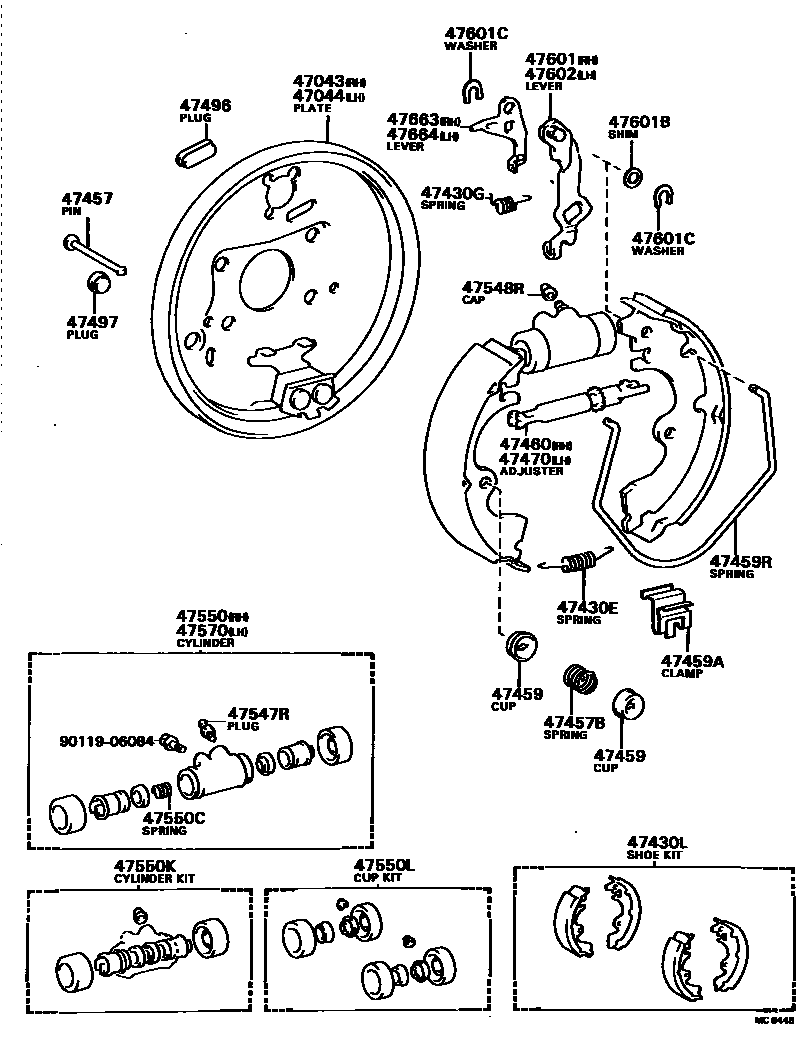

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-16020iAL2#198205-198604

main47043-16040iAL2#198604-198604

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-16020iAL2#198205-198604

main47044-16040iAL2#198604-198604

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18014×2iAL2#198205-198604

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12014×2iAL2#198205-198604

47430LSHOE KIT, REAR BRAKE

main04495-16020iAL2#198205-198604

main04497-16020iAL2#198205-198604

REBUILT

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iAL2#198205-198604

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-16062×4iAL2#198205-198604

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030×8iAL2#198205-198604

47459ACLAMP(FOR SHOE RETURN SPRING)

main90468-05041×2iAL2#198205-198408

main90468-05063×2iAL2#198408-198604

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-16020×2iAL2#198205-198604

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-16020iAL2#198205-198604

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-16020iAL2#198205-198604

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iAL2#198205-198604

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47492-32010×2iAL2#198205-198604

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iAL2#198205-198604

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iAL2#198205-198604

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19155iAL2#198205-198604

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006×2iAL2#198205-198604

47550KCYLINDER KIT, REAR WHEEL

main04474-16020×2iAL2#198205-198604

47550LCUP KIT, REAR WHEEL CYLINDER

main04906-16020iAL2#198205-198604

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-19035iAL2#198205-198604

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-16010iAL2#198205-198604

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iAL2#198205-198604

main90564-08151×2iAL2#198205-198604

main90564-08152×2iAL2#198205-198604

main90564-08172×2iAL2#198205-198604

main90564-08173×2iAL2#198205-198604

main90564-08174×2iAL2#198205-198604

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iAL2#198205-198604

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-16010iAL2#198205-198604

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-16010iAL2#198205-198604

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-16010iAL2#198205-198604

9011906084

main90119-06084

28 parts on this diagram · 1 diagram in section
