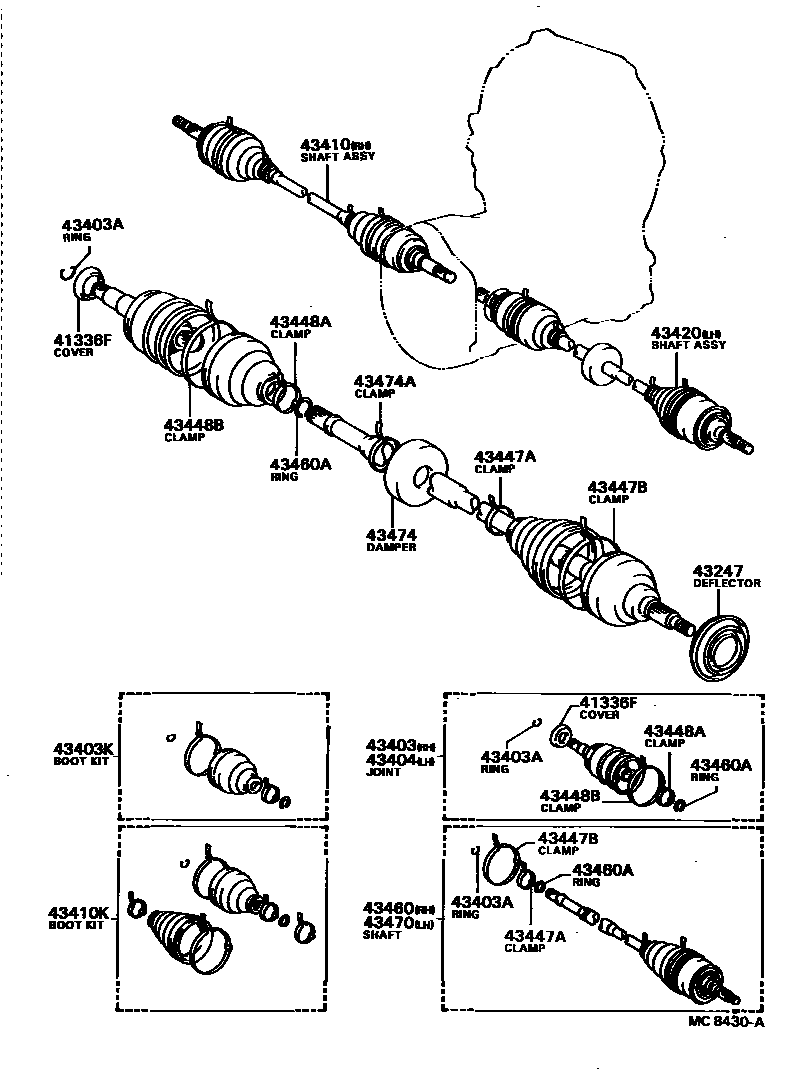

FRONT DRIVE SHAFT

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-16010×2iAL2#198205-198604

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-16020×2iAL2#198205-198604

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19015iAL2#198205-198604

43403ARING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING)

main90521-23001×2iAL2#198205-198604

43403KBOOT KIT, FRONT AXLE INBOARD JOINT SET

main04438-16011×2iAL2#198205-198604

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-19015iAL2#198205-198604

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16040iAL2#198205-198310

main43410-16042iAL2#198310-198604

43410KBOOT KIT, FRONT DRIVE SHAFT

main04438-16022×2iAL2#198205-198310

main04438-16023×2iAL2#198310-198604

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-16040iAL2#198205-198310

main43420-16042iAL2#198310-198604

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90463-04020×2iAL2#198205-198604

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90463-04022×2iAL2#198205-198604

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90463-04020×2iAL2#198205-198604

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90463-04021×2iAL2#198205-198604

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19025iAL2#198205-198310

main43460-19027iAL2#198310-198604

43460ARING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT)

main90520-22001×2iAL2#198205-198604

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-19025iAL2#198205-198310

main43470-19027iAL2#198310-198604

43474DAMPER, DRIVE SHAFT

main43474-16010iAL2#198205-198604

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main90463-04020iAL2#198205-198604

18 parts on this diagram · 1 diagram in section
