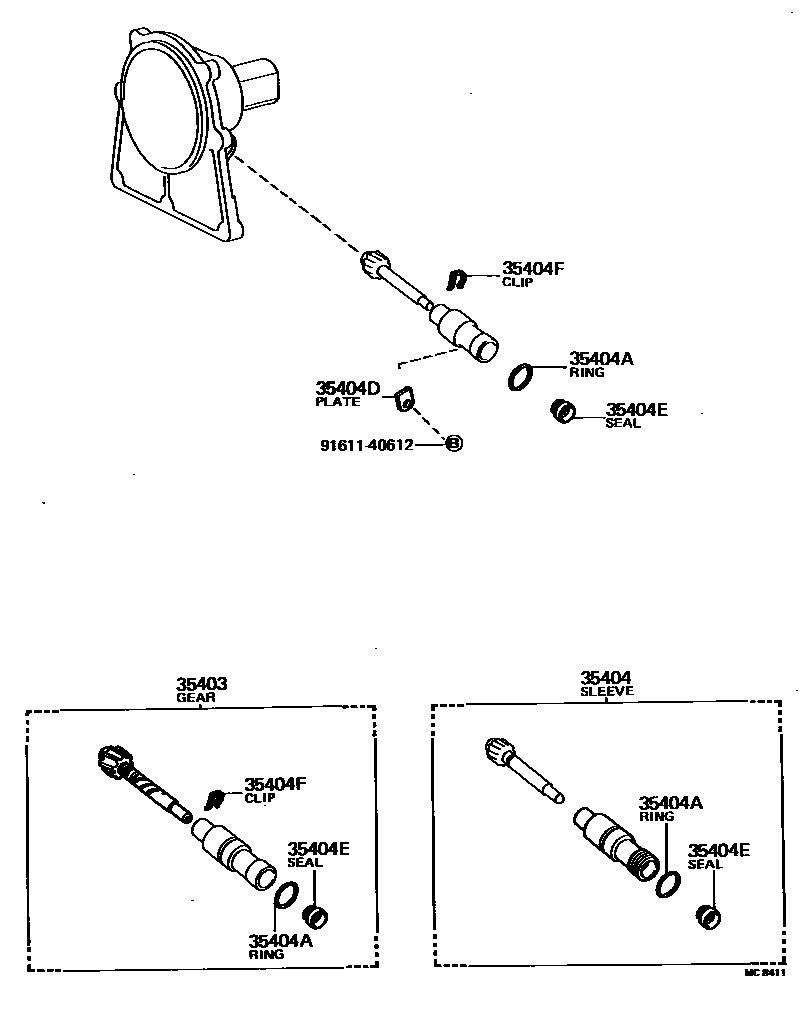

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19105iAL2#..3FC198205-198604

N=19

main33403-19115iAL21..3FC198408-198604

N=20

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-16010iAL2#..3FC198205-198604

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96710-02018iAL2#..3FC198205-198210

sub96711-19018

main96711-24018iAL2#..3FC198210-198604

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iAL2#..3FC198205-198604

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAL2#..3FC198205-198604

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAL2#..3FC198205-198604

9161140612

main91611-40612

7 parts on this diagram · 1 diagram in section
