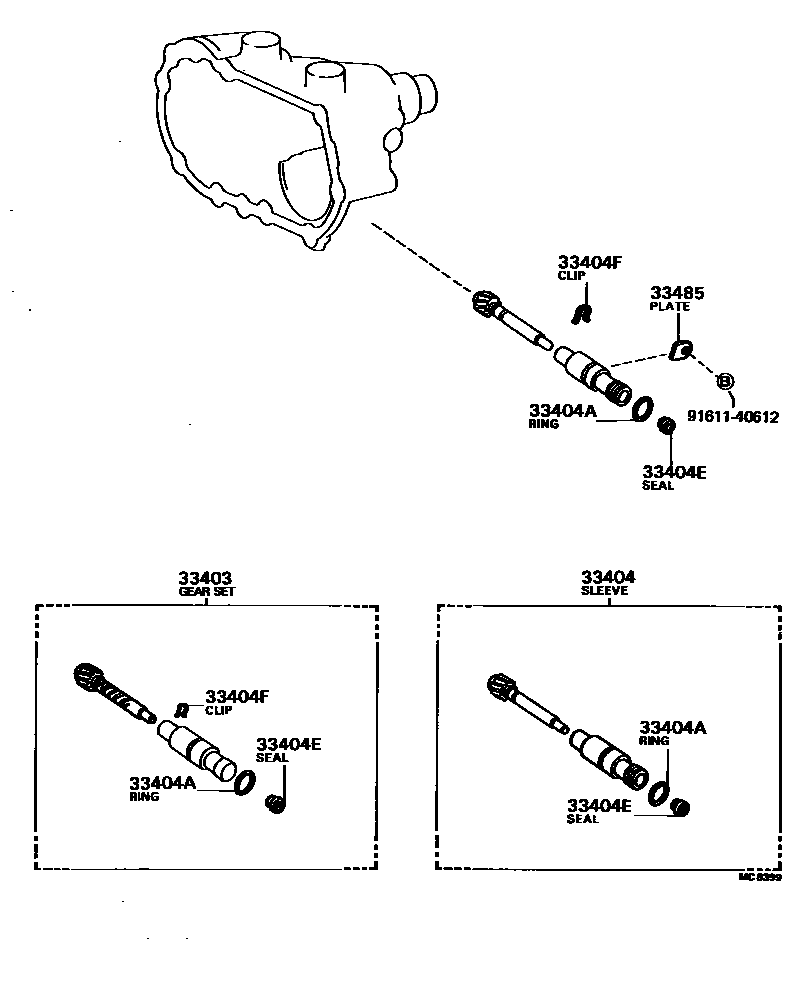

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19105iAL2#..MTM..(CTD,DLX,GL,SE)198205-198604

main33403-19115iAL21..5F..SR198205-198604

N=20,*AXC=Y302

main33403-19265iAL20..4F..DLX198205-198604

N=17,*AXC=Y392

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iAL2#..MTM198205-198604

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96710-02018iAL2#..MTM198205-198210

sub96711-19018

main96711-24018iAL2#..MTM198210-198604

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAL2#..MTM198205-198604

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAL2#..MTM198205-198604

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iAL2#..MTM198205-198604

9161140612

main91611-40612

7 parts on this diagram · 1 diagram in section
