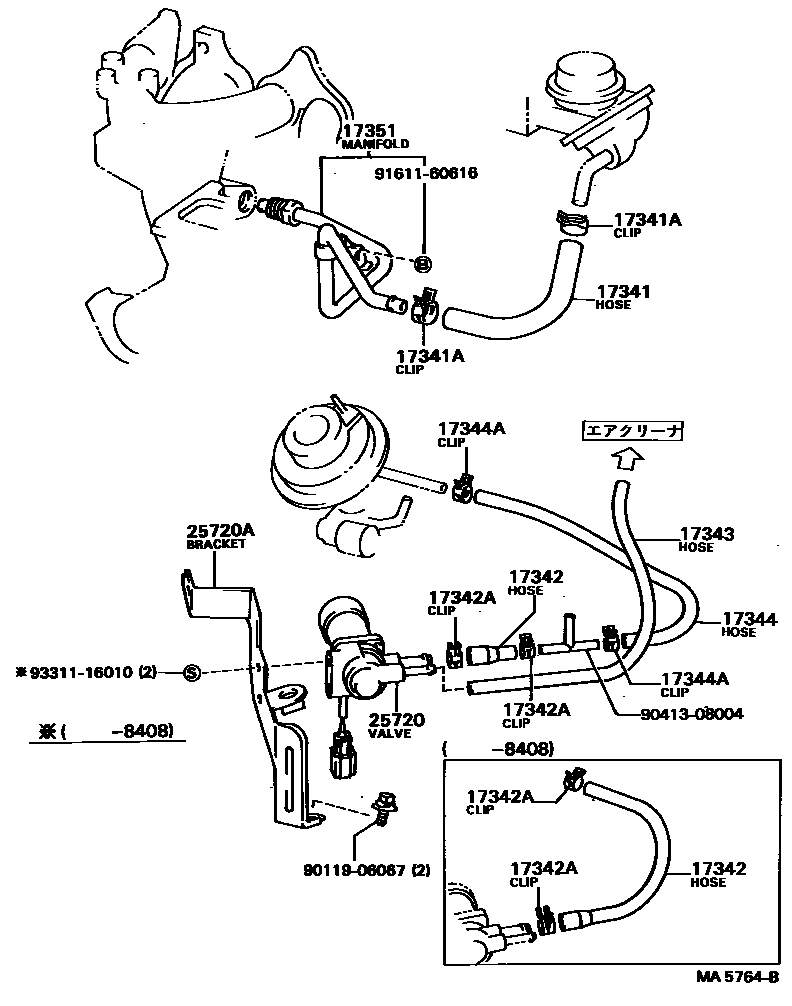

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-15060i2AU,3A#..AL2#198205-198211

sub17341-15061

main17341-15061i2AU,3A#..AL2#198211-198604

main17341-15110i3ASU..AL21198408-198604

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-23003i2AU,3A#..AL2#198205-198604

sub96134-42300

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-15030i2AU,3A#..AL2#198205-198408

main17342-15050i3ASU..AL21198408-198604

main17345-15020i2AU,3AU..AL2#198408-198604

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90467-13007i2AU,3A#..AL2#198205-198307

EGR VALVE SIDE

sub96132-51300

main90467-13027i2AU,3AU..AL2#198307-198604

EGR VALVE SIDE

sub96132-51300

main90467-13027i3ASU..AL21198408-198604

3 WAY SIDE

sub96132-51300

main96132-31000i2AU,3A#..AL2#198205-198604

EAC VALVE SIDE

sub96132-41500

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-15020i3ASU..AL21198408-198604

main17344-15030i2AU,3AU..AL2#198408-198604

main90445-14045i2AU,3A#..AL2#198205-198408

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main90445-14045i2AU,3AU..AL2#198408-198604

main90445-14135i2AU,3AU..AL2#198410-198603

sub90445-14045

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90467-13027i2AU,3AU..AL2#198408-198604

sub96132-51300

17351MANIFOLD, AIR INJECTION

main17306-15030i2AU,3A#..AL2#198205-198604

main17350-15080i3ASU..AL21198408-198604

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25704-15020i2AU,3A#..AL2#198205-198408

sub25704-15050

main25704-15040i3ASU..AL21198408-198604

main25704-15050i2AU,3AU..AL2#198408-198604

25720ABRACKET, ELECTRIC AIR CONTROL VALVE

main25724-15030i2AU,3A#..AL2#198205-198408

sub25724-15040

main25724-15040i2AU,3AU..AL2#198408-198604

9011906067

main90119-06067

9041308004

main90413-08004

9161160616

main91611-60616

9331116010

main93311-16010

14 parts on this diagram · 2 diagrams in section
