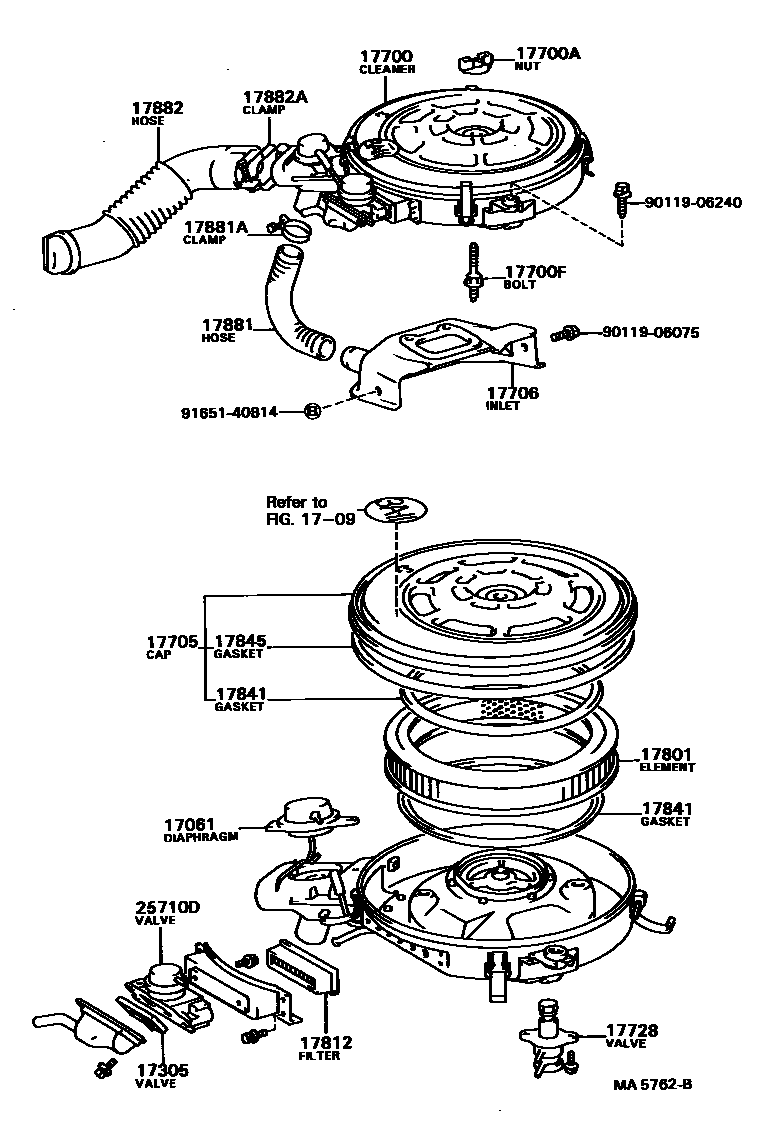

AIR CLEANER

0001 1 0002 1 0004 1

17061DIAPHRAGM SUB-ASSY

main17061-15020i2AU,3AU..AL2#198205-198305

main17061-15030i3AHU..AL21198205-198408

main17061-15040i2AU,3AU..AL2#198305-198408

1709

17305VALVE SUB-ASSY, REED

main17305-15010i3AHU..AL21198205-198408

main17305-15030i2AU,3AU..AL2#198205-198604

17700CLEANER ASSY, AIR

main17700-14050i2AU..AL20198205-198408

main17700-15090i3AU..AL21198205-198408

main17700-15100i3AHU..AL21198205-198408

main17700-15170i2AU,3AU..AL2#198408-198604

main17700-15180i3ASU..AL21198408-198604

17700ANUT, WING(FOR AIR CLEANER)

main90175-06010×2i2AU,3A#..AL2#198205-198408

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06019i2AU,3A#..AL2#198208-198408

L=45

main90116-06036i2AU,3AU..AL2#198408-198604

RR

main90116-06280i3AHU..AL21198208-198408

L=49

17705CAP SUB-ASSY, AIR CLEANER

main17705-15040i2AU,3AU..AL2#198205-198408

main17705-15050i3AHU..AL21198205-198408

main17705-15080i2AU,3AU..AL2#198408-198604

main17705-15090i3ASU..AL21198408-198604

17706INLET SUB-ASSY, AIR CLEANER, NO.2

main17902-15060i2AU,3A#..AL2#198205-198408

main17902-15090i3ASU..AL21198408-198604

17728VALVE, THERMOSTATIC

main17728-13030i3ASU..AL21198408-198604

main17728-15040i2AU,3AU..AL2#198205-198408

main17728-15050i2AU,3AU..AL2#198408-198604

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-15010i2AU,3A#..AL2#198205-198408

main17801-63010i3ASU..AL21198408-198604

17812FILTER, AIR CLEANER, NO.2

main17812-15010i2AU,3AU..AL2#198205-198408

main17812-31010i3AHU..AL21198205-198408

17841GASKET, FILTER ELEMENT

main17841-15010×2i2AU,3A#..AL2#198205-198408

17845GASKET, AIR CLEANER CAP

main17845-15030i2AU,3A#..AL2#198205-198210

main17845-37020i2AU,3A#..AL2#198210-198408

*G,L=1060

main17845-61011i2AU,3AU..AL2#198408-198604

*G,L=1060

17881HOSE, AIR CLEANER, NO.1

main17881-16110i2AU,3A#..AL2#198505-198604

main17881-34110i3ASU..AL21198408-198502

main17881-63010i2AU,3AU..AL2#198408-198502

main17881-74040i2AU,3A#..AL2#198502-198505

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10460×2i2AU,3A#..AL2#198205-198604

17882HOSE, AIR CLEANER, NO.2

main17881-15050i2AU,3A#..AL2#198205-198408

main17881-16070i3ASU..AL21198408-198604

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01005i2AU,3A#..AL2#198205-198604

25710DVALVE ASSY, AIR SWITCHING

main25710-15050i3AHU..AL21198205-198408

main25710-15070i2AU,3AU..AL2#198408-198604

main25710-63010i2AU,3AU..AL2#198205-198408

9011906075

main90119-06075

9011906240

main90119-06240

9165140814

main91651-40814

21 parts on this diagram · 3 diagrams in section
