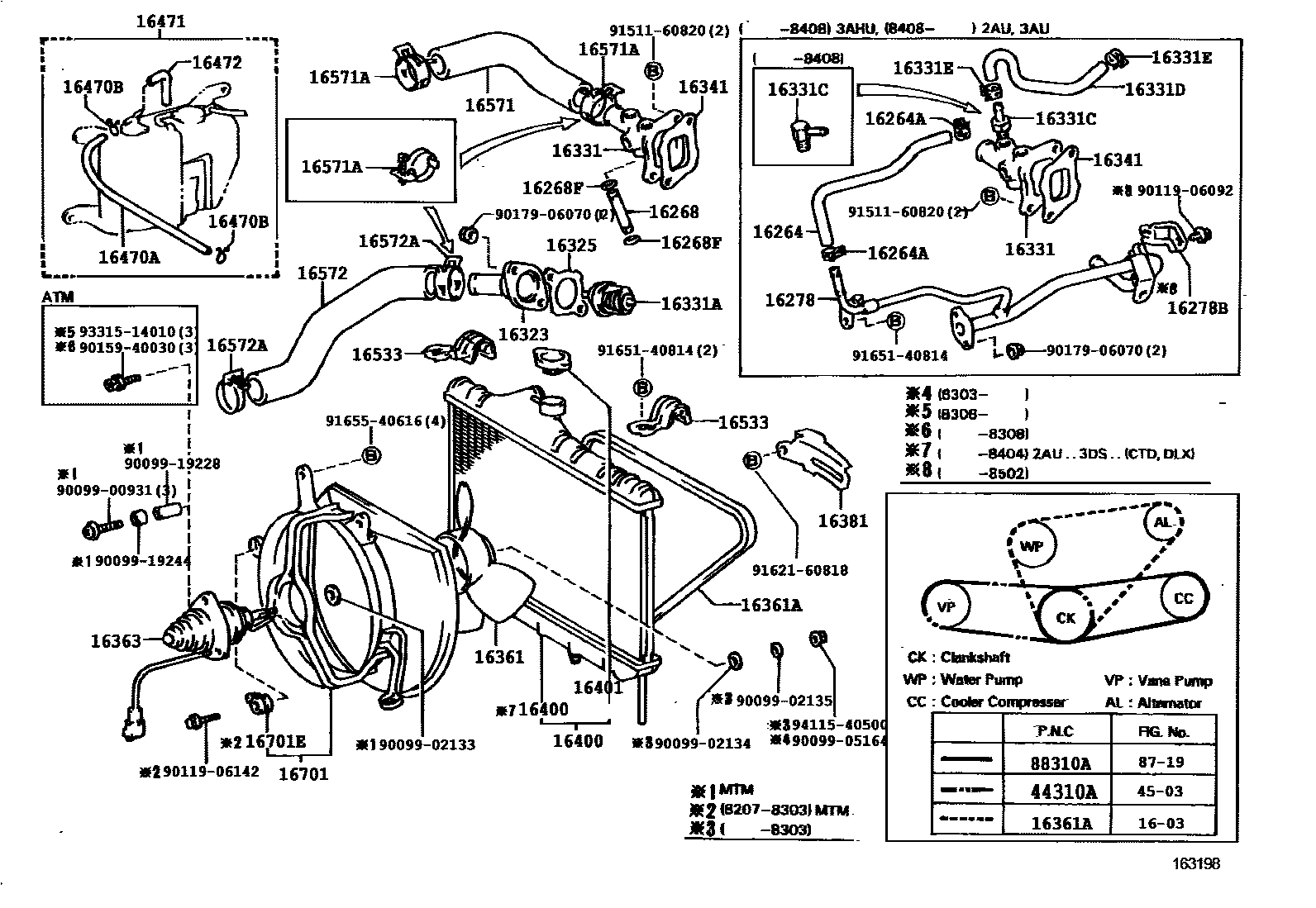

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1603

16264HOSE, WATER BY-PASS, NO.2

main16264-15010i3AHU..AL21198205-198408

main16264-15040i2AU,3AU..AL2#198211-198408

main16264-15050i2AU,3AU..AL2#198408-198604

main16264-15060i3ASU..AL21198408-198604

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i2AU,3AU..AL2#198211-198604

sub96135-51100

main90467-13007i3AHU..AL21198205-198307

sub96132-51300

main90467-13027i3AHU..AL21198307-198408

sub96132-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-15010i2AU,3A#..AL2#198205-198503

sub16268-15011

main16268-15011i2AU,3A#..AL2#198503-198604

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013i2AU,3A#..AL2#198205-198604

16278PIPE, WATER BY-PASS, NO.2

main16278-15010i3AHU..AL21198205-198408

main16278-15040i2AU,3AU..AL2#198211-198408

main16278-15050i3ASU..AL21198408-198604

main16278-15070i2AU,3AU..AL2#198408-198604

16278BBRACKET, WATER BY-PASS PIPE

main87263-16010i3AHU..AL21198301-198604

16323HOUSING, WATER INLET

main16323-15020i2AU,3A#..AL2#198205-198604

16325GASKET, WATER INLET HOUSING, NO.1

main16325-70021i2AU,3A#..AL2#198205-198604

16331OUTLET, WATER

main16331-15040i2AU,3A#..AL2#198205-198604

main16331-15050i2AU,3AU..AL2#198205-198408

16331ATHERMOSTAT

main90916-03046i2AU,3A#..AL2#198205-198604

16331CELBOW(FOR WATER OUTLET)

main90404-53056i2AU,3A#..AL2#198408-198604

main90407-53003i3AHU..AL21198205-198408

16331DHOSE, WATER(FOR WATER OUTLET TO CARBURETOR)

main16267-15010i2AU,3AU..AL2#198408-198604

main99553-10140i3AHU..AL21198205-198308

sub99555-10200

main99555-00180i3ASU..AL21198408-198604

sub99555-00200

main99555-10140i3AHU..AL21198308-198408

sub99555-10200

16331ECLIP(FOR WATER OUTLET TO CARBURETOR HOSE)

main90467-11009i2AU,3A#..AL2#198408-198604

sub96135-51100

main90467-13007i3AHU..AL21198205-198307

sub96132-51300

main90467-13027i3AHU..AL21198307-198408

sub96132-51300

16341GASKET, WATER OUTLET

main16341-15011i2AU,3A#..AL2#198205-198604

sub16341-15012

16361FAN

main16361-15030i2AU,3A#..AL2#..MTM198205-198303

sub16361-15031

main16361-15031i2AU,3A#..AL2#..MTM198303-198604

main16361-15040i2AU,3AU..AL2#..3FC198205-198303

sub16361-15041

main16361-15041i2AU,3AU..AL2#..3FC198303-198308

120W

main16361-15060i2AU,3AU..AL2#..3FC198308-198604

80W

16361ABELT, V(FOR FAN & ALTERNATOR)

main99321-50985i2AU,3A#..AL2#198205-198604

main99321-51070i2AU,3A#..AL2#198205-198604

W/COOLER

16363MOTOR, COOLING FAN

main16363-15070i2AU,3A#..AL2#..MTM198205-198604

main16363-15080i2AU,3AU..AL2#..3FC198205-198308

120W

main16363-15100i2AU,3AU..AL2#..3FC198308-198604

80W

16381BAR, FAN BELT ADJUSTING

main16381-15030i2AU,3A#..AL2#198205-198604

main88437-16040i2AU,3A#..AL2#198205-198604

W/COOLER

16400RADIATOR ASSY

main16400-15120i2AU,3ASU..AL2#..MTM198205-198604

sub16400-15130

main16400-15130i2AU,3AU..AL2#..3FC198205-198604

main16400-15140i2AU..AL20..3DS..4F..(CTD,DLX)198206-198408

sub16400-15120

main16400-15150i2AU..AL20..3FC..DLX198206-198408

sub16400-15130

main16410-15140i2AU..AL20..3DS..4F..(CTD,DLX)198308-198404

sub16400-15140

main16410-15150i2AU..AL20..3FC..DLX198308-198404

sub16400-15150

16401CAP SUB-ASSY, RADIATOR

main16401-63010i2AU,3A#..AL2#198205-198604

16470TANK ASSY, RADIATOR RESERVE

main16470-15030i3ASU..AL21198408-198604

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-15030i3ASU..AL21198604-198604

*H,L=156

main90099-33091i2AU,3AU..AL2#..DLX,GL,SR198408-198604

W/RR WIPER

sub90099-33370

main90099-33392i2AU,3A#..AL2#198208-198408

W/RR WIPER

sub90099-33370

main90445-12043i2AU..AL20;3AU..AL21..DLX198205-198604

sub90445-12078

main90445-12078i3ASU..AL21198408-198604

main90445-12905i2AU,3A#..AL2#198205-198208

sub90445-12078

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2AU,3A#..AL2#198205-198604

16471CAP SUB-ASSY, RESERVE TANK

main16405-15010i2AU..AL20;3AU..AL21..DLX198205-198604

main16405-15020i2AU,3A#..AL2#198205-198604

W/RR WIPER

main16405-15040i3ASU..AL21198408-198604

16472HOSE, BREATHER

main85338-14030i3ASU..AL21198408-198604

main85338-16010i2AU,3A#..AL2#198205-198208

sub85338-12010

main85338-16020i2AU,3AU..AL2#198208-198604

sub85338-12010

16533SUPPORT, RADIATOR, UPPER

main16505-15010i2AU,3A#..AL2#198205-198502

RH

sub16505-15040

main16505-15040i2AU,3A#..AL2#198502-198604

RH

main16506-15010i2AU,3A#..AL2#198205-198502

LH

sub16506-15030

main16506-15030i2AU,3A#..AL2#198502-198604

LH

16571HOSE, RADIATOR, INLET

main16571-15081i2AU,3A#..AL2#198205-198408

main16571-15082i2AU,3A#..AL2#198408-198604

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34001i3ASU..AL21198205-198604

RADIATOR SIDE

sub90467-33003

main90467-34001i3ASU..AL21198408-198411

sub90467-33003

main96111-10400i2AU,3AU..AL2#198408-198604

WATER INLET SIDE

main96111-10400i3AHU..AL21198205-198408

WATER OUTLET SIDE

16572HOSE, RADIATOR, OUTLET

main16572-15111i3AU..AL21..GL,SE198205-198301

W/PS

main16572-15112i2AU,3AU..AL2#..GL,SE198301-198604

W/PS

main16572-15120i2AU,3A#..AL2#198205-198604

main16572-15180i3ASU..AL21198408-198604

W/PS

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34001i2AU,3A#..AL2#198205-198208

WATER INLET SIDE

sub90467-33003

main96111-10400i2AU,3A#..AL2#198205-198208

RADIATOR SIDE

main96111-10400i2AU,3A#..AL2#198208-198604

16701SHROUD SUB-ASSY, FAN

main16711-15080i2AU,3A#..AL2#..MTM198205-198303

sub16711-15081

main16711-15081i2AU,3A#..AL2#..MTM198303-198604

main16711-15090i2AU,3AU..AL2#..3FC198205-198308

120W

main16711-15170i2AU,3AU..AL2#..3FC198308-198604

80W

16701EBUSH(FOR FAN SHROUD)

main90385-12001i2AU,3A#..AL2#..MTM198207-198303

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-50985iAL2#198205-198604

9009900931

main90099-00931

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009905164

main90099-05164

9009919228

main90099-19228

9009919244

main90099-19244

9011906092

main90119-06092

9011906142

main90119-06142

9015940030

main90159-40030

9017906070

main90179-06070

9151160820

main91511-60820

9162160818

main91621-60818

9165140814

main91651-40814

9165540616

main91655-40616

9331514010

main93315-14010

9411540500

main94115-40500

53 parts on this diagram · 4 diagrams in section
