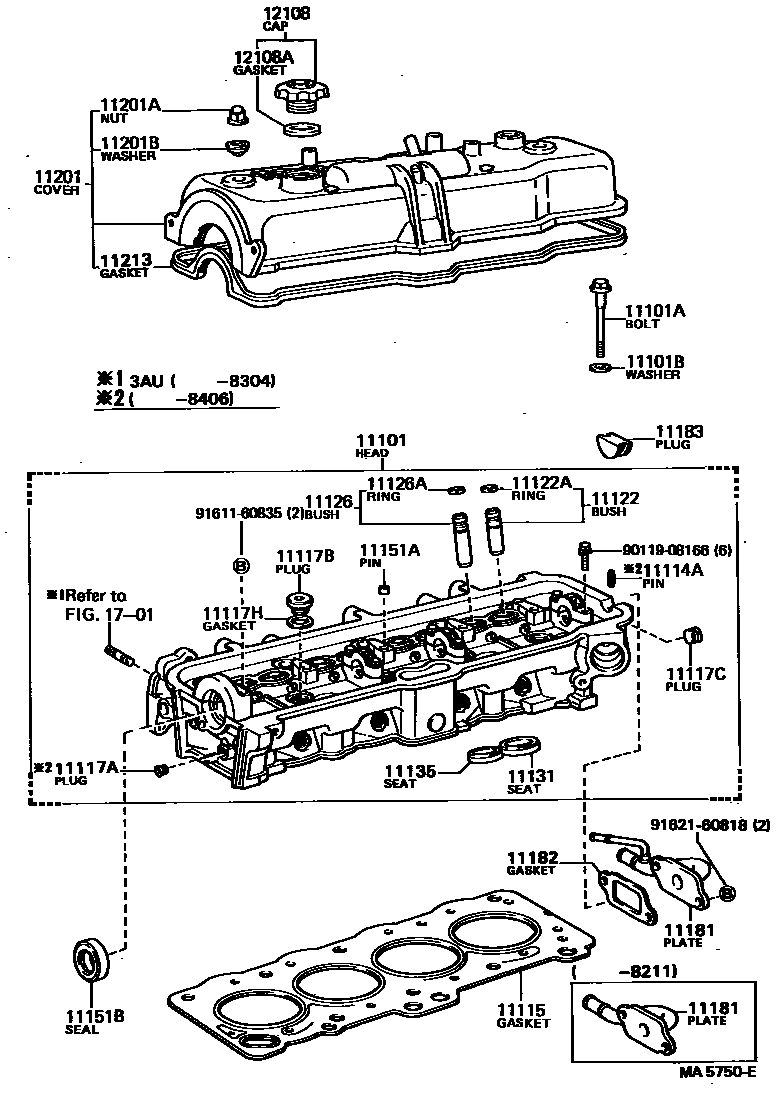

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-14020i2AU,3AHU..AL2#198205-198304

sub11101-14021

sub25706-15111

main11101-14021i2AU,3AHU..AL2#198304-198408

sub11101-15070

main11101-15021i3AU..AL21198304-198408

sub11101-15031

main11101-15040i2AU,3AU..AL2#198408-198604

main11101-15060i3ASU..AL21198408-198604

main11101-19126i3AU..AL21198205-198304

sub11101-15020

11101ABOLT(FOR CYLINDER HEAD SET)

main90109-10025i2AU,3A#..AL2#198205-198604

*10-1.25PX97.5-22

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10344i2AU,3A#..AL2#198205-198604

11114APIN, STRAIGHT

main90254-03003i2AU,3A#..AL2#198205-198406

L=8,OD=3.2

11115GASKET, CYLINDER HEAD

main11115-14031i2AU..AL20198205-198604

main11115-15060i3A#..AL21198205-198604

sub11115-15061

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90344-51002i2AU,3A#..AL2#198205-198406

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-20002i2AU,3A#..AL2#198205-198604

11117CPLUG, W/HEAD TAPER SCREW, NO.3

main90344-54002i2AU,3A#..AL2#198205-198604

11117HGASKET(FOR WATER HOLE)

main90430-20004i2AU,3A#..AL2#198205-198604

11122BUSH, INTAKE VALVE GUIDE

main11122-15011i2AU,3A#..AL2#198602-198604

main11122-15020i2AU,3A#..AL2#198205-198602

main11123-15011i2AU,3A#..AL2#198602-198604

main11123-15020i2AU,3A#..AL2#198205-198602

11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

main90520-10001i2AU,3A#..AL2#198205-198604

11126BUSH, EXHAUST VALVE GUIDE

main11126-15011i2AU,3A#..AL2#198602-198604

main11126-15020i2AU,3A#..AL2#198205-198602

main11127-15011i2AU,3A#..AL2#198602-198604

main11127-15020i2AU,3A#..AL2#198205-198602

11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

main90520-10001i2AU,3A#..AL2#198205-198602

11131SEAT, INTAKE VALVE

main11131-15010i2AU,3A#..AL2#198205-198604

sub11131-15020

main11132-15010i2AU,3A#..AL2#198205-198604

sub11132-15020

11135SEAT, EXHAUST VALVE

main11135-15020i2AU,3A#..AL2#198205-198604

sub11135-15021

main11136-15020i2AU,3A#..AL2#198205-198604

sub11136-15021

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11021i2AU,3A#..AL2#198205-198604

11151BSEAL, OIL(FOR CAMSHAFT SETTING)

main90311-35003i2AU,3A#..AL2#198205-198308

sub90311-35008

main90311-35013i2AU,3A#..AL2#198308-198604

sub90311-35022

11181PLATE, CYLINDER HEAD, REAR

main11181-15020i2AU,3A#..AL2#198205-198604

main11181-15060i2AU,3AU..AL2#198211-198410

main11181-15080i3ASU..AL21198408-198604

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-15011i2AU,3A#..AL2#198205-198604

sub11182-15012

11183PLUG, SEMICIRCULAR

main11183-15010i2AU,3A#..AL2#198205-198604

11201COVER SUB-ASSY, CYLINDER HEAD

main11210-15040i2AU,3A#..AL2#198408-198604

main11210-19025i2AU,3A#..AL2#198205-198408

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i2AU,3A#..AL2#198205-198604

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-09001i2AU,3A#..AL2#198205-198604

sub90210-09019

11213GASKET, CYLINDER HEAD COVER

main11213-15020i2AU,3A#..AL2#198205-198408

main11213-15040i2AU,3A#..AL2#198408-198604

12108CAP SUB-ASSY, OIL FILLER

main12180-13010i2AU,3A#..AL2#198205-198303

main12180-70010i2AU,3A#..AL2#198303-198604

sub12108-78010

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i2AU,3A#..AL2#198205-198604

1701

9011908166

main90119-08166

9161160835

main91611-60835

9162160818

main91621-60818

30 parts on this diagram · 2 diagrams in section
