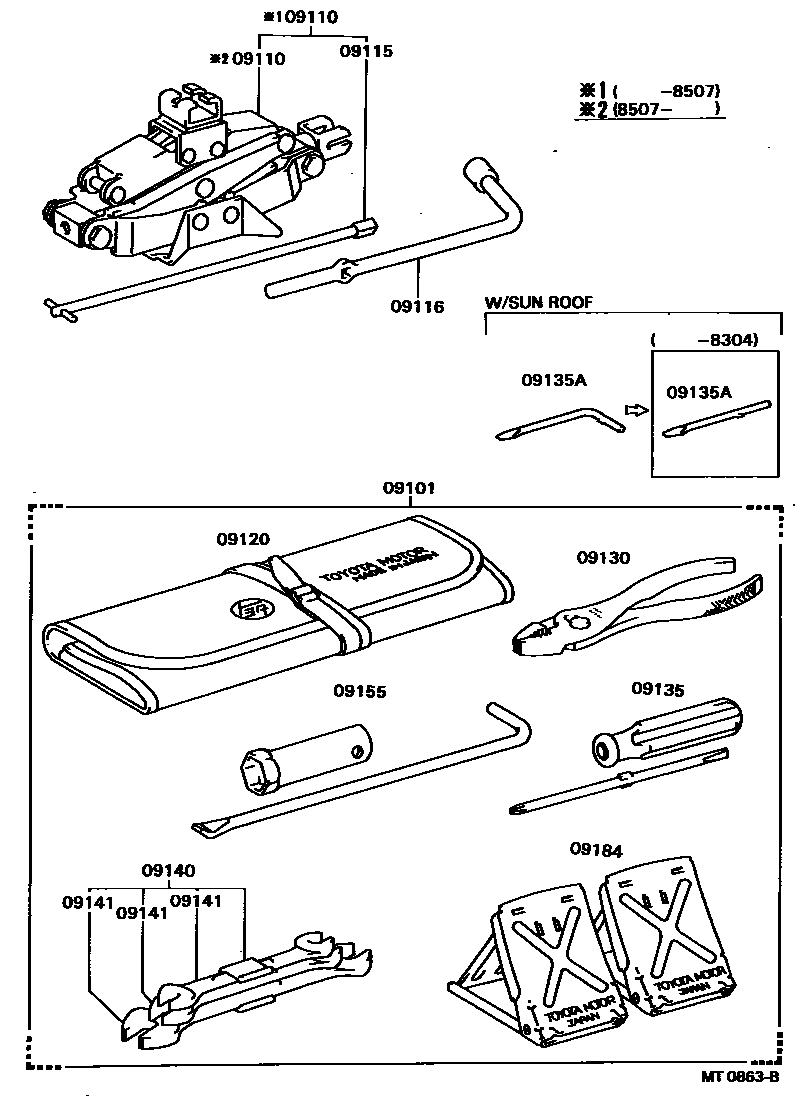

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-12074iAL2#198205-198604

09110JACK ASSY

main09111-12070iAL2#198507-198604

sub09111-22H00

main09118-12020iAL2#198205-198212

sub09118-12021

main09118-12021iAL2#198212-198507

sub09118-12040

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020iAL2#198205-198312

main09115-32010iAL2#198312-198604

09116LEVER, JACK HANDLE

main09116-16010iAL2#198205-198604

09120BAG, TOOL

main09120-12011iAL2#198205-198604

09130PLIERS

main99913-11500iAL2#198205-198604

09135DRIVER, SCREW

main99915-10700iAL2#198205-198604

09135ABIT, SCREW DRIVER

main09135-00011iAL21..SE,SR198205-198304

W/SUN ROOF

sub09135-00012

main09135-00012iAL21..SE,SR198304-198604

W/SUN ROOF

09140SPANNER SET

main09140-12011iAL2#198205-198604

09141SPANNER

main99914-10810iAL2#198205-198604

main99914-11012iAL2#198205-198604

main99914-11417iAL2#198205-198604

09155WRENCH, SPARK PLUG

main09155-44020iAL2#198205-198604

09184STOPPER, WHEEL

main09184-00010iAL2#198205-198604

12 parts on this diagram · 1 diagram in section
