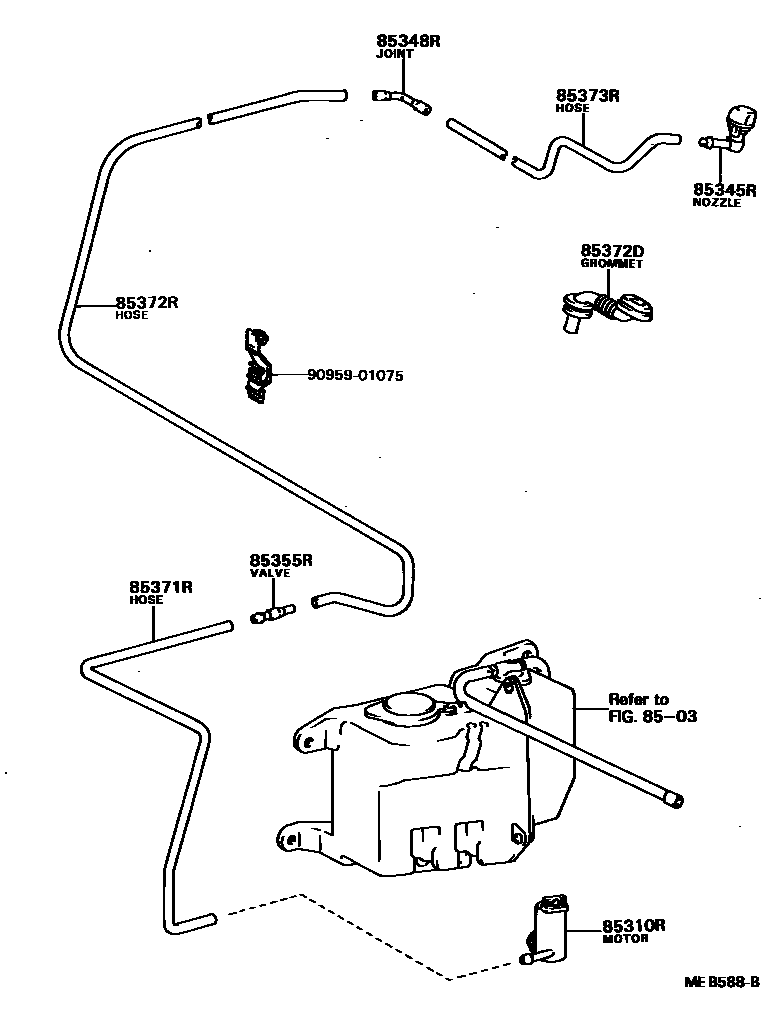

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85310RMOTOR ASSY, REAR WASHER

main85310-16030iAL2#..3DS,5DS198205-198408

main85310-22080iAL20,21..3DS,5DS198408-198605

85345RNOZZLE, REAR WASHER

main85035-16040iAL2#..5DS198205-198301

main85341-16080iAL20,21..3DS,5DS198301-198605

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-20080iAL20,21..3DS,5DS198205-198605

85355RVALVE, REAR WASHER HOSE

main85031-12250iAL20,21..3DS,5DS198510-198605

main85031-14080iAL20,21..3DS,5DS198205-198510

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iAL2#..5DS198205-198208

main90446-06013iAL20,21..(3DS,5DS)..(DX,EX,GX,VC,VE,VL); AL21..3FC..(SX,VS)198408-198605

main90446-07001iAL21..3ASU198408-198412

85372DGROMMET, REAR WASHER HOSE

main85372-14020iAL20,21..3DS,5DS198205-198605

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33053iAL20,21..3DS,5DS198311-198605

L=3120

main90099-33391iAL2#..3DS,5DS198205-198311

L=3200

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAL20,21..3DS,5DS198205-198605

9095901075

main90959-01075

10 parts on this diagram · 1 diagram in section
