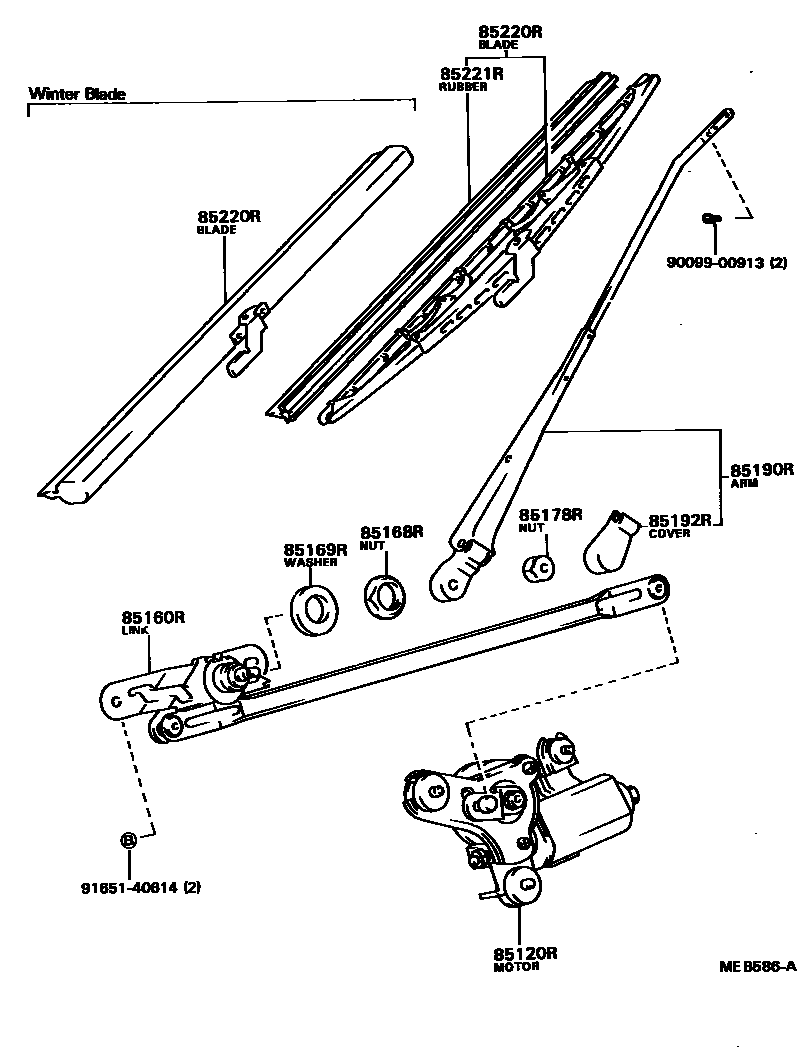

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-16140iAL20,21..3DS,5DS198205-198605

85160RLINK ASSY, REAR WIPER

main85160-16150iAL20,21..3DS,5DS198205-198605

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iAL20,21..3DS,5DS198205-198605

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-16150iAL20,21..3DS,5DS198205-198605

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06070iAL2#..5DS198205-198308

sub90179-06159

main90179-06158iAL20,21..3DS,5DS198308-198605

85190RARM ASSY, REAR WIPER

main85190-16110iAL2#..3DS,5DS198205-198404

sub85190-16111

main85190-16111iAL20,21..3DS,5DS198404-198605

85192RCOVER, REAR WIPER ARM

main85192-14020iAL20,21..3DS,5DS198205-198605

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-12620iAL20,21..3DS,5DS198604-198605

WINTER BLADE

sub85291-12010

main85220-16060iAL2#..5DS198205-198208

sub85220-20380

main85220-16440iAL20,21..3DS,5DS198408-198605

sub85220-16441

main85220-20380iAL2#..3DS,5DS198208-198408

sub85220-12601

main85220-24040iAL20,21..3DS,5DS198408-198604

WINTER BLADE

sub85291-24010

main85220-30110iAL2#..3DS,5DS198205-198408

WINTER BLADE

sub85220-20080

85221RBLADE, REAR WIPER

main85221-16080iAL20,21..3DS,5DS198408-198605

main85221-91C01iAL2#..3DS,5DS198205-198408

sub85214-12H90

9009900913

main90099-00913

9165140614

main91651-40614

11 parts on this diagram · 1 diagram in section
