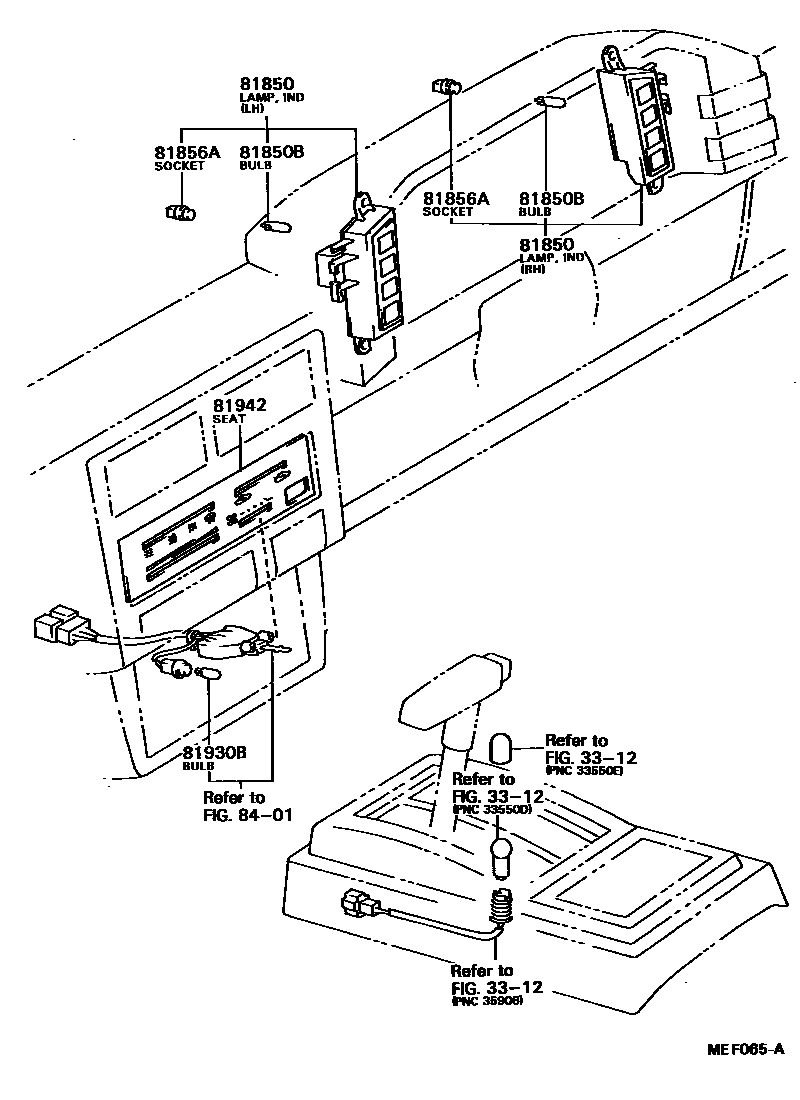

INDICATOR

3312

81850LAMP ASSY, INDICATOR

main81850-16010iAL2#..DX,GX,VC,VL198205-198910

LH

main81850-16020iAL2#198205-198910

RH

main81850-16040iAL21..EX,SX,VE,VS198205-198408

LH

main81850-16170iAL21,25..EX,SX,VE,VS198408-198910

LH

81850BBULB, INDICATOR LAMP

main90981-11018iAL2#198205-198910

81856ASOCKET, INDICATOR LAMP

main83101-14040iAL2#198205-198910

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11014iAL2#198205-198910

81942SHEET, HEATER CONTROL NAME

main81942-16020iAL2#198205-198408

sub81942-16021

main81942-16021iAL2#..DX,EX,GX,VC,VE,VL198408-198605

sub81942-16022

main81942-16022iAL2#..DX,EX,GX,VC,VE,VL198605-198910

main81942-16040iAL21..EX,SX,VE,VS198205-198408

W/AUTOMATIC AIR CONDITIONER

sub81942-16041

main81942-16041iAL21,25..EX,VE198408-198605

W/AUTOMATIC AIR CONDITIONER

sub81942-16042

main81942-16042iAL21,25..EX,VE198605-198910

W/AUTOMATIC AIR CONDITIONER

main81942-16070iAL21..SX,VS198408-198605

sub81942-16071

main81942-16071iAL25..SX,VS198605-198805

main81942-16080iAL21..SX,VS198408-198605

W/AUTOMATIC AIR CONDITIONER

sub81942-16081

main81942-16081iAL25..SX,VS198605-198805

W/AUTOMATIC AIR CONDITIONER

8401

7 parts on this diagram · 1 diagram in section
