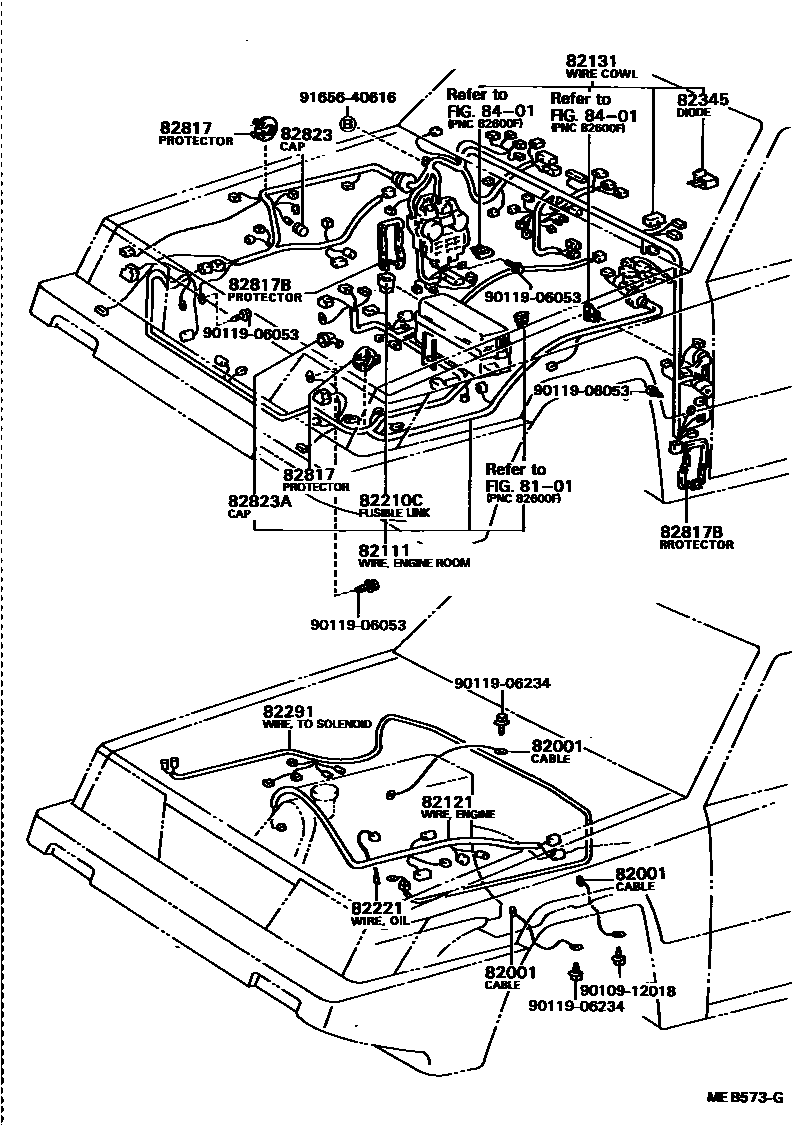

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

8101HEADLAMP

→ Go to FIG 81-01

82001CABLE, BOND, NO.1

main90980-07119iAL2#198205-198910

L=320,CLUCH-FLOOR

main90980-07200iAL2#198205-198402

L=350,ENGINE-DASH

main90980-07207iAL2#..3FC198205-198910

L=140,MISSION-FLOOR

main90980-07208iAL2#..MTM198205-198910

L=210,MISSION-FLOOR

main90980-07233iAL2#198402-198910

L=350,ENGINE-DASH

82111WIRE, ENGINE ROOM MAIN

main82111-16010iAL2#..5DS..(DX,GX,VC,VL)198206-198306

main82111-16030iAL21..SX,VS198205-198408

main82111-16040iAL21..5DS..(EX,VE)198206-198306

main82111-16160iAL20..(3DS,5DS)..(DX,VC)198205-198408

W/KNOCK CONTROL

main82111-16170iAL2#..(3DS,4DS)..(DX,GX,VC,VL)198206-198408

main82111-16180iAL21..4DS..(EX,VE)198206-198408

main82111-16250iAL20,21..DX,GX,VC,VL198408-198710

main82111-16251iAL20,21..DX,GX,VC,VL198710-198910

main82111-16260iAL20..3DS..4F..(DX,VC)198408-198605

W/KNOCK CONTROL

main82111-16270iAL21..EX,SX,VE,VS198408-198605

main82111-16271iAL21..EX,VE198710-198910

main82111-16280iAL25..GX,VL198408-198605

main82111-16290iAL25..EX,VE198408-198605

main82111-16480iAL25..GX,VL198605-198710

main82111-16481iAL25..GX,VL198710-198910

main82111-16490iAL25..EX,SX,VE,VS198605-198710

main82111-16491iAL25..EX,SX,VE,VS198710-198910

82121WIRE, ENGINE

main82121-16010iAL2#..MTM..(DX,EX,GX,VC,VE,VL)198205-198408

main82121-16040iAL20,21..3FC198205-198910

main82121-16110iAL20..(3DS,5DS)..(DX,VC); AL21..SX,VS198205-198408

W/KNOCK CONTROL

main82121-16120iAL25..3FC198408-198910

main82121-16140iAL20,21..MTM198408-198910

main82121-16150iAL20..3DS..4F..(DX,VC)198408-198605

W/KNOCK CONTROL

main82121-16170iAL25..6F198408-198910

82131WIRE, COWL

main82131-16010iAL2#..(3DS,5DS)..(GX,VL)198205-198408

W/REMOTE CONTROL MIRROR

main82131-16020iAL21..5DS..EX198205-198408

main82131-16030iAL2#..4DS..(GX,VL)198205-198408

W/REMOTE CONTROL MIRROR

main82131-16040iAL21..4DS..EX198205-198408

main82131-16060iAL21..5DS..VE198205-198408

main82131-16200iAL2#..(3DS,5DS)..(DX,GX,VC,VL)198205-198408

main82131-16210iAL2#..4DS..(DX,GX,VC,VL)198205-198408

main82131-16220iAL21..3AHU198205-198408

main82131-16230iAL21..4DS..(SX,VS)198205-198408

main82131-16260iAL21..4DS..VE198205-198408

main82131-16330iAL20,21..(3DS,5DS)..(DX,GX,VC,VL)198408-198605

main82131-16340iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

W/REMOTE CONTROL MIRROR

main82131-16350iAL21..3ASU198408-198605

main82131-16360iAL21..3FC..(SX,VS)198408-198605

main82131-16370iAL21..5DS..EX198408-198605

main82131-16380iAL21..5DS..VE198408-198605

main82131-16390iAL25..GX,VL198408-198605

main82131-16400iAL25..EX,VE198408-198605

main82131-16410iAL20,21..4DS..(DX,GX,VC,VL)198408-198605

main82131-16420iAL20,21..4DS..(GX,VL)198408-198605

W/REMOTE CONTROL MIRROR

main82131-16430iAL21..4DS..EX198408-198605

main82131-16440iAL21..4DS..VE198408-198605

main82131-16780iAL25..GX,VL198605-198710

main82131-16781iAL25..GX,VL198710-198910

main82131-16790iAL25..EX,VE198605-198710

main82131-16791iAL25..EX,VE198710-198910

main82131-16800iAL20,21..DX,GX,VC,VL198605-198710

main82131-16801iAL20,21..DX,GX,VC,VL198710-198910

main82131-16810iAL20,21..GX,VL198605-198710

W/REMOTE CONTROL MIRROR

main82131-16811iAL20,21..GX,VL198710-198910

W/REMOTE CONTROL MIRROR

main82131-16820iAL21..EX198605-198710

main82131-16821iAL21..EX198710-198910

main82131-16830iAL21..VE198605-198710

main82131-16831iAL21..VE198710-198910

main82131-1G110iAL25..SX,VS198605-198710

main82131-1G111iAL25..SX,VS198710-198805

82210CFUSIBLE LINK

main90982-08188×3iAL2#198205-198910

main90982-08190iAL2#198205-198910

82221WIRE, OIL PRESSURE SWITCH

main82221-16010iAL2#198205-198910

82291WIRING, TO SOLENOID

main82291-16020iAL2#198605-198910

82345DIODE

main82345-12050×2iAL25198605-198910

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-16020×2iAL2#198205-198910

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-16040iAL2#198205-198910

RH

main82817-16050iAL2#198205-198910

LH

82823CAP, TERMINAL, NO.1

main82823-16010iAL2#198408-198910

main82823-30010iAL2#198205-198408

82823ACAP, TERMINAL, NO.2

main82823-12020iAL21,25..EX,VE198901-198910

ALTERNATOR

main82823-22020iAL2#198205-198408

ALTERNATOR

main82823-30060iAL2#..DX,GX,VC,VL198901-198910

ALTERNATOR

main82823-32020iAL2#198408-198901

ALTERNATOR

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010912018

main90109-12018

9011906053

main90119-06053

9011906234

main90119-06234

9165640616

main91656-40616

18 parts on this diagram · 5 diagrams in section
