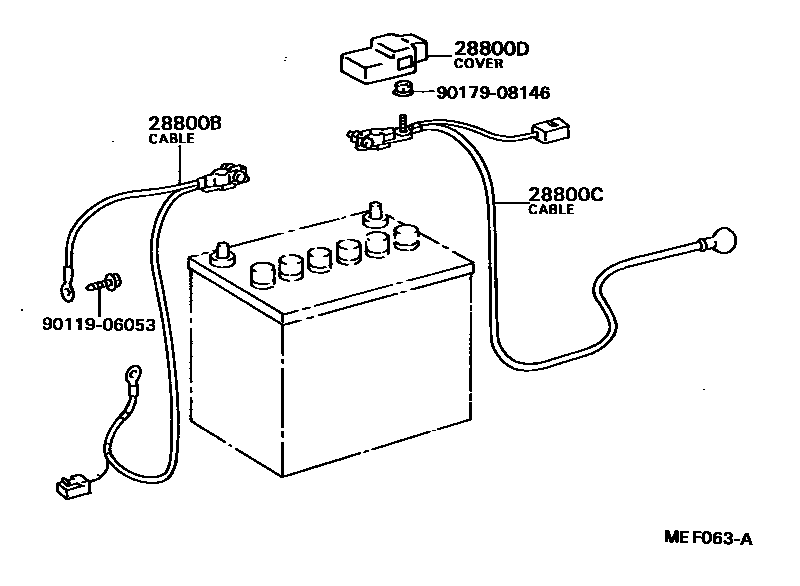

BATTERY & BATTERY CABLE

28800BCABLE, BATTERY TO GROUND

main82123-16010i2AU,3AU..AL2#198205-198408

main82123-16030i2AU..AL20..(3DS,5DS)..(DX,VC); 3AHU..AL21198205-198408

W/KNOCK CONTROL

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-16010i2AU,3A#..AL2#198205-198710

STARTER=12V 0.6KW,0.8KW

main82122-16011i2AU,3A#..AL2#198710-198910

STARTER=12V 0.6KW,0.8KW

main82122-16020i2AU,3A#..AL2#198205-198710

STARTER=12V 1.0KW

main82122-16021i2AU,3A#..AL2#198710-198910

STARTER=12V 1.0KW

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i2AU,3A#..AL2#198205-198910

9011906053

main90119-06053

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
