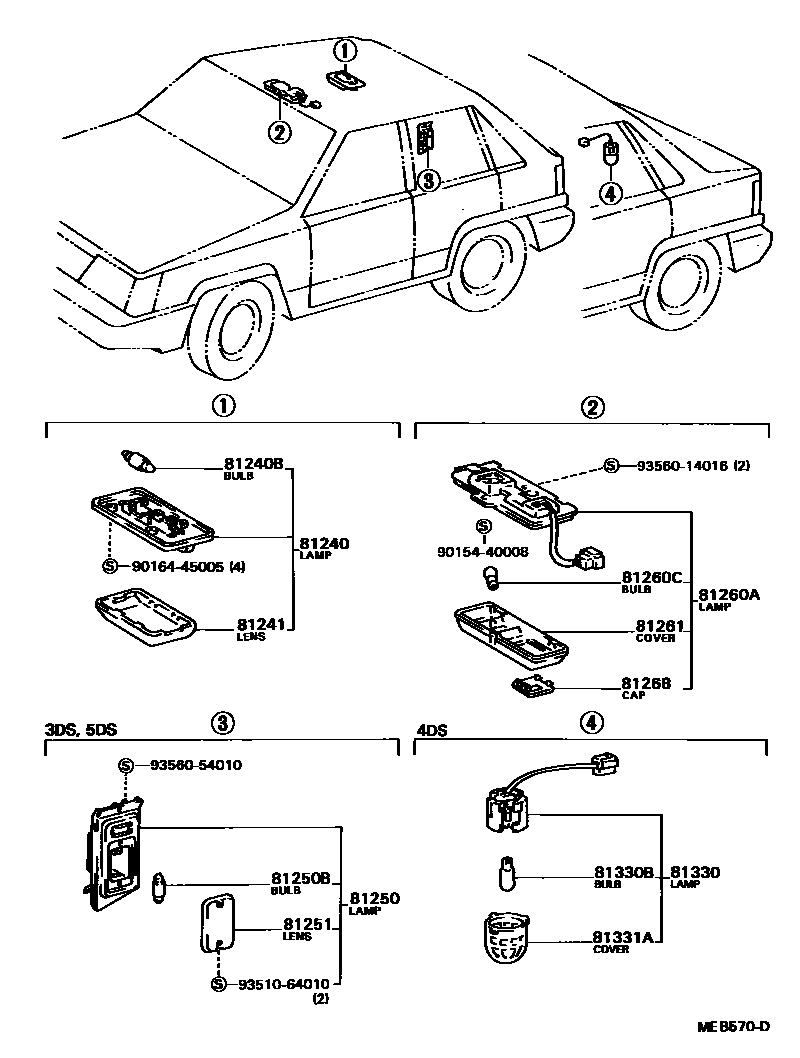

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-16010-18iAL2#198205-198408

IVORY,IVORY

main81240-22080-08iAL2#198408-198605

IVORY,IVORY

main81240-22080-18iAL2#198605-198608

IVORY,IVORY

main81240-22081-18iAL2#198608-198910

IVORY,IVORY

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAL2#198205-198910

81241LENS, ROOM LAMP, NO.1

main81241-16010iAL2#198205-198408

main81241-20060iAL2#198408-198910

81250LAMP ASSY, ROOM, NO.2

main81250-16030iAL20,21..(3DS,5DS)..(EX,GX,SX,VE,VL,VS)198205-198605

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAL20,21..(3DS,5DS)..(EX,GX,SX,VE,VL,VS)198205-198605

81251LENS, ROOM LAMP, NO.2

main81251-14030iAL20,21..(3DS,5DS)..(EX,GX,SX,VE,VL,VS)198205-198605

81260ALAMP ASSY, MAP

main81260-16030iAL21..5DS..(EX,SX,VE,VS)198205-198211

W/SUN ROOF

main81260-16040-08iAL21..(3DS,5DS)..(EX,SX,VE,VS)198211-198605

IVORY,W/SUN ROOF,IVORY

81260CBULB(FOR MAP LAMP)

main90981-12014×2iAL21..(3DS,5DS)..(EX,SX,VE,VS)198205-198605

81261LENS AND COVER, MAP LAMP

main81261-16030iAL21..5DS..(EX,SX,VE,VS)198205-198211

W/SUN ROOF

main81261-20060-18iAL21..5DS..(EX,SX,VE,VS)198211-198308

IVORY,W/SUN ROOF,IVORY

main81261-20061-18iAL21..(3DS,5DS)..(EX,SX,VE,VS)198308-198605

IVORY,W/SUN ROOF,IVORY

81268CAP MAP LAMP

main81268-20060-08iAL21..5DS..(EX,SX,VE,VS)198205-198305

IVORY,W/SUN ROOF,IVORY

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030iAL21,25..4DS..(EX,VE)198205-198605

main81330-22031iAL21,25..EX,SX,VE,VS198703-198910

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iAL21,25..EX,SX,VE,VS198703-198910

main99132-12050iAL21,25..4DS..(EX,VE)198205-198605

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iAL21,25..4DS..(EX,VE)198205-198605

9015440008

main90154-40008

9016445005

main90164-45005

9351064010

main93510-64010

9356014016

main93560-14016

9356054010

main93560-54010

18 parts on this diagram · 1 diagram in section
