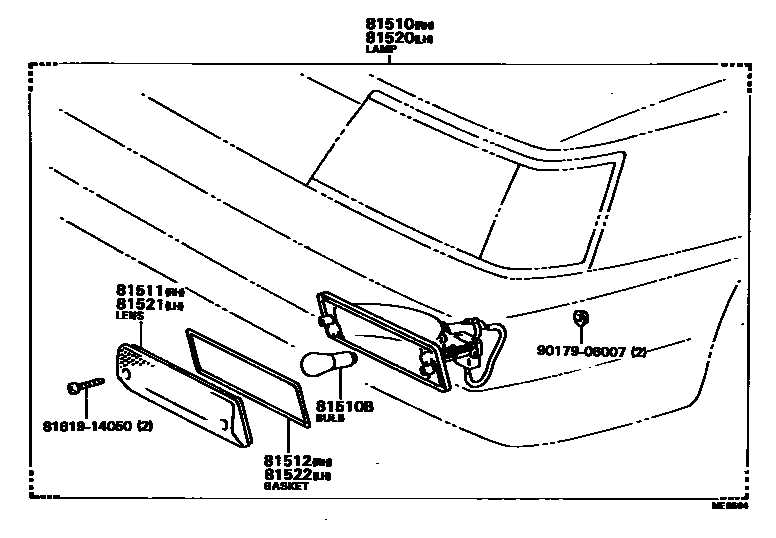

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-19816iAL21..3DS198408-198605

SPORTS PACKAGE

main81510-19835iAL2#198205-198408

main81510-19836iAL2#198408-198605

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11230×2iAL2#198205-198910

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-16081iAL21..3DS198408-198605

SPORTS PACKAGE

main81511-16100iAL2#198205-198408

main81511-16101iAL2#198408-198605

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iAL2#198605-198910

main81512-16100iAL2#198205-198408

main81512-16101iAL2#198408-198605

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-19816iAL21..3DS198408-198605

SPORTS PACKAGE

main81520-19835iAL2#198205-198408

main81520-19836iAL2#198408-198605

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-16081iAL21..3DS198408-198605

SPORTS PACKAGE

main81521-16100iAL2#198205-198408

main81521-16101iAL2#198408-198605

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iAL2#198605-198910

main81512-16100iAL2#198205-198408

main81512-16101iAL2#198408-198605

8161914050

main81619-14050

9017906007

main90179-06007

9 parts on this diagram · 2 diagrams in section
