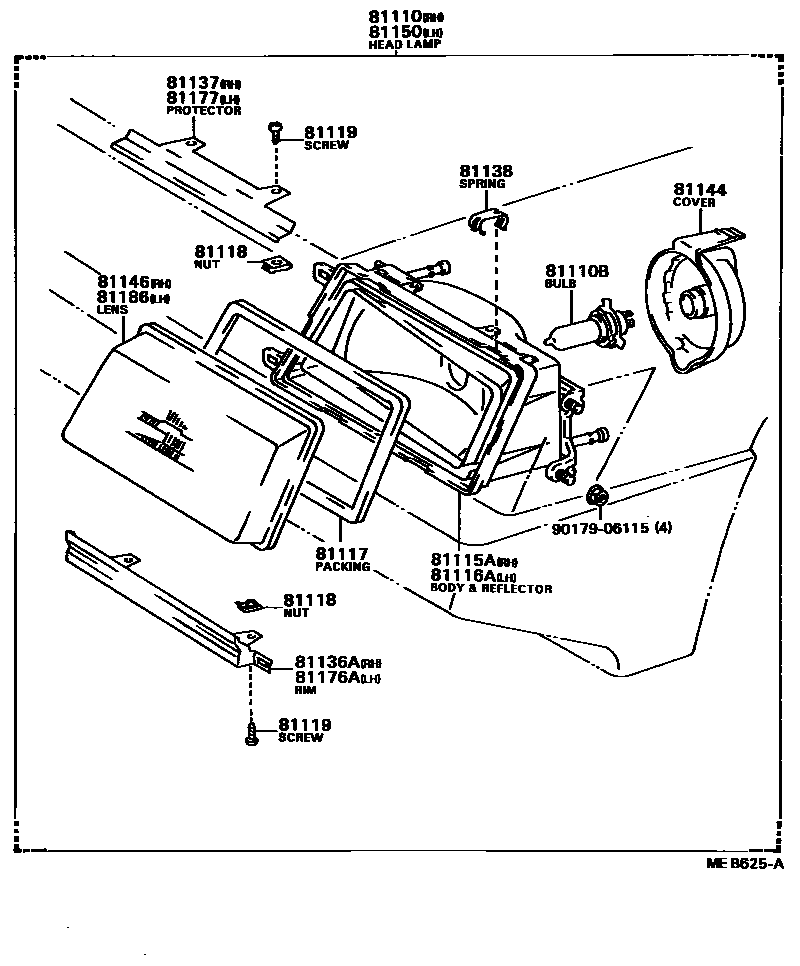

HEADLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

81110HEADLAMP ASSY, RH

main81110-16152iAL20,21; AL25..GX,VL198605-198910

main81110-16162iAL2#198605-198910

HALOGEN

main81110-16390iAL25..SX,VS198605-198805

ACTIVE PACKAGE

main81110-80207iAL2#..DX,EX,GX198205-198408

main81110-80208iAL2#..CRS198205-198408

HALOGEN

main81110-80209iAL2#..VC,VE,VL198205-198408

main81110-80210iAL2#..TER198205-198408

HALOGEN

main81110-80422iAL2#..VC,VE,VL198408-198605

main81110-80423iAL2#..TER198408-198605

HALOGEN

main81110-80424iAL2#..DX,EX,GX198408-198605

main81110-80425iAL2#..CRS198408-198605

HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iAL2#198205-198910

main90981-13016×2iAL25..SX,VS198605-198805

main90981-13022×2iAL20,21; AL25..GX,VL198605-198910

81115ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

main81105-16150iAL2#..VC,VE,VL198205-198408

main81105-16160iAL2#..TER198205-198408

HALOGEN

main81135-16130iAL2#..DX,EX,GX198205-198408

main81135-16140iAL2#..CRS198205-198408

HALOGEN

81116ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

main81106-16150iAL2#..VC,VE,VL198205-198408

main81106-16160iAL2#..TER198205-198408

HALOGEN

main81175-16130iAL2#..DX,EX,GX198205-198408

main81175-16140iAL2#..CRS198205-198408

HALOGEN

81117PACKING, HEADLAMP HOUSING

main81136-32030×2iAL2#..TER198205-198408

main81147-16140×2iAL2#..CRS198205-198408

81118NUT, SPRING

main81118-16140×8iAL2#..CRS198205-198408

main81128-16150×4iAL2#..TER198205-198408

81119SCREW, HEADLAMP

main81119-14880×4iAL2#..TER198408-198605

main81119-16140×8iAL2#..CRS198205-198605

main81119-16150×4iAL2#..TER198205-198408

81136ARIM, HEADLAMP, RH

main81112-16150iAL20,21..TER198205-198605

main81116-16152iAL2#198605-198910

main81137-16140iAL2#..CRS198205-198408

main81137-16141iAL2#..CRS198408-198605

81137PROTECTOR, HEADLAMP, NO.2 RH

main81136-16140iAL2#..CRS198205-198408

main81136-16141iAL2#..CRS198408-198605

81138SPRING, HEADLAMP

main81138-14880×8iAL2#..TER198205-198408

SILVER

main81138-20550×12iAL2#..CRS198205-198408

main81138-32030×4iAL2#..TER198205-198408

BLACK

81144COVER, HEADLAMP, NO.1

main81139-14880×2iAL2#..TER198205-198605

main81139-20730×2iAL2#..CRS198408-198605

main81139-30481×2iAL2#..CRS198205-198408

81146LENS, HEADLAMP, RH

main81135-32030iAL2#..TER198205-198408

main81146-16140iAL2#..CRS198205-198408

81150HEADLAMP ASSY, LH

main81150-16152iAL20,21; AL25..GX,VL198605-198910

main81150-16162iAL2#198605-198910

HALOGEN

main81150-16390iAL25..SX,VS198605-198805

ACTIVE PACKAGE

main81150-80204iAL2#..DX,EX,GX198205-198408

main81150-80205iAL2#..CRS198205-198408

HALOGEN

main81150-80206iAL2#..VC,VE,VL198205-198408

main81150-80207iAL2#..TER198205-198408

HALOGEN

main81150-80414iAL2#..VC,VE,VL198408-198605

main81150-80415iAL2#..TER198408-198605

HALOGEN

main81150-80416iAL2#..DX,EX,GX198408-198605

main81150-80417iAL2#..CRS198408-198605

HALOGEN

81176ARIM, HEADLAMP, LH

main81152-16150iAL25..TER198408-198605

main81156-16152iAL2#198605-198910

main81177-16140iAL2#..CRS198205-198408

main81177-16141iAL2#..CRS198408-198605

81177PROTECTOR, HEADLAMP, NO.2 LH

main81176-16140iAL2#..CRS198205-198408

main81176-16141iAL2#..CRS198408-198605

81186LENS, HEADLAMP, LH

main81176-32030iAL2#..TER198205-198408

main81186-16140iAL2#..CRS198205-198408

9017906115

main90179-06115

17 parts on this diagram · 5 diagrams in section
