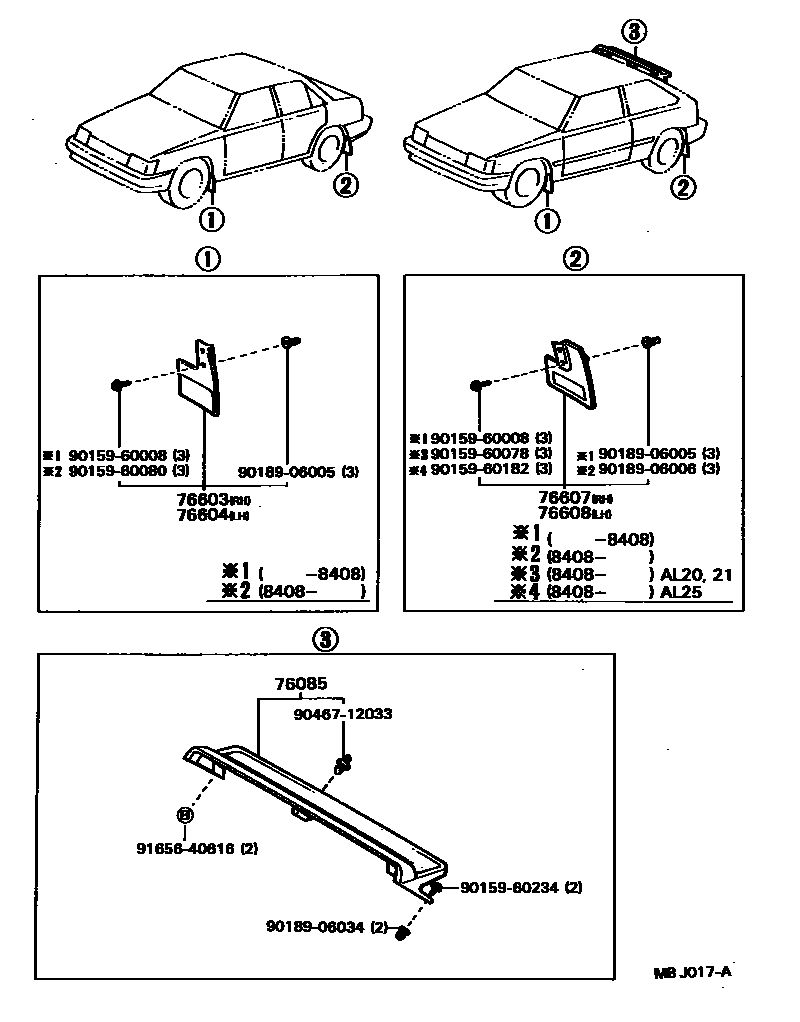

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-16010iAL21..3DS198408-198605

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-16040-02iAL20..(3DS,5DS)..(GX,VL)198512-198605

RED,RED

main76603-16040-08iAL20..(3DS,5DS)..(GX,VL)198512-198605

WHITE,WHITE

main76603-19085iAL2#..(3DS,5DS)..VL198401-198403

CUTIE

main76603-19085iAL21..SX,VE,VS198205-198408

main76603-19125iAL21..SX198408-198910

BLACK

main76603-19125iAL25..GX,VL198509-198605

GX EXTRA OR VL EXTRA

main76603-19165iAL25..SX,VS198605-198804

BLUE-M

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-16040-02iAL20..(3DS,5DS)..(GX,VL)198512-198605

RED,RED

main76604-16040-08iAL20..(3DS,5DS)..(GX,VL)198512-198605

WHITE,WHITE

main76604-19085iAL21..SX,VE,VS198205-198408

main76604-19085iAL2#..(3DS,5DS)..VL198401-198403

CUTIE

main76604-19125iAL21..VE198408-198910

BLACK

main76604-19125iAL25..GX,VL198509-198605

GX EXTRA OR VL EXTRA

main76604-19165iAL25..SX,VS198605-198804

BLUE-M

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-16100-02iAL20..(3DS,5DS)..(GX,VL)198512-198605

RED,RED

main76607-16100-08iAL20..(3DS,5DS)..(GX,VL)198512-198605

WHITE,WHITE

main76607-19135iAL2#..(3DS,5DS)..VL198401-198403

CUTIE

main76607-19135iAL21..SX,VE,VS198205-198408

main76607-19215iAL20..3DS..(GX,VL)198408-198605

BLACK

main76607-19225iAL21..4DS..VE198408-198910

BLACK

main76607-19235iAL25198605-198910

BLACK

main76607-19235iAL25..EX,VE198408-198605

main76607-19235iAL25..GX,VL198509-198605

GX EXTRA OR VL EXTRA

main76607-19385iAL25..SX,VS198605-198804

BLUE-M

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-16100-02iAL20..(3DS,5DS)..(GX,VL)198512-198605

RED,RED

main76608-16100-08iAL20..(3DS,5DS)..(GX,VL)198512-198605

WHITE,WHITE

main76608-19135iAL2#..(3DS,5DS)..VL198401-198403

CUTIE

main76608-19135iAL21..SX,VE,VS198205-198408

BLACK

main76608-19215iAL21..(3DS,5DS)..(VE,VS)198408-198605

BLACK

main76608-19225iAL21..4DS..VE198408-198910

BLACK

main76608-19235iAL25..GX,VL198509-198605

GX EXTRA OR VL EXTRA

main76608-19235iAL25..EX,VE198408-198910

BLACK

main76608-19385iAL25..SX,VS198605-198804

BLUE-M

9015960008

main90159-60008

9015960078

main90159-60078

9015960080

main90159-60080

9015960182

main90159-60182

9015960234

main90159-60234

9018906005

main90189-06005

9018906006

main90189-06006

9018906034

main90189-06034

9046712033

main90467-12033

9165640616

main91656-40616

15 parts on this diagram · 1 diagram in section
