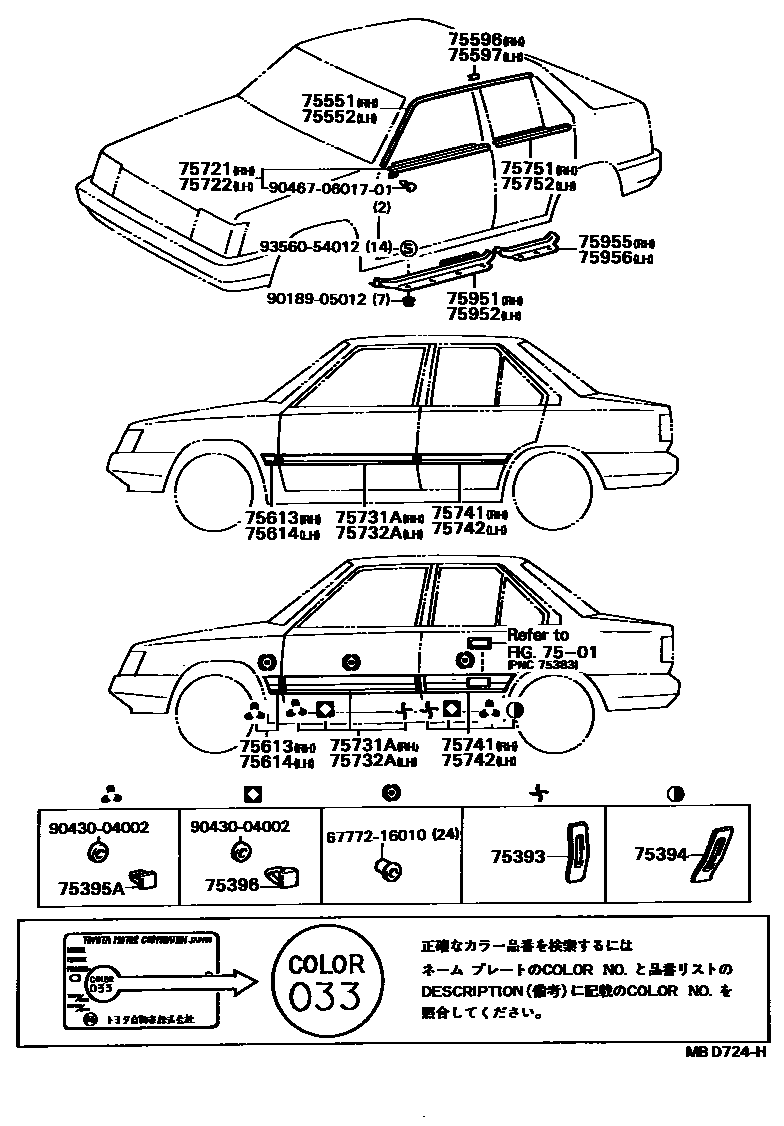

SIDE MOULDING
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
75393RETAINER, OUTSIDE MOULDING, NO.2
75394RETAINER, OUTSIDE MOULDING, NO.3
RH
LH
75395ACLIP, OUTSIDE MOULDING, NO.1
75396CLIP, OUTSIDE MOULDING, NO.2
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75613MOULDING, FRONT FENDER, OUTSIDE RH
SILVER,SILVER METALLIC,2J3
BEIGE,LIGHT BEIGE METALLIC,2T0
BLACK,BLACK
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,2S3 ,558
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147
SOPHIA,CUTIE,RED,RED,3E6
SOPHIA OR CUTIE,SILVER,SILVER METALLIC,2W4
SOPHIA,CUTIE,WHITE,WHITE,041
WIDE,W/STRIPE,BLACK
EX EXTRA,VE EXTRA,WHITE(041)
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,558 ,2N5
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147 ,2J1 ,2J2
EX EXTRA,VE EXTRA,SILVER(147)
WIDE,BLACK
RED,RED,3E6
GX ALPEN,VL EXTRA,GRAY-M,WARM GRAY METALLIC,165
BLUE-M,BLUE METALLIC,8D7 ,27B
4WD SPECIAL,BEIGE-M,BEIGE METALLIC,4G8
GRAY-M,GRAY M,168
75614MOULDING, FRONT FENDER, OUTSIDE LH
SILVER,SILVER METALLIC,2J3
BEIGE,LIGHT BEIGE METALLIC,2T0
BLACK,BLACK
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,2S3 ,558
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147
SOPHIA,CUTIE,RED,RED,3E6
SOPHIA OR CUTIE,SILVER,SILVER METALLIC,2W4
SOPHIA,CUTIE,WHITE,WHITE,041
WIDE,W/STRIPE,BLACK
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,558 ,2N5
DARK GRAY,GRAY,038 ,147 ,884 ,2J2
LIGHT GRAY,GRAY,038 ,147 ,2J1 ,2J2
EX EXTRA,VE EXTRA,WHITE(041)
EX EXTRA,VE EXTRA,SILVER(147)
WIDE,BLACK
RED,RED,3E6
GRAY-M,WARM GRAY METALLIC,165
BLUE-M,BLUE METALLIC,8D7 ,27B
4WD SPECIAL,BEIGE-M,BEIGE METALLIC,4G8
GRAY-M,GRAY M,168
4WD SPECIAL,WHITE,041
75721MOULDING, FRONT DOOR BELT, RH
W/DOOR MIRROR
W/DOOR MIRROR
75722MOULDING, FRONT DOOR BELT, LH
W/DOOR MIRROR
W/DOOR MIRROR
75731AMOULDING, FRONT DOOR, OUTSIDE RH
SILVER,SILVER METALLIC,2J3
BEIGE,LIGHT BEIGE METALLIC,2T0
BLACK,BLACK
SOPHIA,CUTIE,RED,RED,3E6
SOPHIA OR CUTIE,SILVER,SILVER METALLIC,2W4; SPORTS PACKAGE,SILVER,SILVER METALLIC,2J3
SPORTS PACKAGE,BEIGE,LIGHT BEIGE,2T0
SOPHIA,CUTIE,WHITE,WHITE,041
BLACK,BLACK
DARK GRAY,GRAY,038 ,147 ,884
WIDE,BLACK,BLACK
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,558 ,2N2
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147 ,2J1 ,2J2
BLACK,BLACK,3D7 ,3B7 ,4E1 ,557
DARK GRAY,GRAY,038 ,147
BLACK,BLACK
WIDE,W/STRIPE,BLACK
EX EXTRA,VE EXTRA,WHITE(041)
EX EXTRA,VE EXTRA,SILVER(147)
WIDE,BLACK
RED,RED,3E6
BLUE-M,BLUE METALLIC,8D7 ,27B
BEIGE-M,BEIGE METALLIC,4G8
GRAY-M,GRAY M,168
SOPHIA,CUTIE,RED,RED,3E6
SOPHIA,CUTIE,WHITE,WHITE,041
75732AMOULDING, FRONT DOOR, OUTSIDE LH
SILVER,SILVER METALLIC,2J3
BEIGE,LIGHT BEIGE METALLIC,2T0
BLACK,BLACK
SOPHIA,CUTIE,RED,RED,3E6
SOPHIA OR CUTIE,SILVER,SILVER METALLIC,2W4; SPORTS PACKAGE,SILVER,SILVER METALLIC,2J3
SPORTS PACKAGE,BEIGE,LIGHT BEIGE,2T0
SOPHIA,CUTIE,WHITE,WHITE,041
BLACK,BLACK
DARK GRAY,GRAY,038 ,147 ,884
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,558
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,558 ,2N5
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147 ,2J1 ,2J2
BLACK,BLACK,3D7 ,3B7 ,4E1 ,557
DARK GRAY,GRAY,038 ,147
BLACK,BLACK
WIDE,W/STRIPE,BLACK
EX EXTRA,VE EXTRA,WHITE(041)
EX EXTRA,VE EXTRA,SILVER(147)
WIDE,BLACK
4WD SPECIAL,RED,RED,3E6
GX ALPEN,VL EXTRA,GRAY-M,WARM GRAY METALLIC,165
BLUE-M,BLUE METALLIC,8D7 ,27B
BEIGE-M,BEIGE METALLIC,4G8
WHITE,WHITE,041
GRAY-M,GRAY M,168
SOPHIA,CUTIE,RED,RED,3E6
SOPHIA,CUTIE,WHITE,WHITE,041
75741MOULDING, REAR DOOR, OUTSIDE RH
BLACK,BLACK
WIDE,BLACK,BLACK
DARK GRAY,GRAY,038 ,147 ,884
LIGHT GRAY,GRAY,038 ,147
WIDE,W/STRIPE,BLACK
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,2N5 ,558
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147 ,2J1
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,558
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147 ,2J2
EX EXTRA,VE EXTRA,WHITE(041)
EX EXTRA,VE EXTRA,SILVER(147)
WIDE,BLACK
WIDE,BLACK
4WD SPECIAL,RED,RED,3E6
VL EXTRA,GRAY-M,WARM GRAY METALLIC,165
BLUE-M,BLUE METALLIC,8D7 ,27B
4WD SPECIAL,BEIGE-M,BEIGE METALLIC,4G8
WHITE,WHITE,041
4WD SPECIAL,GRAY-M,GRAY M,168
RED,RED,3E6
GX ALPEN,GRAY-M,WARM GRAY METALLIC,165
BLUE-M,BLUE METALLIC,8D7 ,27B
BEIGE-M,BEIGE METALLIC,4G8
GX ALPEN,WHITE,WHITE,041
GRAY-M,GRAY M,168
SOPHIA,CUTIE,RED,RED,3E6
SOPHIA,CUTIE,WHITE,WHITE,041
75742MOULDING, REAR DOOR, OUTSIDE LH
BLACK,BLACK
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,558
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147
WIDE,W/STRIPE,BLACK
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,2N5 ,558
DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884
LIGHT GRAY,GRAY,038 ,147 ,2J1
BLACK,BLACK,3D7 ,3B7 ,4C3 ,4E1 ,557; BLACK,BLACK,6G3 ,6G5 ,558
DARK GRAY,GRAY,038 ,147 ,884 ,2J2
LIGHT GRAY,GRAY,038 ,147 ,2J2
EX EXTRA,VE EXTRA,WHITE(041)
EX EXTRA,VE EXTRA,SILVER(147)
WIDE,BLACK
WIDE,BLACK
4WD SPECIAL,RED,RED,3E6
GRAY-M,WARM GRAY METALLIC,165
BLUE-M,BLUE METALLIC,8D7 ,27B
BEIGE-M,BEIGE METALLIC,4G8
WHITE,WHITE,041
4WD SPECIAL,GRAY-M,GRAY M,168
RED,RED,3E6
GRAY-M,WARM GRAY METALLIC,165
BLUE-M,BLUE METALLIC,8D7 ,27B
BEIGE-M,BEIGE METALLIC,4G8
GX ALPEN,WHITE,WHITE,041
4WD SPECIAL,GRAY-M,GRAY M,168
SOPHIA,CUTIE,RED,RED,3E6
SOPHIA,CUTIE,WHITE,WHITE,041
75751MOULDING, REAR DOOR BELT, RH
75752MOULDING, REAR DOOR BELT, LH
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
DARK WINE,DARK WINE,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLACK,BLACK,TRIM2#
DARK WINE,DARK WINE,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
DARK WINE,DARK WINE,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLACK,BLACK,TRIM2#
DARK WINE,DARK WINE,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
75955PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,BLACK,TRIM2#
DARK WINE,DARK WINE,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
75956PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,BLACK,TRIM2#
DARK WINE,DARK WINE,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
6777216010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-16010
9018905012
main90189-05012
9043004002
main90430-04002
904670601701
main90467-0601701
9356054012
main93560-54012
28 parts on this diagram · 3 diagrams in section
