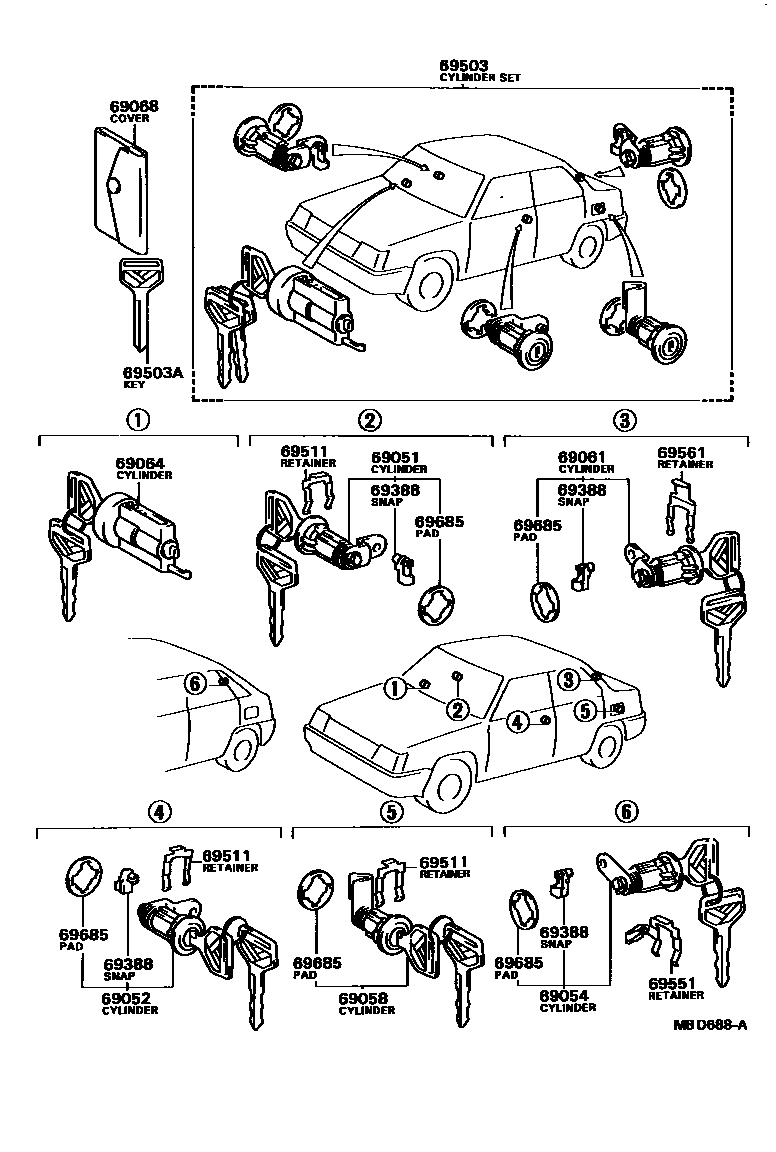

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-16030iAL2#198205-198910

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-16030iAL2#198205-198910

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-16070iAL20,21..3DS,5DS198205-198605

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16030iAL20,21198205-198910

sub69058-16091

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-16090iAL2#..4DS198205-198408

main69055-16180iAL2#..4DS198408-198910

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12120iAL2#198704-198910

sub69057-12130

main69057-16040iAL2#198205-198704

sub69057-16061

69068COVER SUB-ASSY, KEY

main69555-17010iAL2#198408-198910

main69555-20010iAL2#198205-198408

69388SNAP, ROD(FOR DOOR LOCK)

main69759-24080iAL2#198205-198910

RH,BACK OR LUGGAGE

main69759-24090iAL2#198205-198910

LH

69503CYLINDER SET, LOCK

main69005-16100iAL20,21..3DS,5DS198205-198605

main69005-16140iAL2#..4DS198205-198408

main69005-16220iAL20,21..4DS198408-198704

main69005-16221iAL20,21198704-198910

main69005-16230iAL25198408-198704

sub69005-16220

main69005-16231iAL25198704-198910

69503AKEY, BLANK

main90999-00085iAL2#198205-198910

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iAL2#198205-198910

69551RETAINER, BACK DOOR LOCK CYLINDER

main69501-16010iAL20,21..3DS,5DS198205-198605

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-12150iAL2#..4DS198408-198910

main69561-16020iAL2#..4DS198205-198408

69685PAD, LOCK CYLINDER

main69513-32010iAL2#198205-198910

main69563-32010iAL2#198205-198910

LUGGAGE OR BACK DOOR

14 parts on this diagram · 1 diagram in section
