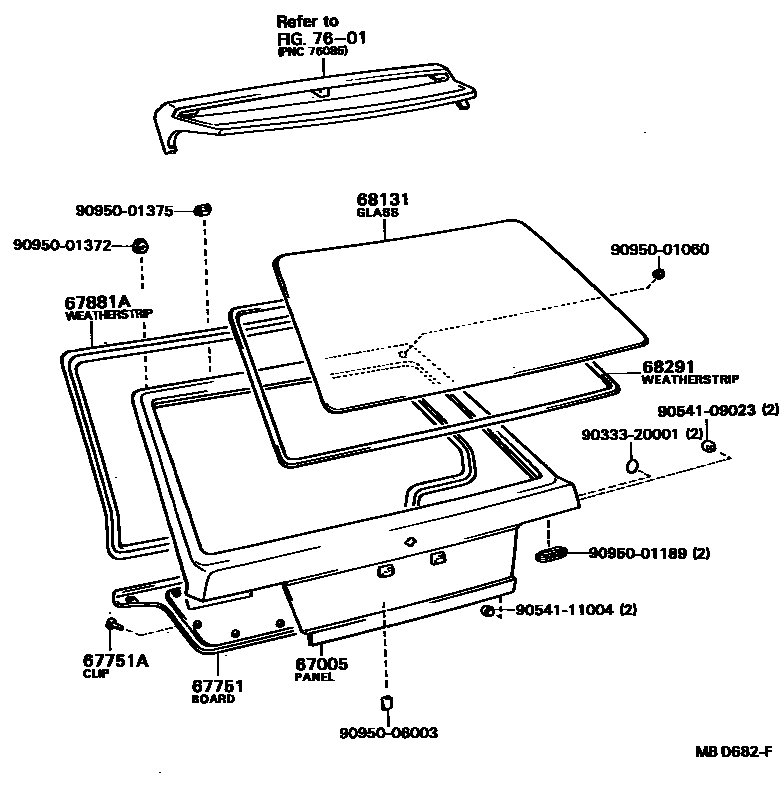

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-16070iAL2#..3DS,5DS198205-198408

W/RR WIPER

main67005-16071iAL20,21..3DS,5DS198408-198605

W/RR WIPER

main67005-16080iAL20..3DS,5DS198205-198408

main67005-16081iAL21..DX,VC198205-198408

main67005-16200iAL21..3DS198408-198605

W/RR SPOILER

67751BOARD, BACK DOOR TRIM

main67751-16020-02iAL2#..3DS,5DS198205-198408

DARK WINE,DARK WINE,TRIM3#

main67751-16020-03iAL2#..3DS,5DS198205-198408

GRAY,GRAY,TRIM1#

main67751-16020-06iAL2#..3DS,5DS198205-198408

BROWN,BROWN,TRIM4#

main67751-16020-13iAL20,21..3DS,5DS198408-198605

GRAY,GRAY,TRIM1#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-06017-02×13iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

DARK WINE,DARK WINE,TRIM3#

main90467-06017-13×13iAL2#..3DS,5DS198205-198408

GRAY,GRAY,TRIM1#

main90467-06017-26×13iAL2#..3DS,5DS198205-198408

BROWN,BROWN,TRIM4#

main90467-06017-53×13iAL20,21..3DS,5DS198408-198605

GRAY,GRAY,TRIM1#

67881AWEATHERSTRIP, BACK DOOR

main67881-16040iAL20,21..3DS,5DS198205-198605

68131GLASS, BACK DOOR

main68131-16100iAL20,21..(3DS,5DS)..(DX,VC)198205-198605

*TT,T=3.5

main68131-16120iAL20..(3DS,5DS)..(DX,VC)198504-198605

*EHT,T=3.5

main68131-16130iAL20,21..(3DS,5DS)..(VC,VL,VS); AL20,21..CRS..(3DS,5DS)198205-198605

*EHTT,T=3.5

main68131-16170iAL21..5DS..VE198205-198605

*EHTT,T=3.5

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-16010iAL20,21..3DS,5DS198205-198605

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9033320001

main90333-20001

9054109023

main90541-09023

9054111004

main90541-11004

9095001060

main90950-01060

9095001189

main90950-01189

9095001372

main90950-01372

9095001375

main90950-01375

9095006003

main90950-06003

15 parts on this diagram · 1 diagram in section
