REAR DOOR LOCK & HANDLE

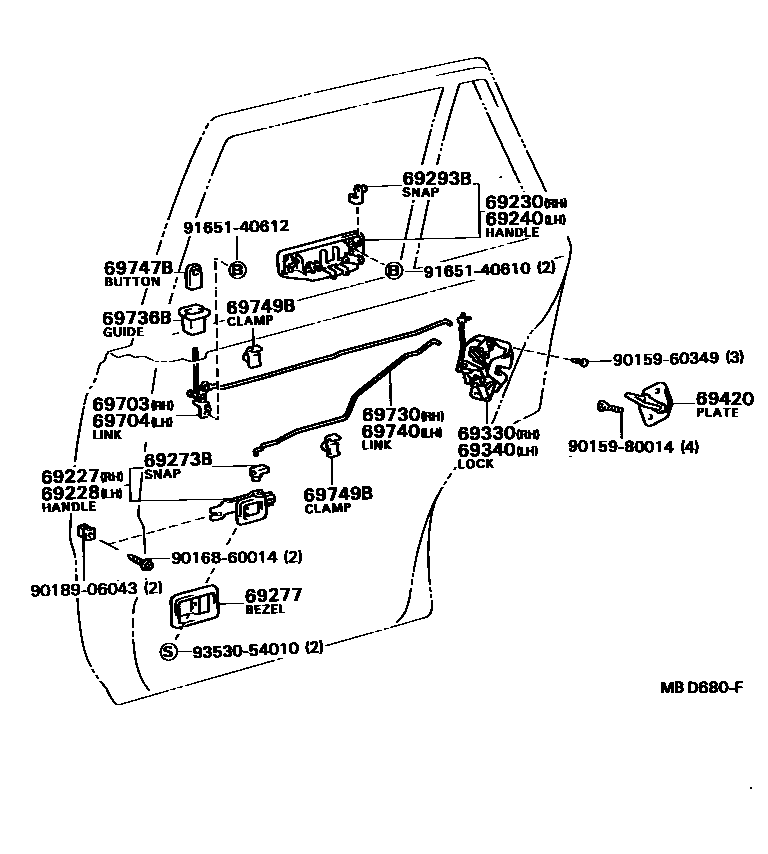

Parts diagram
69227HANDLE, REAR DOOR INSIDE, RH
main69205-16040-01i198605-198910
BLACK,NEW BLACK,TRIM2#
sub69205-16040
main69205-16040-02i198205-198605
DARK WINE,RED/MAROON,TRIM3#
sub69205-16040
main69205-16040-03i198205-198408
GRAY,GRAY,TRIM1#
sub69205-16040
main69205-16040-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub69205-16040
main69205-16040-06i198205-198408
BROWN,BROWN,TRIM4#
sub69205-16040
main69205-16040-13i198408-198605
GRAY,GRAY,TRIM1#
sub69205-16040
main69205-16040-15i198605-198910
BEIGE,DARK BEIGE,TRIM4#
sub69205-16040
69228HANDLE, REAR DOOR INSIDE, LH
main69206-16040-01i198605-198910
BLACK,NEW BLACK,TRIM2#
sub69206-16040
main69206-16040-02i198205-198605
DARK WINE,RED/MAROON,TRIM3#
sub69206-16040
main69206-16040-03i198205-198408
GRAY,GRAY,TRIM1#
sub69206-16040
main69206-16040-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub69206-16040
main69206-16040-06i198205-198408
BROWN,BROWN,TRIM4#
sub69206-16040
main69206-16040-13i198408-198605
GRAY,GRAY,TRIM1#
sub69206-16040
main69206-16040-15i198605-198910
BEIGE,DARK BEIGE,TRIM4#
sub69206-16040
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-16010i198205-198910
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-16010i198205-198910
69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
main69759-14050i198205-198910
LH
main69759-24070i198205-198910
RH
69277BEZEL, REAR DOOR INSIDE HANDLE
main69277-32020-01i198605-198910
BLACK,NEW BLACK,TRIM2#
sub69277-32020
sub69277-89104
main69277-32020-02i198205-198605
DARK WINE,RED/MAROON,TRIM3#
sub69277-32020
sub69277-89104
main69277-32020-06i198205-198408
BROWN,BROWN,TRIM4#
sub69277-32020
sub69277-89104
main69277-32020-10i198605-198910
BEIGE,DARK BEIGE,TRIM4#
sub69277-32020
sub69277-89104
main69277-32020-13i198205-198408
GRAY,GRAY,TRIM1#
sub69277-32020
sub69277-89104
main69277-32020-33i198408-198605
GRAY,GRAY,TRIM1#
sub69277-32020
sub69277-89104
main69277-32020-65i198408-198605
BEIGE,BEIGE,TRIM4#
sub69277-32020
sub69277-89104
69293BSNAP, REAR DOOR OUTSIDE HANDLE
main69293-16030i198205-198910
RH
main69293-16040i198205-198910
LH
69330LOCK ASSY, REAR DOOR, RH
main69330-16030i198205-198408
main69330-16070i198408-198910
AISHIN
sub69330-16030
main69330-16080i198408-198910
MITSUI
69340LOCK ASSY, REAR DOOR, LH
main69340-16030i198205-198408
main69340-16070i198408-198910
AISHIN
sub69340-16030
main69340-16080i198408-198910
MITSUI
69420PLATE ASSY, REAR DOOR LOCK STRIKER
main69410-12050i198408-198910
MITSUI
main69410-14040i198205-198408
MITSUI
main69410-14050i198205-198408
AISHIN
sub69410-20070
main69410-87001i198408-198910
AISHIN
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
main69770-16020i198205-198212
sub69770-16030
main69770-16030i198212-198510
main69770-16040i198510-198910
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
main69780-16020i198205-198212
sub69780-16030
main69780-16030i198212-198510
main69780-16040i198510-198910
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
main69713-16020i198205-198910
69736BGUIDE, REAR DOOR LOCK LINK
main69736-12030i198408-198910
main69736-22021i198205-198408
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
main69714-16020i198205-198910
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
main69741-32010-01i198205-198505
BLACK,BLACK
sub69741-32010
sub69741-90K00
main69741-90K00-01i198505-198910
BLACK,BLACK
sub69741-90K00
sub69741-89102
sub69741-12040
sub69741-89104
69749BCLAMP, REAR DOOR LOCK LINK
main69749-30020i198205-198910
9015960349
main90159-60349
9015980014
main90159-80014
9016860014
main90168-60014
9018906043
main90189-06043
9165140610
main91651-40610
9165140612
main91651-40612
9353054010
main93530-54010

24 parts on this diagram · 1 diagram in section
