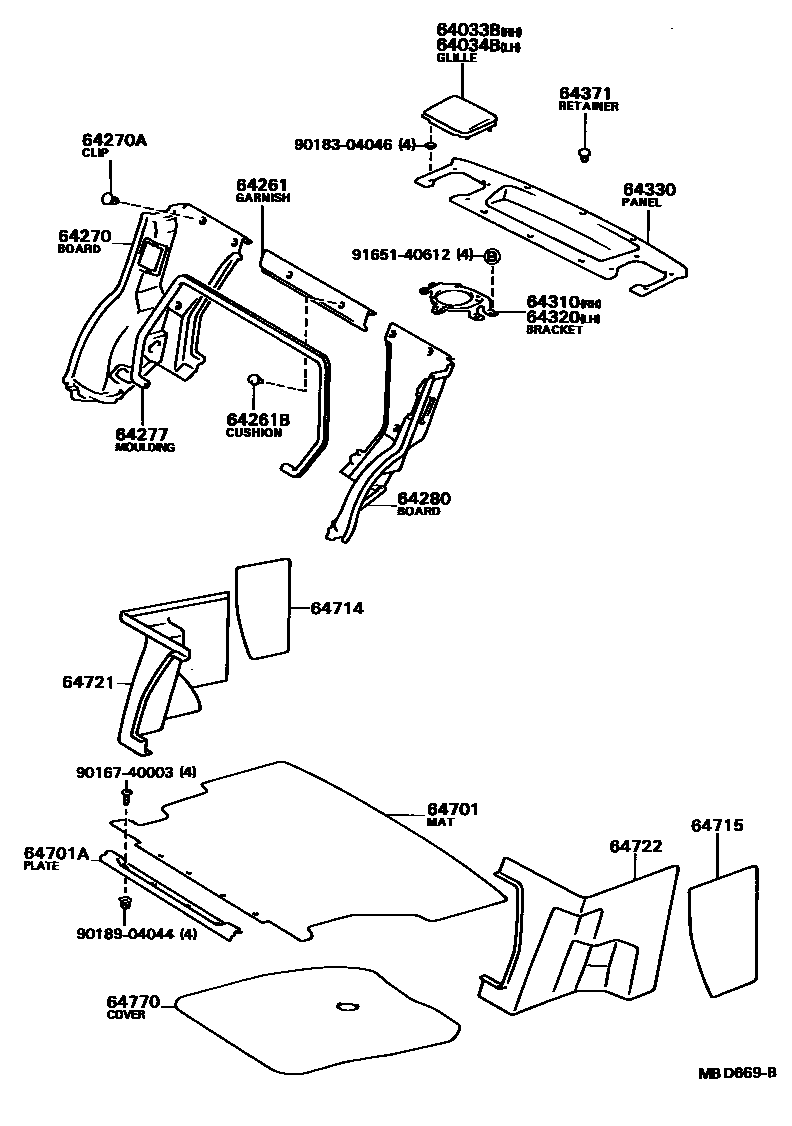

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-16020-02iAL21..4DS..(EX,VE)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main64033-16020-03iAL21..4DS..(EX,VE)198205-198408

GRAY,GRAY,TRIM1#

main64033-16020-05iAL21,25..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main64033-16020-06iAL21..4DS..(EX,VE)198205-198408

BROWN,BROWN,TRIM4#

main64033-16020-13iAL21,25..4DS..(EX,VE)198408-198605

GRAY,GRAY,TRIM1#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-16020-02iAL21..4DS..(EX,VE)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main64033-16020-03iAL21..4DS..(EX,VE)198205-198408

GRAY,GRAY,TRIM1#

main64033-16020-05iAL21,25..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main64033-16020-06iAL21..4DS..(EX,VE)198205-198408

BROWN,BROWN,TRIM4#

main64033-16020-13iAL21,25..4DS..(EX,VE)198408-198605

GRAY,GRAY,TRIM1#

64261GARNISH, ROOM PARTITION

main64261-16020-01iAL21..EX,VE; AL25198605-198910

BLACK,BLACK,TRIM2#

main64261-16020-02iAL21..4DS..(EX,SX,VE,VS)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main64261-16020-03iAL21..4DS..(EX,SX,VE,VS)198205-198408

GRAY,GRAY,TRIM1#

main64261-16020-05iAL25;AL21..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main64261-16020-06iAL21..4DS..(EX,SX,VE,VS)198205-198408

BROWN,BROWN,TRIM4#

main64261-16020-13iAL25;AL21..4DS..(EX,VE)198408-198605

GRAY,GRAY,TRIM1#

main64261-16020-15iAL21..EX,VE; AL25..EX,GX,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

64261BCUSHION(FOR ROOM PARTITION GARNISH)

main90541-09010×2iAL21..4DS..(EX,SX,VE,VS)198205-198408

64270BOARD ASSY, ROOM PARTITION, RH

main64271-16020-01iAL21..EX,VE198605-198910

BLACK,BLACK,TRIM2#

main64271-16020-02iAL21..4DS..(EX,SX,VE,VS)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main64271-16020-03iAL21..4DS..(EX,SX,VE,VS)198205-198408

GRAY,GRAY,TRIM1#

main64271-16020-05iAL21..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main64271-16020-06iAL21..4DS..(EX,SX,VE,VS)198205-198408

BROWN,BROWN,TRIM4#

main64271-16020-13iAL21..4DS..(EX,VE)198408-198605

GRAY,GRAY,TRIM1#

main64271-16020-15iAL21..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

main64271-16030-01iAL25198605-198910

BLACK,BLACK,TRIM2#

main64271-16030-03iAL25198408-198605

GRAY,GRAY,TRIM1#

main64271-16030-05iAL25198408-198605

BEIGE,BEIGE,TRIM4#

main64271-16030-15iAL25..EX,GX,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-06017-02×6iAL21..4DS..(EX,SX,VE,VS)198205-198408

DARK WINE,DARK WINE,TRIM3#

main90467-06017-13×6iAL21..4DS..(EX,SX,VE,VS)198205-198408

GRAY,GRAY,TRIM1#

main90467-06017-26×6iAL21..4DS..(EX,SX,VE,VS)198205-198408

BROWN,BROWN,TRIM4#

main90467-07041-03×6iAL25;AL21..4DS..(EX,VE)198408-198605

GRAY,GRAY,TRIM1#

main90467-07041-11×6iAL21..EX,VE; AL25198605-198910

BLACK,BLACK,TRIM2#

main90467-07041-15×6iAL25;AL21..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main90467-07041-45×6iAL21..EX,VE; AL25..EX,GX,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

64277TRIM, ROOM PARTITION LOWER

main64277-16020-01iAL21..EX,VE198605-198910

BLACK,BLACK,TRIM2#

main64277-16020-02iAL21..4DS..(EX,SX,VE,VS)198205-198408

DARK WINE,DARK WINE,TRIM3#

main64277-16020-03iAL21..4DS..(EX,SX,VE,VS)198205-198408

GRAY,GRAY,TRIM1#

main64277-16020-05iAL21..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main64277-16020-06iAL21..4DS..(EX,SX,VE,VS)198205-198408

BROWN,BROWN,TRIM4#

main64277-16020-13iAL21..4DS..(EX,VE)198408-198605

GRAY,GRAY,TRIM1#

main64277-16020-15iAL21..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

main64277-16030-01iAL25198605-198910

BLACK,BLACK,TRIM2#

main64277-16030-03iAL25198408-198605

GRAY,GRAY,TRIM1#

main64277-16030-05iAL25198408-198605

BEIGE,BEIGE,TRIM4#

main64277-16030-15iAL25..EX,GX,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

64280BOARD ASSY, ROOM PARTITION, LH

main64272-16020-01iAL21..EX,VE198605-198910

BLACK,BLACK,TRIM2#

main64272-16020-02iAL21..4DS..(EX,SX,VE,VS)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main64272-16020-03iAL21..4DS..(EX,SX,VE,VS)198205-198408

GRAY,GRAY,TRIM1#

main64272-16020-05iAL21..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main64272-16020-06iAL21..4DS..(EX,SX,VE,VS)198205-198408

BROWN,BROWN,TRIM4#

main64272-16020-13iAL21..4DS..(EX,VE)198408-198605

GRAY,GRAY,TRIM1#

main64272-16020-15iAL21..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

main64272-16030-01iAL25198605-198910

BLACK,BLACK,TRIM2#

main64272-16030-03iAL25198408-198605

GRAY,GRAY,TRIM1#

main64272-16030-05iAL25198408-198605

BEIGE,BEIGE,TRIM4#

main64272-16030-15iAL25..EX,GX,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

64310BRACKET, PACKAGE TRAY TRIM, RH

main64321-16030iAL2#..4DS198205-198910

64320BRACKET, PACKAGE TRAY TRIM, LH

main64322-16030iAL2#..4DS198205-198910

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-16070-01iAL2#..DX,GX,VC,VL198605-198910

BLACK,BLACK,TRIM2#

main64330-16070-02iAL2#..4DS..(DX,GX,VC,VL)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main64330-16070-03iAL2#..4DS..(DX,GX,VC,VL)198205-198408

GRAY,GRAY,TRIM1#

main64330-16070-05iAL2#..4DS..(DX,GX,VC,VL)198408-198605

BEIGE,BEIGE,TRIM4#

main64330-16070-06iAL2#..4DS..(DX,GX,VC,VL)198205-198408

BROWN,BROWN,TRIM4#

main64330-16070-13iAL2#..4DS..(DX,GX,VC,VL)198408-198605

GRAY,GRAY,TRIM1#

main64330-16070-15iAL2#..DX,GX,VC,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

main64330-16080-02iAL21..4DS..(SX,VS)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main64330-16080-03iAL21..4DS..(SX,VS)198205-198408

GRAY,GRAY,TRIM1#

main64330-16080-06iAL21..4DS..(SX,VS)198205-198408

BROWN,BROWN,TRIM4#

main64330-16090-01iAL21,25..EX,SX,VE,VS198605-198910

BLACK,BLACK,TRIM2#

main64330-16090-02iAL21..4DS..(EX,VE)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main64330-16090-03iAL21..4DS..(EX,VE)198205-198408

GRAY,GRAY,TRIM1#

main64330-16090-05iAL21,25..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main64330-16090-06iAL21..4DS..(EX,VE)198205-198408

BROWN,BROWN,TRIM4#

main64330-16090-13iAL21,25..4DS..(EX,VE)198408-198605

GRAY,GRAY,TRIM1#

main64330-16090-15iAL21,25..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

64371RETAINER, PACKAGE TRAY TRIM

main64371-12010-02×6iAL2#..4DS198205-198408

DARK WINE,RED/MAROON,TRIM3#

main64371-12010-05iAL2#..4DS198408-198605

BEIGE,BEIGE,TRIM4#

main64371-12010-13×6iAL2#..4DS198205-198408

GRAY,GRAY,TRIM1#

main64371-12010-15×6iAL2#..DX,EX,GX,VC,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

main64371-12010-30×6iAL2#..4DS198205-198408

BROWN,TRIM4#

main64371-12010-31×6iAL2#198605-198910

BLACK,BLACK,TRIM2#

main64371-12010-33iAL2#..4DS198408-198605

GRAY,GRAY,TRIM1#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-16020iAL2#..4DS198205-198408

main64711-16021iAL20,21..4DS198408-198910

main64711-16030iAL25198408-198910

64701ASET PLATE, LUGGAGE COMPARTMENT

main58573-12040iAL25198408-198910

main58573-16020iAL21..4DS..(EX,SX,VE,VS)198205-198910

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-16120-03iAL20,21198610-198910

GRAY,GRAY

main64714-16130-03iAL25198610-198910

GRAY,GRAY

64715COVER, LUGGAGE COMPARTMENT, LH

main64715-16120-03iAL20,21198610-198910

GRAY,GRAY

main64715-16130-03iAL25198610-198910

GRAY,GRAY

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-16040-03iAL20,21198610-198910

GRAY,GRAY

main64721-16050-03iAL25198610-198910

GRAY,GRAY

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-16040-03iAL20,21198610-198910

GRAY,GRAY

main64722-16050-03iAL25198610-198910

GRAY,GRAY

64770COVER ASSY, SPARE WHEEL

main64770-16040iAL2#..4DS198205-198408

main64770-16060iAL20,21..4DS198408-198910

main64770-16080iAL25198408-198910

9016740003

main90167-40003

9018304046

main90183-04046

9018904044

main90189-04044

9165140612

main91651-40612

23 parts on this diagram · 2 diagrams in section
