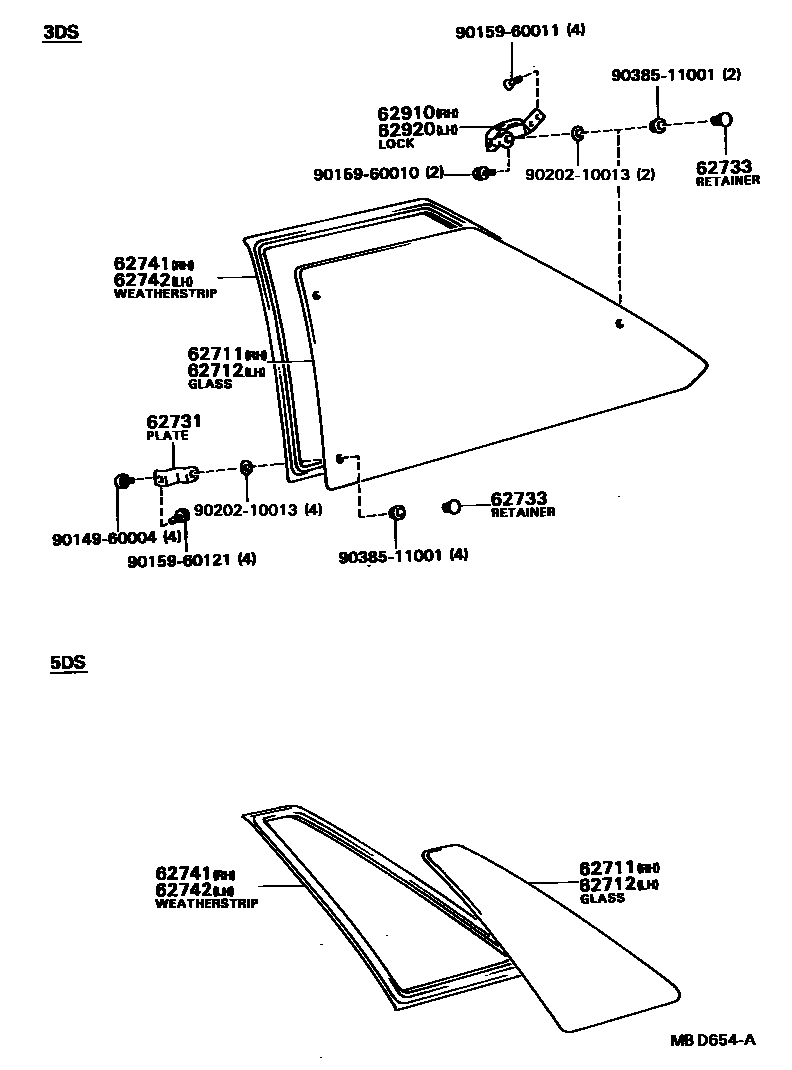

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-16110iAL20,21..3DS198308-198605

*TT,T=4.0

main62711-16120iAL20..3DS..(DX,VC)198504-198605

*TEM,T=4.0

main62711-16150iAL20,21..5DS198205-198605

*TT,T=3.5

main62711-16160iAL20..5DS..(DX,VC)198504-198605

*TEM,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62712-16110iAL20,21..3DS198308-198605

*TT,T=4.0

main62712-16120iAL20..3DS..(DX,VC)198504-198605

*TEM,T=4.0

main62712-16150iAL20,21..5DS198205-198605

*TT,T=3.5

main62712-16160iAL20..5DS..(DX,VC)198504-198605

*TEM,T=3.5

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-16020×4iAL20,21..3DS198308-198605

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62735-14010×6iAL20,21..3DS198308-198605

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-16050iAL20,21..3DS198308-198605

main62741-16070iAL20,21..5DS198205-198605

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-16050iAL20,21..3DS198308-198605

main62742-16070iAL20,21..5DS198205-198605

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-16020iAL20,21..3DS198308-198605

62920LOCK ASSY, QUARTER WINDOW, LH

main62920-16020iAL20,21..3DS198308-198605

9014960004

main90149-60004

9015960010

main90159-60010

9015960011

main90159-60011

9015960121

main90159-60121

9020210013

main90202-10013

9038511001

main90385-11001

14 parts on this diagram · 1 diagram in section
