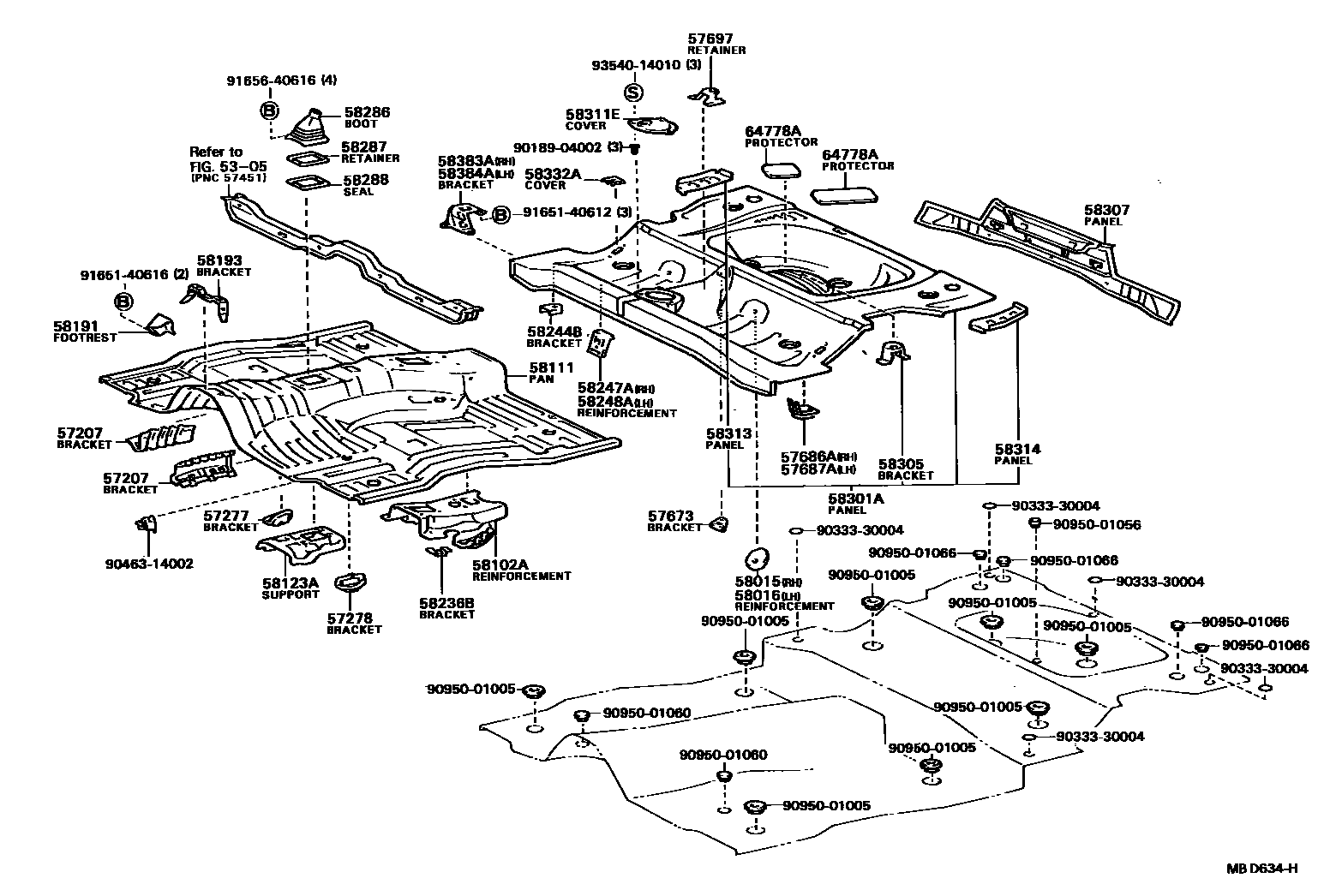

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-16020iAL25198408-198910

RH

main57207-16030iAL20,21198205-198910

RH

main57208-16020iAL25198408-198910

LH

main57208-16030iAL20,21198205-198910

LH

57277BRACKET, CATALYTIC CONVERTER SUPPORT, RH

main57277-16010iAL20,21198205-198910

57278BRACKET, CATALYTIC CONVERTER SUPPORT, LH

main57278-16040iAL20,21198205-198910

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12020iAL25198408-198910

main57673-16010iAL2#..3DS,5DS198205-198408

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57686-16010iAL2#198205-198302

main57686-16011iAL20,21198302-198910

57687ABRACKET, FUEL TANK MOUNTING, REAR LH

main57687-16010iAL2#198205-198302

main57687-16011iAL20,21198302-198910

57697RETAINER, REAR SEAT CUSHION

main57697-16010iAL20,21198205-198910

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-16010iAL20,21198205-198910

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58015-16010iAL20,21198205-198910

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-16010iAL20,21198205-198910

main58102-16030iAL25198408-198910

58111PAN, FRONT FLOOR

main58111-16020iAL20,21198205-198910

main58111-16030iAL25198408-198910

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-16020iAL20,21198205-198506

main58123-16030iAL20,21..3FC198506-198910

58191FOOTREST, FRONT FLOOR

main58191-16020iAL25..3FC;AL25..SX,VS;AL21..3FC..(EX,VE);AL20,21..(3FC,5F)..(DX,GX,SX,VC,VL,VS)198205-198910

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-16020iAL20,21198205-198910

main58193-16030iAL25198408-198910

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010×7iAL2#198205-198910

58244BBRACKET, REAR SEAT CUSHION MOUNTING

main58244-16010×4iAL20,21198408-198605

PLANT NO.P11

main58244-16030×4iAL20,21198408-198605

PLANT NO.A32

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-16010iAL20,21..3DS,5DS198205-198605

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-16010iAL20,21..3DS,5DS198205-198605

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-16050iAL20,21..4F..(DX,VC)198205-198910

main58286-16060iAL25..6F198408-198910

main58286-16070iAL20..(3DS,5DS)..4F..(DX,VC)198504-198605

DX EXTRA OR VC EXTRA

58287RETAINER, SHIFT LEVER BOOT

main58087-16010iAL20,21..MTM..(GX,SX,VE,VL,VS)198205-198910

main58087-16020iAL25..6F198408-198910

main58287-16010iAL20,21..4F..(DX,VC)198205-198910

58288SEAL, SHIFT LEVER BOOT

main58288-16011iAL20,21..MTM198205-198910

main58288-16030iAL25..6F198408-198910

58301APANEL SUB-ASSY, REAR FLOOR

main58301-16140iAL2#..4DS198205-198408

main58301-16170iAL20,21..4DS198408-198910

main58301-16190iAL25198408-198910

main58301-16901iAL20,21..3DS,5DS198205-198605

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAL2#198205-198910

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-16260iAL20,21..3DS,5DS198205-198605

main58307-16290iAL2#..4DS198205-198408

main58307-16300iAL2#..4DS198408-198910

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-16020iAL20,21198205-198910

main58325-16030iAL25198408-198910

58313PANEL, REAR FLOOR SIDE, RH

main58313-16020iAL20,21..3DS,5DS198205-198605

main58313-16040iAL2#..4DS198205-198408

main58313-16070iAL20,21..4DS198408-198910

main58313-16080iAL25198408-198910

58314PANEL, REAR FLOOR SIDE, LH

main58314-16020iAL20,21..3DS,5DS198205-198605

main58314-16040iAL2#..4DS198205-198408

main58314-16070iAL20,21..4DS198408-198910

main58314-16080iAL25198408-198910

58332ACOVER, REAR FLOOR SIDE SERVICE HOLE

main58331-16010iAL20,21..3DS,5DS198205-198605

RH

main58332-16010iAL20,21..3DS,5DS198205-198605

LH

58383ABRACKET, REAR SEAT SUPPORT, RH

main58215-16010iAL20,21198205-198910

main58244-16020iAL25198408-198910

58384ABRACKET, REAR SEAT SUPPORT, LH

main58216-16010iAL20,21198205-198910

main58245-16010iAL25198408-198910

64778APROTECTOR, SPARE WHEEL

main64759-16030iAL20,21198408-198910

230 X 125

main64778-12010×2iAL2#..4DS198205-198408

main64778-12020iAL20,21198408-198910

240 X 110

main64778-16010iAL2#..3DS,5DS198205-198408

270 X 150

9018904002

main90189-04002

9033330004

main90333-30004

9046314002

main90463-14002

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001066

main90950-01066

9165140612

main91651-40612

9165140616

main91651-40616

9165640616

main91656-40616

9354014010

main93540-14010

43 parts on this diagram · 4 diagrams in section
