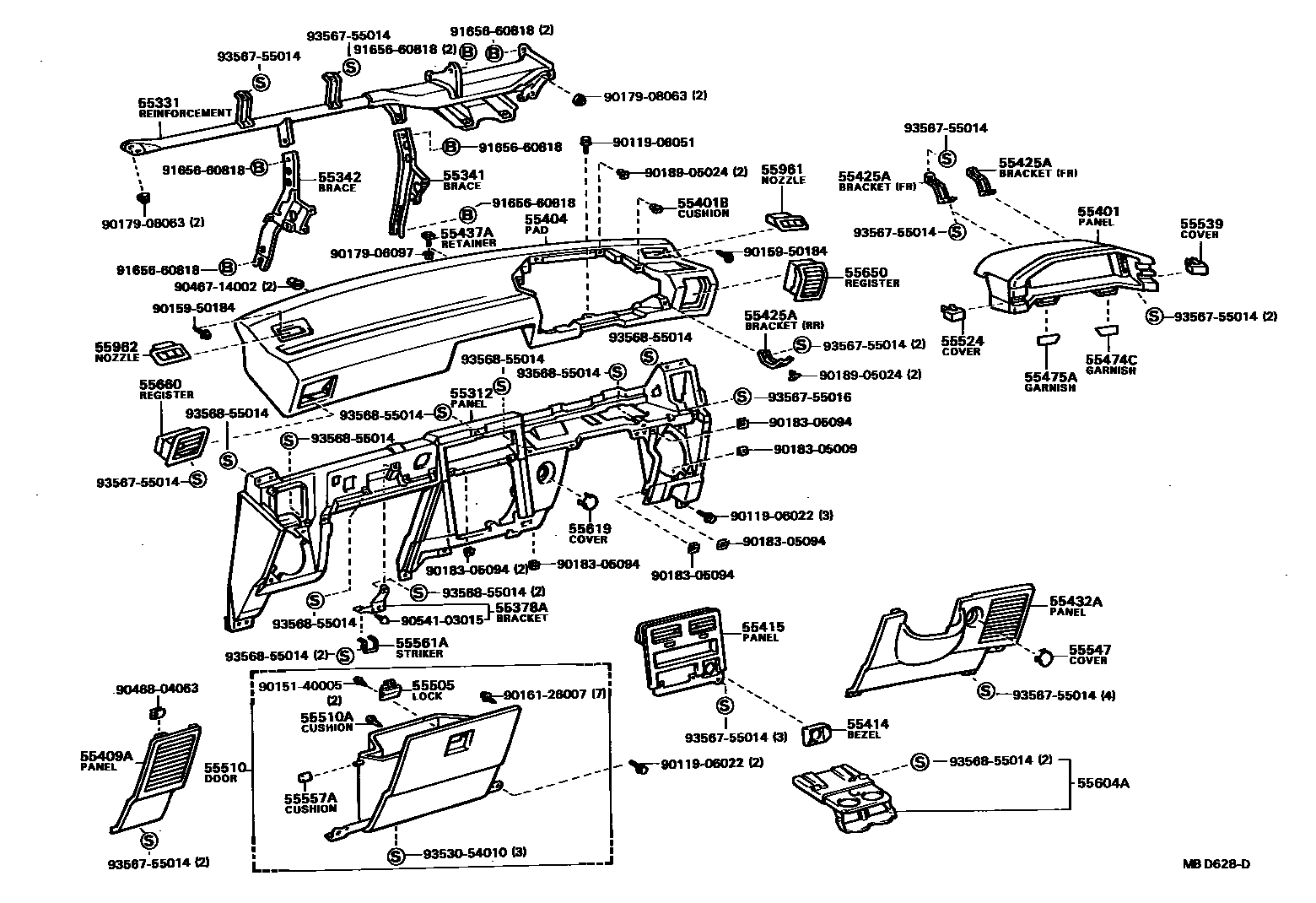

INSTRUMENT PANEL & GLOVE COMPARTMENT

55312PANEL, INSTRUMENT, LOWER

main55312-16010-01iAL2#198605-198910

BLACK,BLACK,TRIM2#

main55312-16010-02iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

DARK WINE,RED/MAROON,TRIM3#

main55312-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55312-16010-05iAL2#..4DS198408-198605

BEIGE,BEIGE,TRIM4#

main55312-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55312-16010-13iAL2#198408-198605

GRAY,GRAY,TRIM1#

main55312-16010-15iAL2#..DX,EX,GX,VC,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16010iAL2#198205-198309

main55330-16011iAL2#198309-198910

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-16030iAL2#198205-198910

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-16030iAL2#198205-198910

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-16010iAL2#198205-198910

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-16050-01iAL2#..DX,GX,SX,VC,VL,VS198605-198910

BLACK,BLACK,TRIM2#

main55404-16050-02iAL2#..DX,GX,SX,VC,VL,VS198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55404-16050-03iAL2#..DX,GX,SX,VC,VL,VS198205-198408

GRAY,GRAY,TRIM1#

main55404-16050-05iAL2#..4DS..(DX,GX,VC,VL)198408-198605

BEIGE,BEIGE,TRIM4#

main55404-16050-06iAL2#..DX,GX,SX,VC,VL,VS198205-198408

BROWN,BROWN,TRIM4#

main55404-16050-13iAL2#..DX,GX,SX,VC,VL,VS198408-198605

GRAY,GRAY,TRIM1#

main55404-16050-15iAL2#..DX,GX,VC,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

main55404-16070-01iAL21,25..EX,VE198605-198910

BLACK,BLACK,TRIM2#

main55404-16070-02iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

W/*TIS,DARK WINE,RED/MAROON,TRIM3#

main55404-16070-03iAL21..EX,VE198205-198408

GRAY,GRAY,TRIM1#

main55404-16070-05iAL21,25..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main55404-16070-06iAL21..EX,VE198205-198408

BROWN,BROWN,TRIM4#

main55404-16070-13iAL20,21..(3DS,5DS)..(GX,SX,VL,VS); AL21,25..EX,VE198408-198605

GRAY,GRAY,TRIM1#; W/*TIS,GRAY,GRAY,TRIM1#

main55404-16070-15iAL21,25..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-16010×2iAL2#198205-198910

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-16040-01iAL2#198605-198910

BLACK,BLACK,TRIM2#

main55401-16040-02iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

DARK WINE,DARK WINE,TRIM3#

main55401-16040-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55401-16040-05iAL2#..4DS198408-198605

BEIGE,BEIGE,TRIM4#

main55401-16040-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55401-16040-13iAL2#198408-198605

GRAY,GRAY,TRIM1#

main55401-16040-15iAL2#..DX,EX,GX,VC,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55409-16010-01iAL20,21; AL25..GX,SX,VL,VS198605-198910

BLACK,BLACK,TRIM2#

main55409-16010-02iAL2#198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55409-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55409-16010-05iAL2#..4DS198408-198605

BEIGE,BEIGE,TRIM4#

main55409-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55409-16010-13iAL2#198408-198605

GRAY,GRAY,TRIM1#

main55409-16010-15iAL20,21; AL25..GX,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

main55409-16030-01iAL25..EX,VE198605-198910

BLACK,BLACK,TRIM2#

main55409-16030-05iAL25..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-16030iAL2#..DX,GX,SX,VC,VL,VS198205-198408

main55477-16040iAL2#198408-198910

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-16010iAL2#198205-198408

main55405-16011iAL2#198408-198602

main55405-16012iAL2#198602-198605

main55405-16013iAL2#198605-198910

55425ABRACKET, METER HOOD SET

main55425-16030×2iAL2#198205-198910

FR

main55426-16030×2iAL2#198205-198910

RR

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-16020-01iAL2#..DX,GX,SX,VC,VL,VS198605-198910

BLACK,BLACK,TRIM2#

main55432-16020-02iAL2#..DX,GX,SX,VC,VL,VS198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55432-16020-03iAL2#..DX,GX,SX,VC,VL,VS198205-198408

GRAY,GRAY,TRIM1#

main55432-16020-05iAL2#..4DS..(DX,GX,VC,VL)198408-198605

BEIGE,BEIGE,TRIM4#

main55432-16020-06iAL2#..DX,GX,SX,VC,VL,VS198205-198408

BROWN,BROWN,TRIM4#

main55432-16020-13iAL2#..DX,GX,SX,VC,VL,VS198408-198605

GRAY,GRAY,TRIM1#

main55432-16020-15iAL2#..DX,GX,VC,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

main55432-16040-01iAL21..EX,VE198605-198910

BLACK,BLACK,TRIM2#

main55432-16040-02iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

W/*TIS,DARK WINE,RED/MAROON,TRIM3#

main55432-16040-03iAL21..EX,VE198205-198408

GRAY,GRAY,TRIM1#

main55432-16040-05iAL21,25..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main55432-16040-06iAL21..EX,VE198205-198408

BROWN,BROWN,TRIM4#

main55432-16040-13iAL20,21..(3DS,5DS)..(GX,SX,VL,VS); AL21,25..EX,VE198408-198605

GRAY,GRAY,TRIM1#; W/*TIS,GRAY,GRAY,TRIM1#

main55432-16040-15iAL21..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

main55432-16110-01iAL25..EX,VE198605-198910

BLACK,BLACK,TRIM2#

main55432-16110-05iAL25..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-16020iAL2#198205-198910

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55474-16010iAL21,25..EX,SX,VE,VS198201-198910

main55474-16030iAL2#..DX,GX,VC,VL198201-198910

55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

main55475-16010iAL21,25..EX,SX,VE,VS198205-198910

main55475-16030iAL2#..DX,GX,VC,VL198201-198910

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-02iAL2#198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55560-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55560-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55560-16020-01iAL2#198605-198910

BLACK,BLACK,TRIM2#

main55560-16020-02iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

DARK WINE,DARK WINE,TRIM3#

main55560-16020-03iAL2#198408-198605

GRAY,GRAY,TRIM1#

main55560-16020-05iAL2#..4DS198408-198605

BEIGE,BEIGE,TRIM4#

main55560-16020-15iAL2#..DX,EX,GX,VC,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16040-01iAL2#198605-198910

BLACK,BLACK,TRIM2#

main55550-16040-02iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

DARK WINE,RED/MAROON,TRIM3#

main55550-16040-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55550-16040-05iAL2#..4DS198408-198605

BEIGE,BEIGE,TRIM4#

main55550-16040-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55550-16040-13iAL2#198408-198605

GRAY,GRAY,TRIM1#

main55550-16040-15iAL2#..DX,EX,GX,VC,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×2iAL2#198205-198910

55524COVER, SWITCH BACE HOLE

main55524-16010iAL20;AL21..4DS;AL21..DX,VC198205-198408

55539COVER, SPARE SWITCH HOLE

main55539-16010iAL20,21..DX,VC198205-198910

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-16010-01iAL2#..DX,GX,SX,VC,VL,VS198605-198910

BLACK,BLACK,TRIM2#

main55547-16010-02iAL2#..DX,GX,SX,VC,VL,VS198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55547-16010-03iAL21..EX,VE198305-198408

GRAY,GRAY,TRIM1#

main55547-16010-05iAL2#..4DS..(DX,GX,VC,VL)198408-198605

BEIGE,BEIGE,TRIM4#

main55547-16010-06iAL2#..DX,GX,SX,VC,VL,VS198205-198408

BROWN,BROWN,TRIM4#

main55547-16010-13iAL2#..DX,GX,SX,VC,VL,VS198408-198605

GRAY,GRAY,TRIM1#

main55547-16010-15iAL2#..DX,GX,VC,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iAL2#198205-198312

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-16020iAL2#198212-198910

main55561-32010iAL2#198205-198212

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-19025iAL20,21; AL25..3FC198605-198910

55619COVER, SWITCH HOLE

main55617-10010-02iAL2#..CRS; AL2#..VC,VL,VS198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55617-10010-03iAL2#..CRS; AL2#..VC,VL,VS198205-198408

GRAY,GRAY,TRIM1#

main55617-10010-05iAL21..EX;AL21..4DS..GX;AL20,25..CRS..4DS; AL25;AL20,21..4DS..(VC,VL)198408-198605

BEIGE,BEIGE,TRIM4#

main55617-10010-11iAL2#..DX,GX,SX,VC,VL,VS; AL21..EX; AL25..EX,VE198605-198910

BLACK,BLACK,TRIM2#

main55617-10010-15iAL2#..DX,GX,VC,VL; AL21..EX; AL25..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

main55617-10010-23iAL2#..CRS; AL25;AL20,21..VC,VL,VS198408-198605

GRAY,GRAY,TRIM1#

main55617-10010-36iAL2#..CRS; AL2#..VC,VL,VS198205-198408

BROWN,BROWN,TRIM4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16030-02iAL2#198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55650-16030-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55650-16030-05iAL2#..4DS198408-198602

BEIGE,BEIGE,TRIM4#

main55650-16030-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55650-16030-13iAL2#198408-198602

GRAY,GRAY,TRIM1#

main55650-16031-02iAL20,21..(3DS,5DS)..(GX,VL)198602-198605

DARK WINE,DARK WINE,TRIM3#

main55650-16031-03iAL2#198602-198605

GRAY,GRAY,TRIM1#

main55650-16031-05iAL2#..4DS198602-198605

BEIGE,BEIGE,TRIM4#

main55650-16032-01iAL2#198605-198910

BLACK,BLACK,TRIM2#

main55650-16032-05iAL2#..DX,EX,GX,VC,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16010-02iAL2#198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55660-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55660-16010-05iAL2#..4DS198408-198602

BEIGE,BEIGE,TRIM4#

main55660-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55660-16010-13iAL2#198408-198602

GRAY,GRAY,TRIM1#

main55660-16011-02iAL20,21..(3DS,5DS)..(GX,VL)198602-198605

DARK WINE,DARK WINE,TRIM3#

main55660-16011-03iAL2#198602-198605

GRAY,GRAY,TRIM1#

main55660-16011-05iAL2#..4DS198602-198605

BEIGE,BEIGE,TRIM4#

main55660-16012-01iAL2#198605-198910

BLACK,BLACK,TRIM2#

main55660-16012-05iAL2#..DX,EX,GX,VC,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-16010-01iAL2#198605-198910

BLACK,BLACK,TRIM2#

main55961-16010-02iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

DARK WINE,RED/MAROON,TRIM3#

main55961-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55961-16010-05iAL2#..4DS198408-198605

BEIGE,BEIGE,TRIM4#

main55961-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55961-16010-13iAL2#198408-198605

GRAY,GRAY,TRIM1#

main55961-16010-15iAL2#..DX,EX,GX,VC,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-16010-01iAL2#198605-198910

BLACK,BLACK,TRIM2#

main55962-16010-02iAL2#198205-198408

DARK WINE,RED/MAROON,TRIM3#

main55962-16010-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main55962-16010-05iAL2#..4DS198408-198605

BEIGE,BEIGE,TRIM4#

main55962-16010-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main55962-16010-13iAL2#198408-198605

GRAY,GRAY,TRIM1#

main55962-16010-15iAL2#..DX,EX,GX,VC,VE,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

9011906022

main90119-06022

9011906051

main90119-06051

9015140005

main90151-40005

9015950184

main90159-50184

9016126007

main90161-26007

9017906097

main90179-06097

9017908063

main90179-08063

9018305009

main90183-05009

9018305094

main90183-05094

9018905024

main90189-05024

9046714002

main90467-14002

9046804063

main90468-04063

9054103015

main90541-03015

9165660818

main91656-60818

9353054010

main93530-54010

9356755014

main93567-55014

9356755016

main93567-55016

9356855014

main93568-55014

48 parts on this diagram · 1 diagram in section
