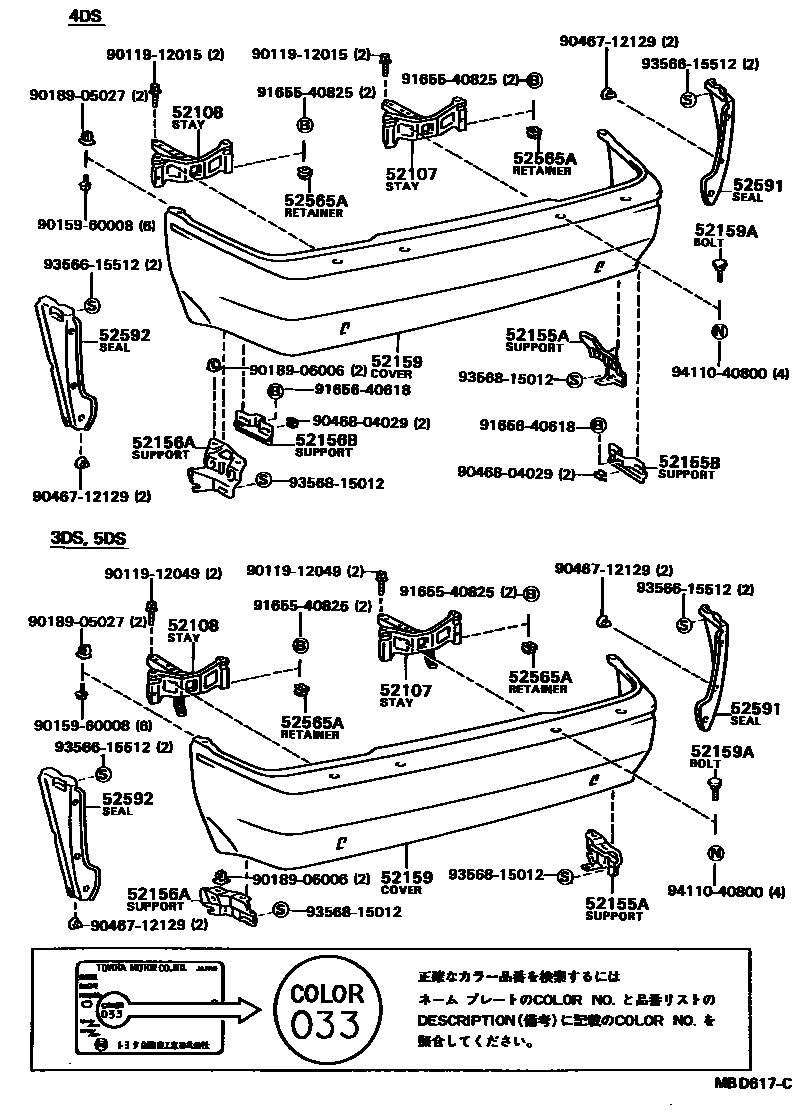

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-16050iAL2#198205-198408

main52015-16120iAL25198408-198910

main52015-16130iAL20,21..3DS,5DS198408-198605

main52015-16140iAL20,21..4DS198408-198910

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-16050iAL2#198205-198408

main52016-16110iAL25198408-198910

main52016-16120iAL20,21..3DS,5DS198408-198605

main52016-16130iAL20,21..4DS198408-198910

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-16020iAL20,21..3DS,5DS198205-198605

main52155-16040iAL2#..4DS198205-198408

main52155-16070iAL2#..4DS198408-198605

main52155-16071iAL2#198605-198910

52155BSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-16020iAL2#..4DS198205-198408

main52157-16050iAL2#..4DS198408-198605

main52157-16051iAL2#198605-198910

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-16020iAL20,21..3DS,5DS198205-198605

main52156-16040iAL2#..4DS198205-198408

main52156-16070iAL2#..4DS198408-198605

main52156-16071iAL2#198605-198910

52156BSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52157-16020iAL2#..4DS198205-198408

main52158-16050iAL2#..4DS198408-198605

main52158-16051iAL2#198605-198910

52159COVER, REAR BUMPER

main52159-16030-03iAL2#..5DS198205-198301

DARK GRAY,GRAY,391 ,557 ,6G3 ,4C3 ,884; DARK GRAY,GRAY,3B7 ,558

main52159-16030-13iAL2#..5DS198205-198301

LIGHT GRAY,GRAY,038 ,147

main52159-16030-23iAL2#..3DS,5DS198301-198408

0FF BLACK,GRAY,6G3 ,6G5 ,558 ,884; OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557

main52159-16050-02iAL21..3DS198308-198408

SPORTS-5,RED,RED/MAROON,3D7

main52159-16050-03iAL21..5DS..VE198301-198308

SILVER-M,GRAY,2J2

main52159-16050-13iAL21..5DS..VE198205-198301

SILVER-M,GRAY,2J2

main52159-16050-23iAL21..5DS..EX198301-198308

SILVER-M,GRAY,2N5

main52159-16050-33iAL21..3DS198308-198408

SPORTS-5,SILVER-M,GRAY,2S3

main52159-16080-03iAL2#..4DS198205-198301

DARK GRAY,GRAY,3B7 ,557 ,4C3 ,391 ,884; DARK GRAY,GRAY,6G3 ,558

main52159-16080-13iAL2#..4DS198205-198301

LIGHT GRAY,GRAY,038 ,147

main52159-16080-23iAL2#..4DS198301-198408

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557; OFF BLACK,GRAY,6G3 ,6G5 ,558

main52159-16090iAL21..4DS..EX198205-198301

LIGHT BROWN-M(2J1)

main52159-16160iAL20,21..3DS,5DS198408-198605

BLACK

main52159-16180iAL2#..4DS198408-198910

BLACK

main52159-16200-02iAL20..(3DS,5DS)..(GX,VL)198512-198605

SOPHIA,CUTIE,RED,RED,3E6

main52159-16200-03iAL20,21..3DS..(GX,SX,VL,VS)198408-198605

SILVER-M,SILVER METALLIC,2W4 ,2J3

main52159-16200-05iAL21..3DS198408-198605

BEIGE-M,LIGHT BEIGE METALLIC,2T0

main52159-16200-08iAL20..(3DS,5DS)..(GX,VL)198512-198605

SOPHIA,CUTIE,WHITE,WHITE,041

main52159-16230-02iAL21,25..EX,SX,VE,VS198605-198910

RED,RED,3E6

main52159-16230-03iAL25..EX,VE198509-198605

EX EXTRA,VE EXTRA,SILVER,SILVER METALLIC,147

main52159-16230-04iAL21,25..EX,SX,VE,VS198605-198805

BLUE-M,BLUE METALLIC,8D7 ,27B

main52159-16230-05iAL21,25..EX,VE198605-198910

BEIGE,BEIGE METALLIC,4G8

main52159-16230-08iAL20,21..GX; AL20,21..VL198908-198910

main52159-16230-13iAL21,25..EX,SX,VE,VS198605-198805

GRAY-M,WARM GRAY METALLIC,165

main52159-16230-23iAL21,25..EX,SX,VE,VS198805-198910

GRAY-M,GRAY M,168

52159ABOLT(FOR REAR BUMPER COVER)

main90112-08032-01×4iAL2#198408-198910

BLACK,BLACK

main90112-08032-03×4iAL2#198205-198301

LIGHT GRAY,GRAY,038 ,147

main90112-08032-13×4iAL2#198205-198301

DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; DARK GRAY,GRAY,4C3 ,558 ,884

main90112-08032-23×4iAL2#198301-198408

OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557; OFF BLACK,GRAY,6G3 ,6G5 ,558

main90112-08055×4iAL21..4DS..EX198205-198301

LIGHT BROWN-M(2J1)

main90112-08057-02×4iAL21..3DS198308-198408

SPORTS-5,RED,RED/MAROON,3D7

main90112-08057-03×4iAL20,21..3DS..(GX,SX,VL,VS)198408-198605

SILVER,GRAY,2W4 ,2J3

main90112-08057-04×4iAL21,25..EX,SX,VE,VS198605-198910

BLUE-M,BLUE METALLIC,8D7 ,27B

main90112-08057-05×4iAL21..3DS198408-198605

BEIGE-M,LIGHT BEIGE METALLIC,2T0

main90112-08057-08×4iAL20,21..GX; AL20,21..VL198908-198910

main90112-08057-12×4iAL20..(3DS,5DS)..(GX,VL)198512-198605

SOPHIA,CUTIE,RED,RED,3E6

main90112-08057-13×4iAL21,25..EX,SX,VE,VS198605-198805

GRAY-M,WARM GRAY METALLIC,165

main90112-08057-15×4iAL21,25..EX,VE198605-198910

BEIGE-M,BEIGE,4G8

52565ARETAINER, REAR BUMPER, LOWER

main52565-16020×4iAL2#198205-198910

52591SEAL, REAR BUMPER SIDE, RH

main52591-16040iAL20,21..3DS,5DS198408-198605

52592SEAL, REAR BUMPER SIDE, LH

main52592-16030iAL20,21..3DS,5DS198408-198605

9011912015

main90119-12015

9011912049

main90119-12049

9015960008

main90159-60008

9018905027

main90189-05027

9018906006

main90189-06006

9046712129

main90467-12129

9046804029

main90468-04029

9165540825

main91655-40825

9165640618

main91656-40618

9356615512

main93566-15512

9356815012

main93568-15012

9411040800

main94110-40800
