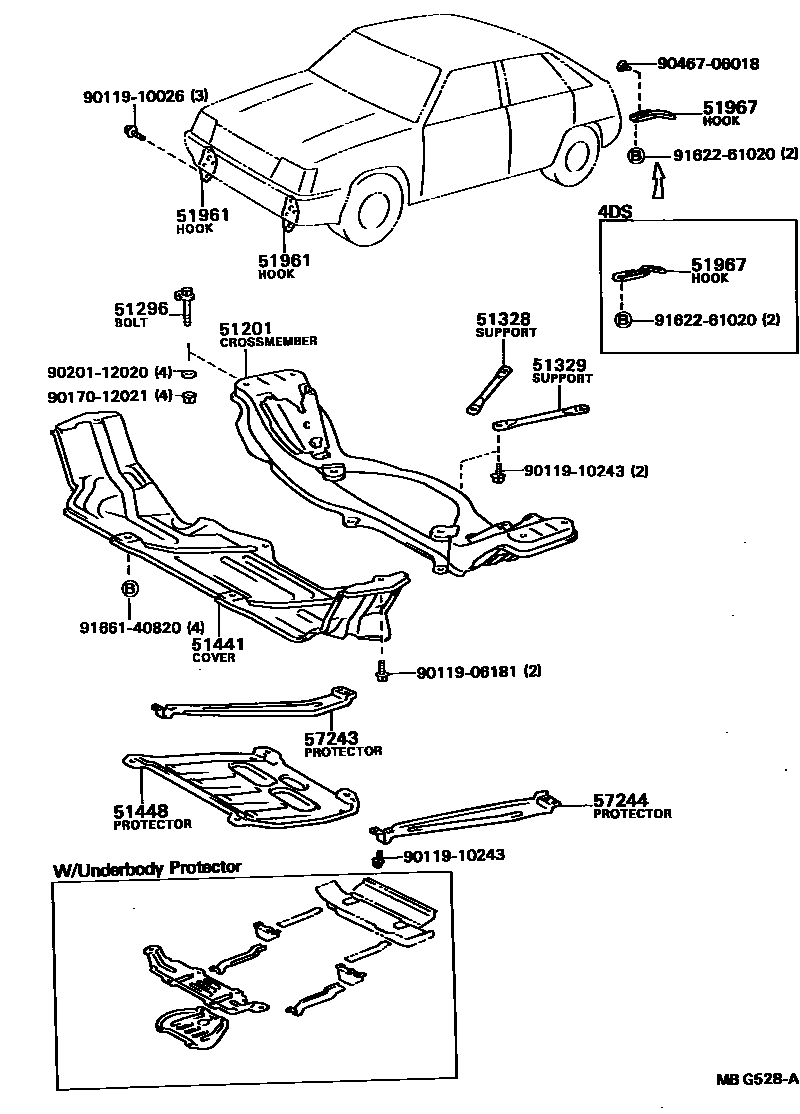

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-16030iAL20,21198205-198910

main51201-16050iAL2#..EX,GX,VE,VL198211-198408

W/POWER STEERING

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-22020×4iAL2#198205-198910

51328SUPPORT, FRONT SUSPENSION MEMBER, RH

main51328-16010iAL2#198205-198910

51329SUPPORT, FRONT SUSPENSION MEMBER, LH

main51329-16010iAL2#198205-198910

51441COVER, ENGINE UNDER, NO.1

main51441-16020iAL21;AL20..GX,VL;AL20..(4DS,5DS)..(DX,VC)198205-198406

main51441-16021iAL21;AL20..GX,VL;AL20..(4DS,5DS)..(DX,VC)198406-198910

main51447-16011iAL25198408-198910

51448PROTECTOR, OIL PAN

main51447-16020iAL25198408-198910

W/UNDER BODY PROTECTOR

51961HOOK, NO.1

main51093-16010iAL21..3DS198408-198605

SPORTS PACKAGE,RH

main51094-16010iAL21..3DS198408-198605

SPORTS PACKAGE,LH

main51963-16020×2iAL2#198205-198910

51967HOOK, TRANSPORT, REAR

main51095-16030×2iAL20,21..4DS198408-198910

main51095-16040iAL25198408-198910

RH

main51095-16050×2iAL20,21..3DS,5DS198408-198605

main51096-16030iAL25198408-198910

LH

57243PROTECTOR, LOWER ARM, RH

main57243-16010iAL25198408-198910

W/UNDER BODY PROTECTOR

57244PROTECTOR, LOWER ARM, LH

main57244-16010iAL25198408-198910

W/UNDER BODY PROTECTOR

9011906181

main90119-06181

9011910026

main90119-10026

9011910243

main90119-10243

9017012021

main90170-12021

9020112020

main90201-12020

9046706018

main90467-06018

9162261020

main91622-61020

9166140820

main91661-40820

18 parts on this diagram · 1 diagram in section
