Toyota CORSA/TERCEL — BRAKE TUBE & CLAMP

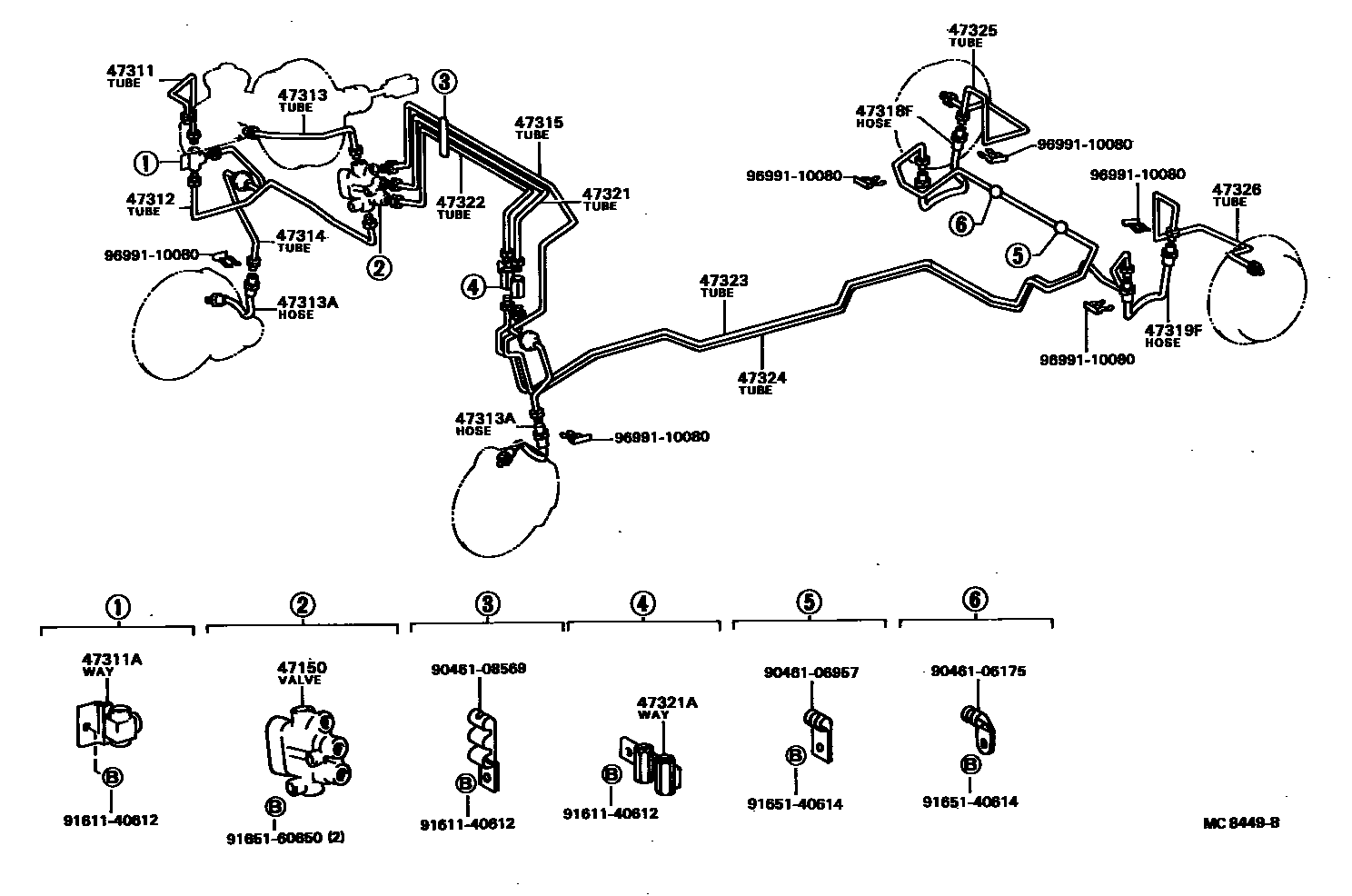

Parts diagram

47150VALVE ASSY, PROPORTIONING

47311TUBE, FRONT BRAKE, NO.1

47311AWAY(FOR FRONT BRAKE TUBE)

47312TUBE, FRONT BRAKE, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47314TUBE, FRONT BRAKE, NO.4

47315TUBE, FRONT BRAKE, NO.5

47318FHOSE, FLEXIBLE(FOR REAR RH)

47319FHOSE, FLEXIBLE(FOR REAR LH)

47321TUBE, REAR BRAKE, NO.1

47321AWAY(FOR REAR BRAKE TUBE)

47322TUBE, REAR BRAKE, NO.2

47323TUBE, REAR BRAKE, NO.3

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47326TUBE, REAR BRAKE, NO.6

9046106175

9046106957

9046108569

9161140612

9165140614

9165160650

9699110080

24 parts on this diagram · 2 diagrams in section

BRAKE TUBE & CLAMP for Toyota CORSA/TERCEL

This section contains 26 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota CORSA/TERCEL. Key components include: VALVE ASSY, PROPORTIONING, TUBE, FRONT BRAKE, NO.1, WAY(FOR FRONT BRAKE TUBE), TUBE, FRONT BRAKE, NO.2, TUBE, FRONT BRAKE, NO.3.
