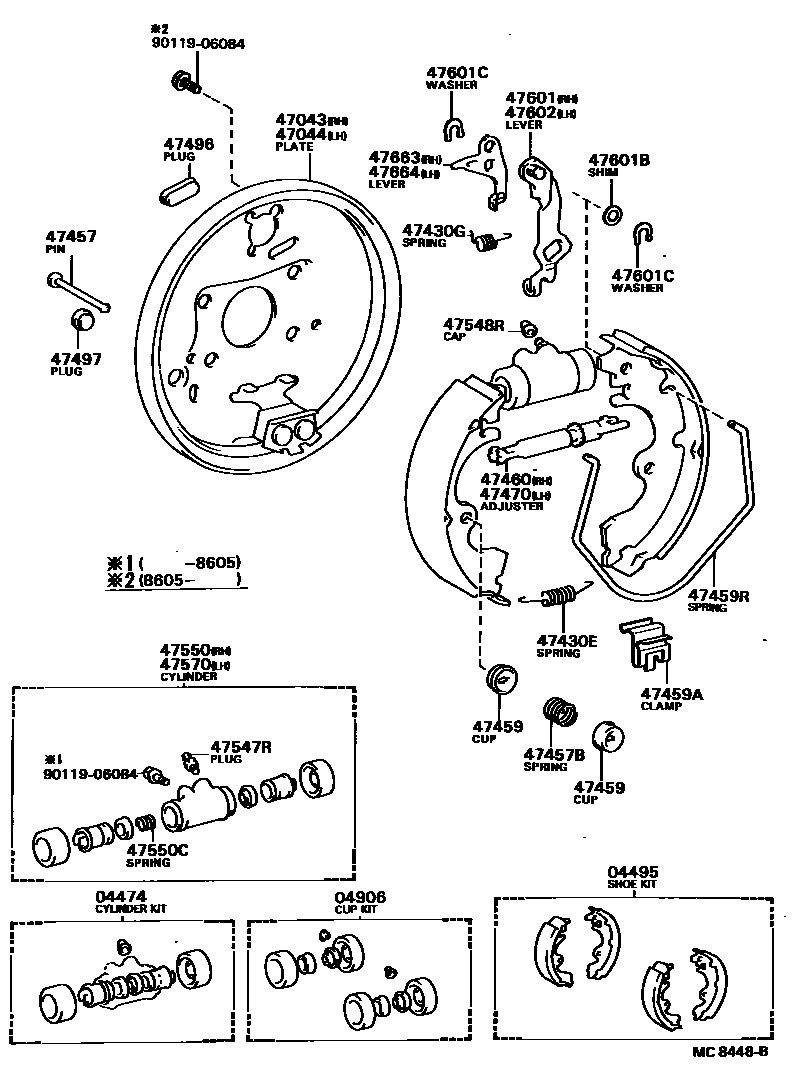

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-10032iAL25198408-198910

sub04474-63020

main04474-16020iAL20,21198205-198910

04495SHOE KIT, REAR BRAKE

main04495-16020iAL20,21198205-198910

sub04495-16021

main04495-16030iAL25198408-198711

main04495-16060iAL25198711-198910

sub04495-16061

main04497-16020iAL20,21198205-198910

REBUILT

sub04497-16021

main04497-16030iAL25198408-198711

REBUILT

sub04497-16031

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iAL25198408-198910

main04906-16020iAL20,21198205-198910

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-16020iAL20,21198205-198604

sub47043-16040

main47043-16030iAL25198408-198910

main47043-16040iAL20,21198604-198910

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-16020iAL20,21198205-198604

sub47044-16040

main47044-16030iAL25198408-198910

main47044-16040iAL20,21198604-198910

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18014iAL20,21198205-198910

main90506-18299iAL25198408-198910

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12014iAL20,21198205-198910

main90506-12276iAL25198408-198910

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010iAL25198408-198910

main47447-20010iAL20,21198205-198910

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main47446-10010iAL25198408-198910

main90501-16062iAL20,21198205-198910

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iAL20,21198205-198910

47459ACLAMP(FOR SHOE RETURN SPRING)

main90468-05041iAL2#198205-198408

sub90468-05063

main90468-05063iAL20,21198408-198910

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-16020iAL20,21198205-198910

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-12020iAL25198408-198910

main47061-16020iAL20,21198205-198611

sub47061-16030

main47061-16030iAL20,21198611-198910

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-12020iAL25198408-198910

main47062-16020iAL20,21198205-198611

sub47062-16030

main47062-16030iAL20,21198611-198910

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAL2#198205-198910

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47492-32010iAL2#198205-198910

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAL2#198205-198910

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAL2#198205-198910

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-10042iAL25198608-198910

main47550-16030iAL20,21198605-198910

sub47550-20120

main47550-19097iAL25198408-198608

sub47550-10042

main47550-19155iAL20,21198205-198605

sub47550-16030

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAL2#198205-198910

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-10042iAL25198608-198910

main47550-19097iAL25198408-198608

sub47550-10042

main47570-16010iAL20,21198605-198910

sub47570-20030

main47570-19035iAL20,21198205-198605

sub47570-16010

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-16010iAL20,21198205-198910

main47611-12011iAL25198408-198711

main47611-12050iAL25198711-198910

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAL2#198205-198910

main90564-08151iAL20,21198205-198910

main90564-08152iAL2#198205-198910

main90564-08172iAL2#198205-198910

main90564-08173iAL2#198205-198910

main90564-08174iAL2#198205-198910

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAL2#198205-198910

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-16010iAL20,21198205-198910

main47612-12011iAL25198408-198711

main47612-12050iAL25198711-198910

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-12011iAL25198408-198711

main47643-12030iAL25198711-198910

main47643-16010iAL20,21198205-198910

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-12011iAL25198408-198711

main47644-12030iAL25198711-198910

main47644-16010iAL20,21198205-198910

9011906084

main90119-06084
