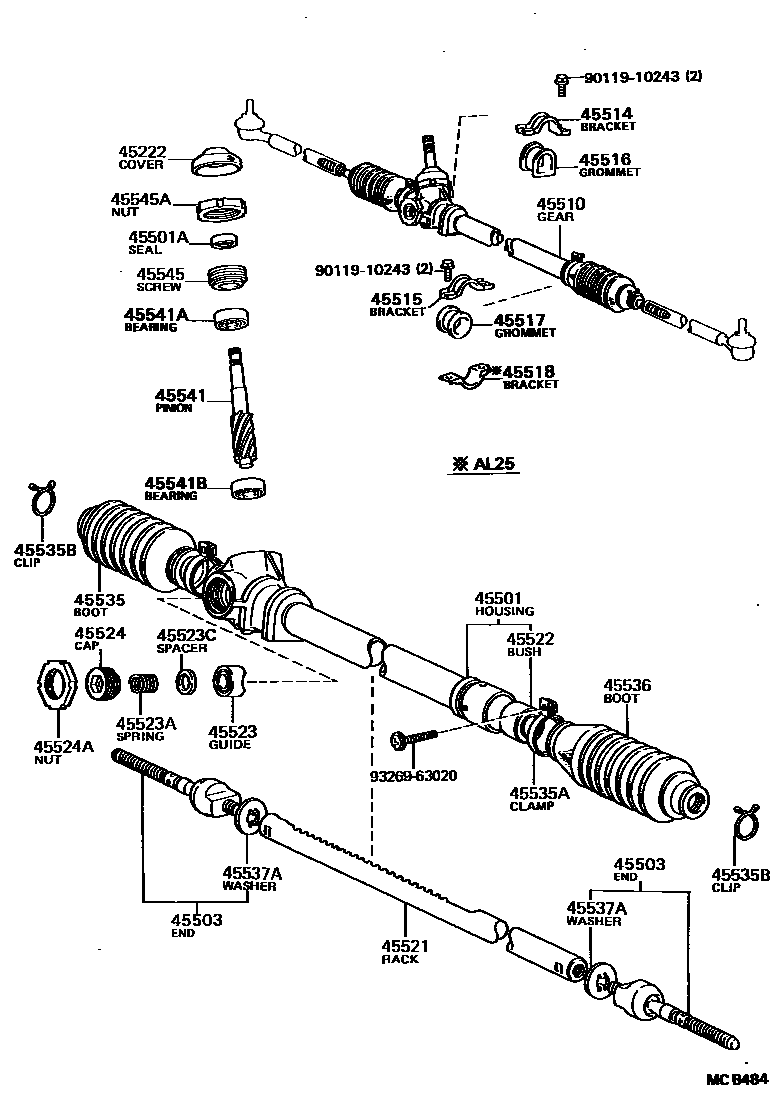

FRONT STEERING GEAR & LINK

0001 1 0002 1W/POWER STEERING 0003 1W/POWER STEERING 0004 1

45222COVER, STEERING GEAR DUST

main45222-10030iAL2#198205-198910

45501HOUSING SUB-ASSY, STEERING RACK

main45501-16131iAL2#198311-198407

sub45501-16132

main45501-16132iAL20,21198407-198910

main45501-16142iAL25..EX,GX,VE,VL,VS198408-198910

main45501-16210iAL2#198205-198311

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iAL2#198205-198910

sub90311-15002

45503END SUB-ASSY, STEERING RACK

main45503-19025iAL2#198205-198910

45510GEAR ASSY, STEERING

main45510-16070iAL2#198205-198407

sub45510-16071

main45510-16071iAL20,21198407-198910

main45510-16081iAL25..GX,SX,VL,VS198408-198910

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16020iAL2#198205-198910

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-16020iAL2#198205-198910

main45515-16030iAL21..EX,GX,VE,VL198205-198910

W/POWER STEERING

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16020iAL2#198205-198605

sub45516-16030

main45516-16030iAL2#198605-198910

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10010iAL2#198205-198910

main45517-16030iAL21..EX,GX,VE,VL198205-198910

W/POWER STEERING

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-16010iAL25198408-198910

45522BUSH, STEERING RACK

main45501-16142iAL20,21198605-198910

main45522-10021iAL2#198311-198407

main45522-10030iAL2#198205-198311

main45522-17010iAL2#198407-198910

sub45522-17020

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-16011iAL2#198205-198910

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23007iAL2#198205-198910

45523CSPACER(FOR RACK GUIDE)

main90560-23003iAL2#198205-198910

45524CAP, STEERING RACK GUIDE SPRING

main45524-16010iAL2#198205-198910

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36001iAL2#198205-198910

45535BOOT, STEERING RACK, NO.1

main45535-12011iAL2#198205-198910

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10273iAL2#198205-198910

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iAL2#198205-198910

45536BOOT, STEERING RACK, NO.2

main45536-12011iAL2#198205-198910

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14002iAL2#198205-198910

45541PINION, STEERING

main45541-16071iAL2#198205-198910

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15003iAL2#198205-198910

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-13001iAL2#198205-198910

45545SCREW, PINION BEARING ADJUSTING

main45545-10010iAL2#198205-198910

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001iAL2#198205-198910

9011910243

main90119-10243

9326963020

main93269-63020

28 parts on this diagram · 4 diagrams in section
