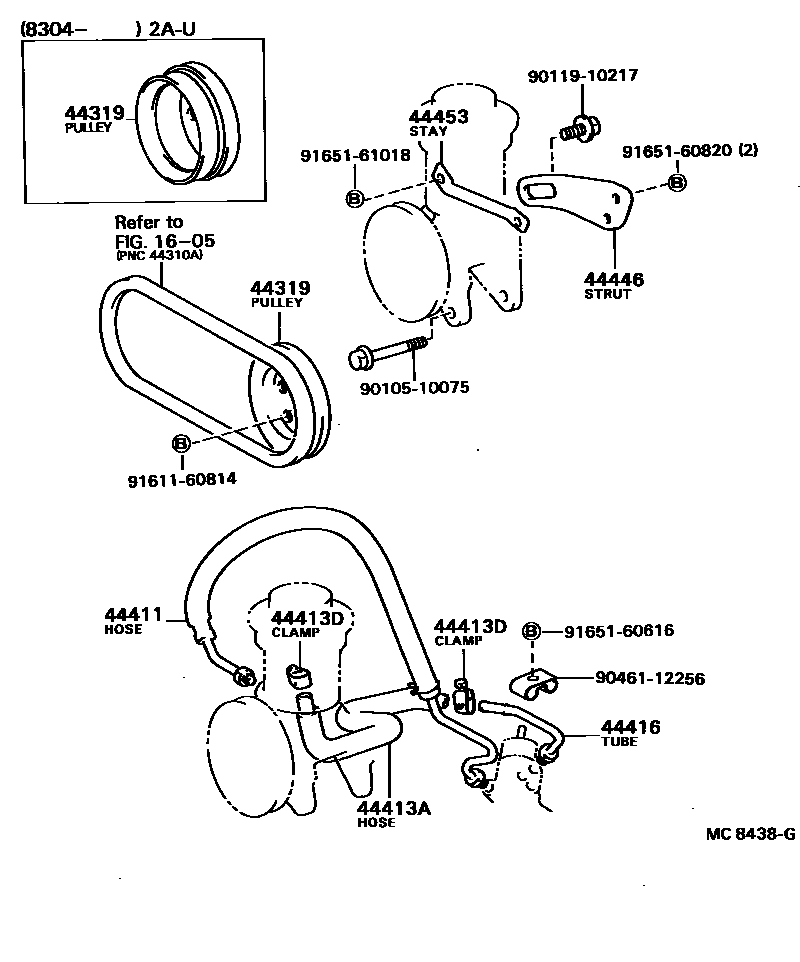

POWER STEERING TUBE

1605V-BELT

→ Go to FIG 16-05

44319PULLEY, VANE PUMP DRIVE

main44319-12011iAL21,25198408-198910

main44319-16010iAL20..GX,VL198304-198408

44411HOSE, PRESSURE FEED

main44411-16010iAL21..EX,GX,VE,VL198205-198208

main44411-16011iAL21..EX,GX,VE,VL198208-198301

main44411-16012iAL21,25..MTM..(SX,VS)198408-198805

main44411-16020iAL2#..EX,GX,VE,VL198406-198408

main44411-16021iAL2#..DX,EX,GX,VC,VE,VL198805-198910

44413AHOSE(FOR RETURN TUBE OUTLET)

main44412-16010iAL2#..EX,GX,VE,VL198301-198408

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001×2iAL21..EX,GX,VE,VL198205-198301

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-16010iAL21..EX,GX,VE,VL198205-198301

44446STRUT, ADJUSTING

main44446-16010iAL21..EX,GX,VE,VL198205-198301

44453STAY, PUMP, FRONT

main44453-16010iAL21..EX,GX,VE,VL198205-198301

main44453-16011iAL2#..EX,GX,VE,VL198405-198408

9010510075

main90105-10075

9011910217

main90119-10217

9046112256

main90461-12256

9161160814

main91611-60814

9165160616

main91651-60616

9165160820

main91651-60820

9165161018

main91651-61018

15 parts on this diagram · 1 diagram in section
