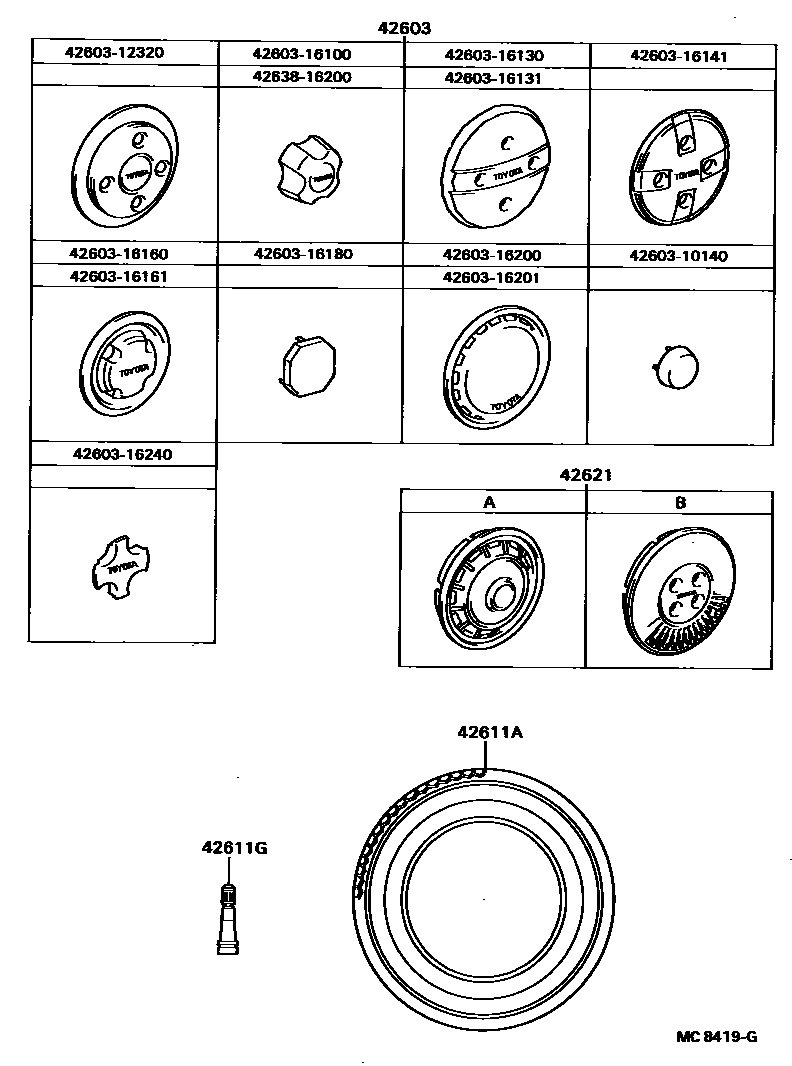

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-10140×4iAL21..SX,VS198408-198605

W/ALUMI & 175/60R14 TIRE

main42603-12320×4iAL25..SX,VS198605-198805

main42603-16100×4iAL2#..DX,GX,VC,VL198205-198309

main42603-16130×4iAL21..VE198205-198310

main42603-16131×4iAL21..VE198310-198605

main42603-16141×4iAL25..GX,VL198605-198910

main42603-16160×4iAL21..SX,VS198205-198310

main42603-16161×4iAL25..EX,VE198408-198605

main42603-16180×4iAL21,25..EX,SX,VE,VS198205-198605

W/ALUMI WHEEL

main42603-16200×4iAL21..SX,VS198408-198512

175/60R14 TIRE

main42603-16201×4iAL21..SX,VS198512-198605

175/60R14 TIRE

main42603-16240×4iAL21,25..EX,SX,VE,VS198605-198910

W/ALUMI WHEEL

main42603-16270×2iAL20,21..GX; AL20,21..VL198908-198910

main42621-16060×2iAL25..GX,VL198710-198910

main42638-16200×4iAL2#..DX,GX,VC,VL198309-198910

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-10160×4iAL21..SX,VS198408-198605

175/60R14

main42652-12420×4iAL21..EX,VE198605-198910

155SR13

main42652-12430×5iAL25..EX,SX,VE,VS198408-198910

175/70SR13,W/ALUMI WHEEL

main42652-16010×4iAL21..EX,VE198605-198910

165/70SR13,W/ALUMI WHEEL

main42652-16120×5iAL20,21..DX,EX,GX,VC,VE,VL198205-198605

145SR13,T/L

main42652-16130×5iAL21..EX,SX,VE,VS198205-198608

165/70SR13,T/L

main42652-16160×5iAL25198408-198910

175/70SR13,ALL WEATHER

main42652-16220iAL20,21198205-198910

T115/70D14,SPARE TIRE

main42652-16250×5iAL25..GX,VL198408-198910

155SR13,ALL WEATHER

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iAL25..EX,SX,VE,VS198605-198910

W/ALUMI WHEEL

main90942-05009×5iAL2#198205-198910

42621CAP, WHEEL

main42621-16010×4iAL21..EX198205-198605

TYPE A

main42621-16060×4iAL21..EX; AL25..EX,VE198605-198910

TYPE B

4260310140ORNAMENT SUB-ASSY, WHEEL HUB

main42603-10140

4260312320ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12320

4260316100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16100

4260316130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16130

4260316131ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16131

4260316141ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16141

4260316160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16160

4260316161ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16161

4260316180ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16180

4260316200ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16200

4260316201ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16201

4260316240ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16240

4263816200

main42638-16200

17 parts on this diagram · 2 diagrams in section
