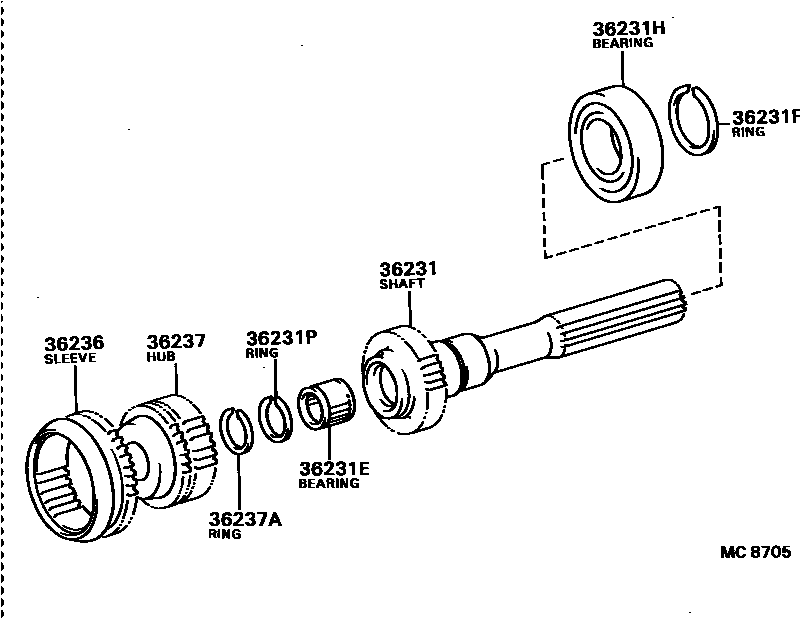

TRANSFER GEAR

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-16010i198408-198910

36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

main90364-18003i198408-198910

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-30200i198408-198910

36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

main90363-32014i198408-198910

36231PRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT FRONT BEARING)

main90520-22004i198408-198910

36236SLEEVE, FRONT DRIVE CLUTCH

main36236-16010i198408-198910

36237HUB, TRANSFER CLUTCH

main36237-16010i198408-198910

36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)

main90520-20001i198408-198910

8 parts on this diagram · 1 diagram in section
