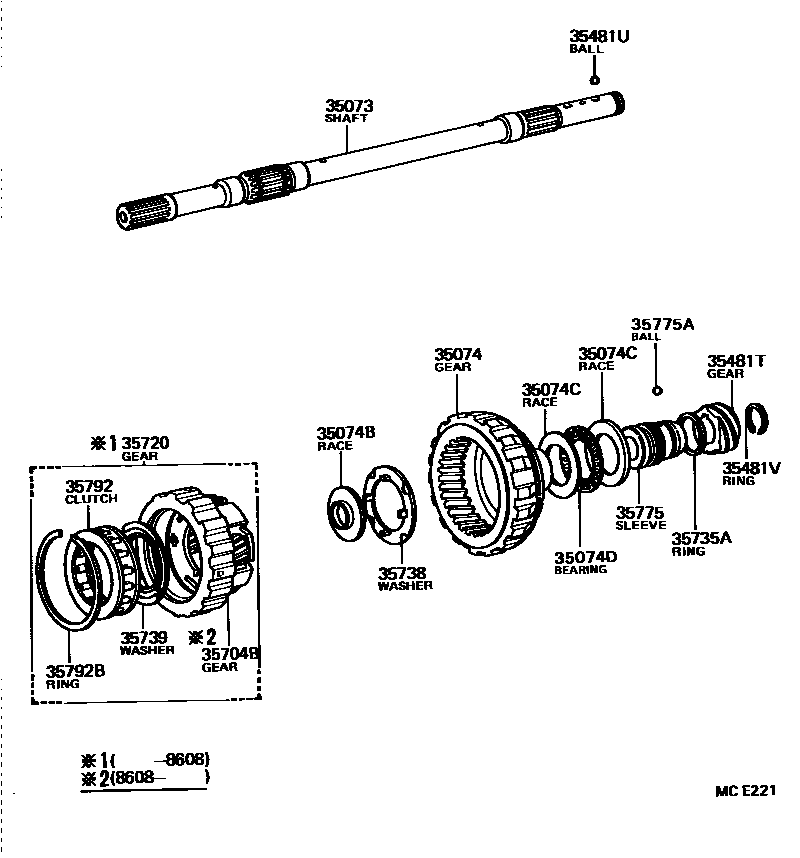

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35073SHAFT SUB-ASSY, OUTPUT

main35073-16011i198205-198910

main35771-16020i198408-198910

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-16020i198205-198310

main35074-16022i198310-198910

main35074-16031i198408-198910

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050i198205-198910

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-16040i198205-198910

FLANGE SIDE

main35789-16200i198205-198910

CASE SIDE

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-32002i198205-198910

35481TGEAR, SPEEDMETER DRIVE (ATM)

main33481-16010i198205-198910

main33481-16030i198408-198910

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-05012×2i198205-198910

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-18266i198205-198910

main96152-00250i198408-198910

35704BGEAR SUB-ASSY, FRONT PLANETARY

main35704-22020i198608-198910

35720GEAR ASSY, FRONT PLANETARY

main35720-14010i198205-198608

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-16010i198306-198910

main35735-30010i198205-198306

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-16011i198205-198910

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-14010i198205-198910

35775SLEEVE, OUTPUT SHAFT

main35775-16011i198205-198306

main35775-16012i198306-198307

main35775-16013i198307-198910

35775ABALL, OUTPUT SHAFT SLEEVE

main90360-05012i198205-198910

35792CLUTCH, 1 WAY, NO.2

main35792-30010i198205-198410

main35792-30011i198410-198910

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148i198205-198910

17 parts on this diagram · 2 diagrams in section
