TRANSMISSION CASE & OIL PAN (ATM)

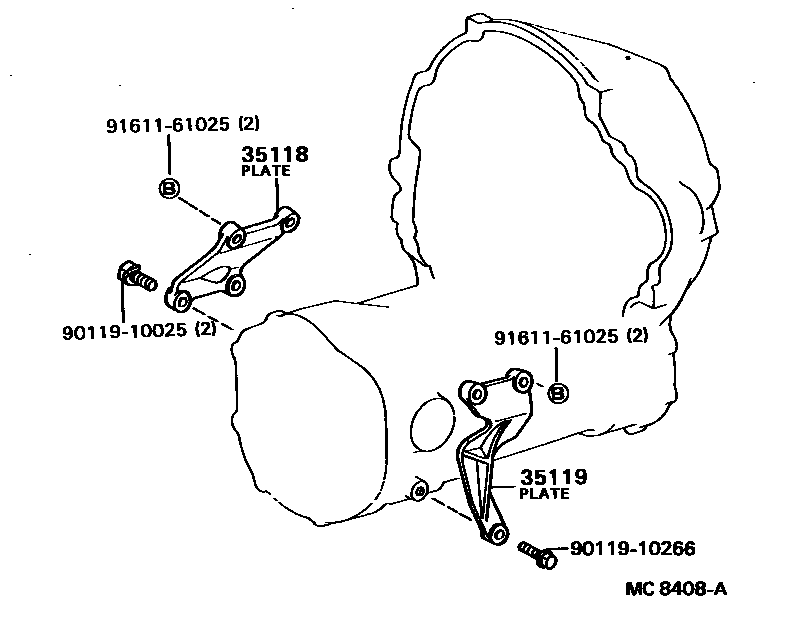

Parts diagram

35118PLATE, STIFENER, RH (ATM)

main33118-16010i198205-198910

35119PLATE, STIFENER, LH (ATM)

main33119-16030i198205-198910

9011910025

main90119-10025

9011910266

main90119-10266

9161161025

main91611-61025

5 parts on this diagram · 3 diagrams in section
