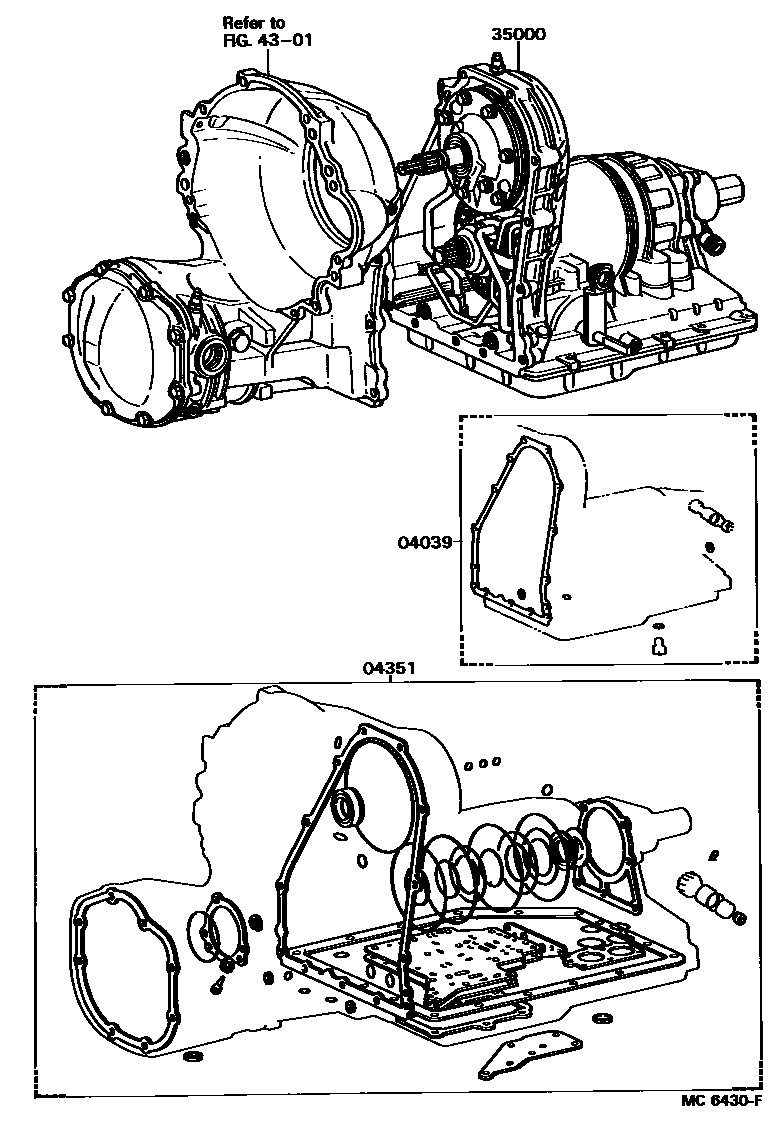

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1 0002 1

04039GASKET KIT, OVERHOLE(ATM)

main04039-16010iAL2#..3FC198205-198910

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-16011iAL2#..3FC198205-198306

main04351-16012iAL20,21..3FC198306-198505

main04351-16020iAL25..3FC198408-198505

main04351-16030iAL20,21..3FC198505-198910

main04351-16040iAL25..3FC198505-198910

35000TRANSMISSION ASSY, AUTOMATIC

main35000-16020iAL2#..3FC198205-198306

main35000-16021iAL20,21..3FC198306-198603

main35000-16022iAL20,21..3FC198603-198910

main35000-16030iAL25..3FC198408-198603

main35000-16031iAL25..3FC198603-198910

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4 parts on this diagram · 2 diagrams in section
