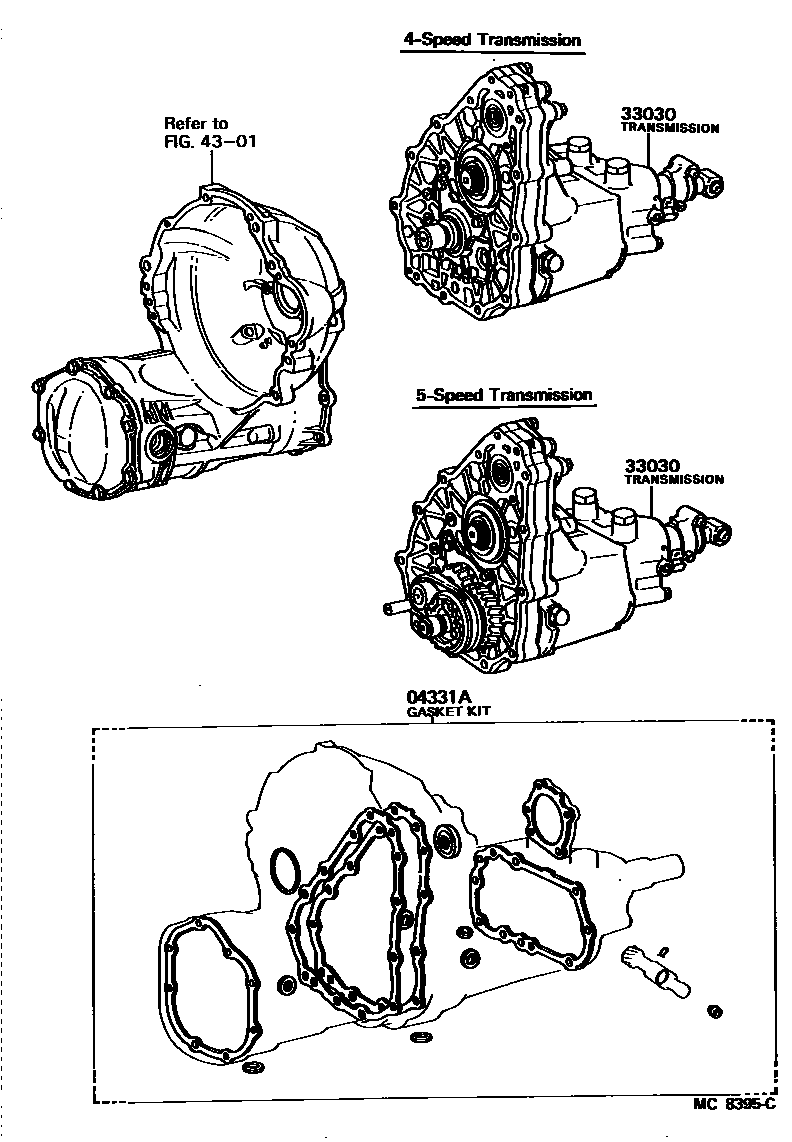

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-16010iAL20,21..MTM198205-198910

main04331-16020iAL25..6F198408-198910

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-16907iAL20..(3DS,5DS)..(DX,VC)198205-198408

Z44,*AXC=Y392

main33030-16908iAL2#..4F198205-198408

Z43,*AXC=Y372

main33030-16909iAL21..5F198205-198408

Z52

main33030-16913iAL20,21..4F198408-198910

Z45,*AXC=Y372

main33030-16914iAL20..3DS..4F..(DX,VC)198408-198605

Z46,*AXC=Y392

main33030-16915iAL21..5F..(EX,VE)198408-198910

main33030-16916iAL21..3ASU198408-198605

main33030-16917iAL25..6F198408-198605

main33030-16918iAL25..6F198605-198910

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

3 parts on this diagram · 2 diagrams in section
