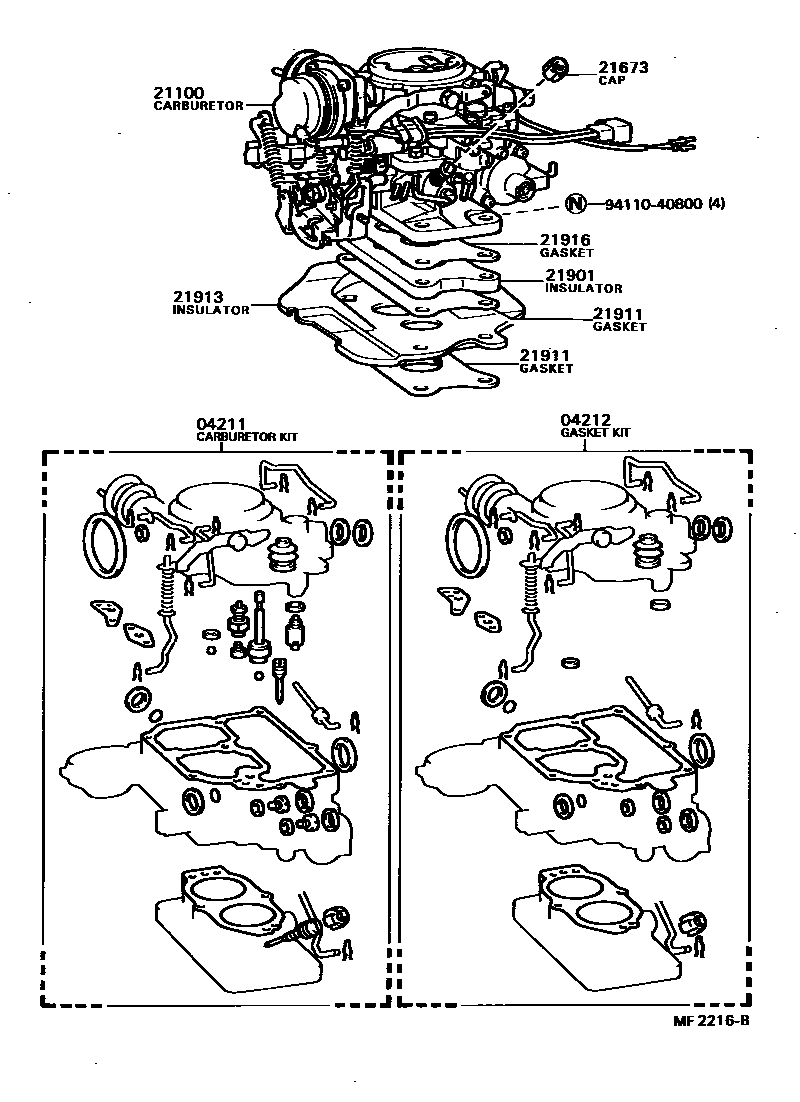

CARBURETOR ASSEMBLY

0001 1 0002 1 0003 1 0004 1

04211CARBURETOR KIT

main04211-15090i2AU,3AU..AL2#198205-198408

04212GASKET KIT, CARBURETOR

main04212-15050i2AU,3AU..AL2#198205-198408

main04212-15060i3AHU..AL21198205-198401

main04212-15061i3AHU..AL21198401-198408

main04212-15091i2AU,3AU..AL2#198502-198910

main04212-15110×2i2AU,3A#..AL2#198408-198502

main04212-15111×2i3ASU..AL21,25198502-198910

21100CARBURETOR ASSY

main21100-15250i3AHU..AL21198205-198408

main21100-15260i2AU,3AU..AL2#..MTM198205-198211

main21100-15261i2AU,3AU..AL2#..MTM198211-198408

main21100-15270i2AU,3AU..AL2#..3FC198205-198211

main21100-15271i2AU,3AU..AL2#..3FC198211-198408

main21100-15370i2AU,3AU..AL2#..MTM198408-198709

main21100-15371i2AU,3AU..AL2#..MTM198709-198910

main21100-15380i2AU,3AU..AL2#..3FC198408-198709

main21100-15381i2AU,3AU..AL2#..3FC198709-198910

main21100-15390i3ASU..AL21,25198408-198709

FR

main21100-15391i3ASU..AL25198709-198910

FR

main21100-15400i3ASU..AL21,25198408-198709

RR

main21100-15401i3ASU..AL25198709-198910

RR

21673CAP, IDLE LIMIT

main21673-13280i2AU,3AU..AL2#198211-198408

main21673-15010i3AHU..AL21198205-198304

main21673-15011i3AHU..AL21198304-198408

main21673-38020i2AU,3AU..AL2#198205-198211

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15011i2AU,3AU..AL2#198205-198210

main21901-15012i2AU,3AU..AL2#198210-198408

main21901-15020i3AHU..AL21198205-198210

main21901-15021i3AHU..AL21198210-198408

main21901-15070i2AU,3AU..AL2#198408-198910

21911GASKET, CARBURETOR

main21911-15040i2AU,3AU..AL2#198408-198910

main21911-15050×6i3ASU..AL21,25198408-198910

main21914-15010×2i3AHU..AL21198205-198405

main21914-15030×2i3AHU..AL21198405-198408

main21916-15030×2i2AU,3AU..AL2#198205-198408

21913INSULATOR, CARBURETOR HEAT, NO.2

main21913-15020i3AHU..AL21198205-198408

main21913-15030i2AU,3AU..AL2#198205-198408

main21913-15050i2AU,3AU..AL2#198408-198503

main21913-15060i3ASU..AL21,25198408-198910

main21913-15070i2AU,3AU..AL2#198503-198910

21916GASKET, CARBURETOR, NO.2

main21911-15020i3AHU..AL21198210-198408

main21914-15020i2AU,3AU..AL2#198210-198408

main21914-15030×2i2AU,3AU..AL2#198408-198910

9411040800

main94110-40800

9 parts on this diagram · 4 diagrams in section
