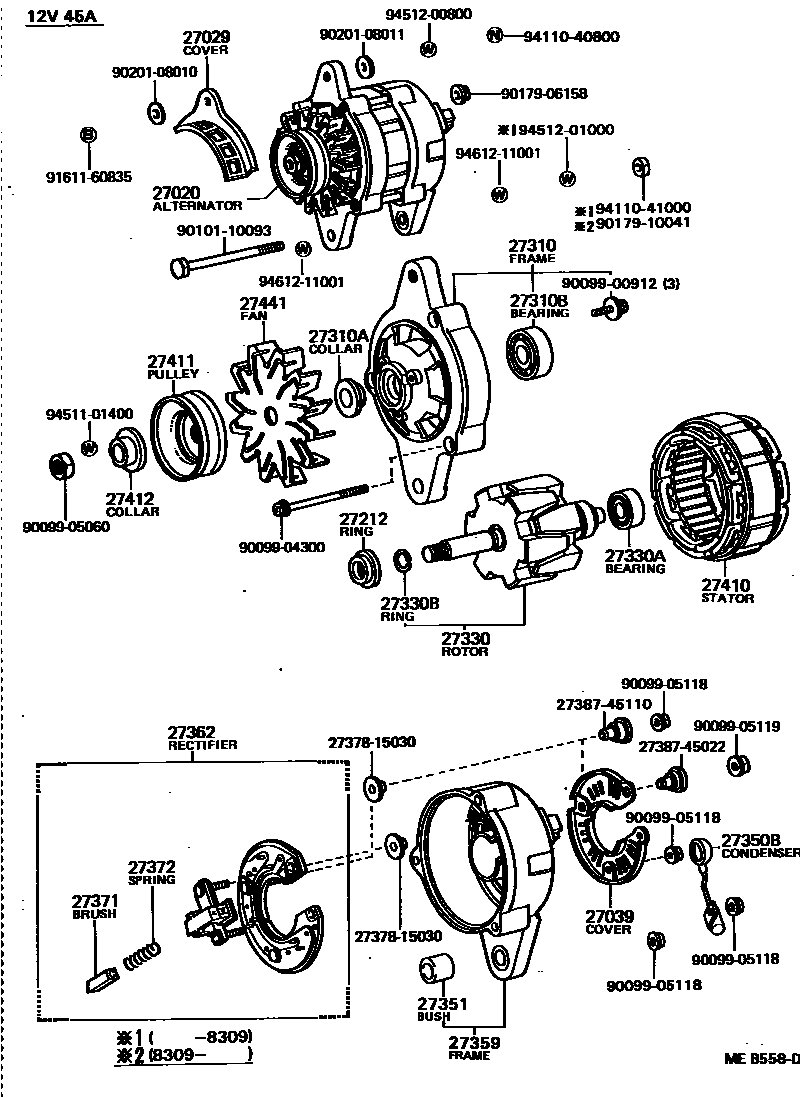

ALTERNATOR

0001 1 0002 1

27020ALTERNATOR ASSY

main27020-15022i2AU,3AU..AL20,21198605-198910

main27020-15100i2AU..AL20..4F..(DX,VC)198408-198910

main27020-15140i2AU..AL20..3DS..4F..(DX,VC)198408-198605

27029COVER, ALTERNATOR

main27029-15012i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27039COVER, ALTERNATOR REAR END

main27039-18011i2AU..AL20..DX,VC198205-198408

12V 45A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i2AU..AL20..DX,VC198205-198408

12V 45A

main27412-15150i2AU,3A#..AL2#198604-198910

12V 50A,55A

main27412-45070i2AU,3A#..AL2#198205-198604

12V 50A,55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15030i2AU..AL20..4F..(DX,VC)198408-198910

12V 45A

main27310-61023i2AU,3A#..AL2#198205-198910

12V 50A,55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27330ROTOR ASSY, ALTERNATOR

main27330-16030i2AU,3A#..AL2#198604-198605

12V 50A

main27330-45020i2AU..AL20..4F..(DX,VC)198408-198910

12V 45A

main27330-45070i2AU,3A#..AL2#198205-198604

12V 50A

main27330-63010i2AU..AL20..3DS..4F..(DX,VC)198408-198605

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i2AU..AL20..DX,VC198205-198408

12V 45A

27350BCONDENSER, ALTERNATOR

main90099-52065i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15021i2AU,3A#..AL2#198205-198910

12V 50A,55A

main27359-15030i2AU..AL20..DX,VC198205-198408

12V 45A

27362RECTIFIER ASSY, W/BRUSH

main27362-15021i2AU,3A#..AL2#198205-198605

12V 50A

main27362-18011i2AU..AL20..DX,VC198205-198408

12V 45A

main27362-34021i2AU..AL20..3DS..4F..(DX,VC)198408-198605

12V 55A

27371BRUSH, ALTERNATOR

main27371-31011×2i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27410STATOR ASSY, ALTERNATOR

main27410-38120i2AU..AL20..4F..(DX,VC)198408-198910

12V 45A

main27410-41080i2AU,3AU..AL20,21198605-198910

12V 50A

main27410-43040i2AU..AL20..3DS..4F..(DX,VC)198408-198605

12V 55A

27411PULLEY, ALTERNATOR

main27411-26111i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

27441FAN, ALTERNATOR

main27441-34030i2AU,3A#..AL2#198205-198910

12V 45A,50A,55A

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110093

main90101-10093

9017906158

main90179-06158

9017910041

main90179-10041

9020108010

main90201-08010

9020108011

main90201-08011

9161160835

main91611-60835

9411040800

main94110-40800

9411041000

main94110-41000

9451101400

main94511-01400

9451200800

main94512-00800

9451201000

main94512-01000

9461211001

main94612-11001

40 parts on this diagram · 2 diagrams in section
