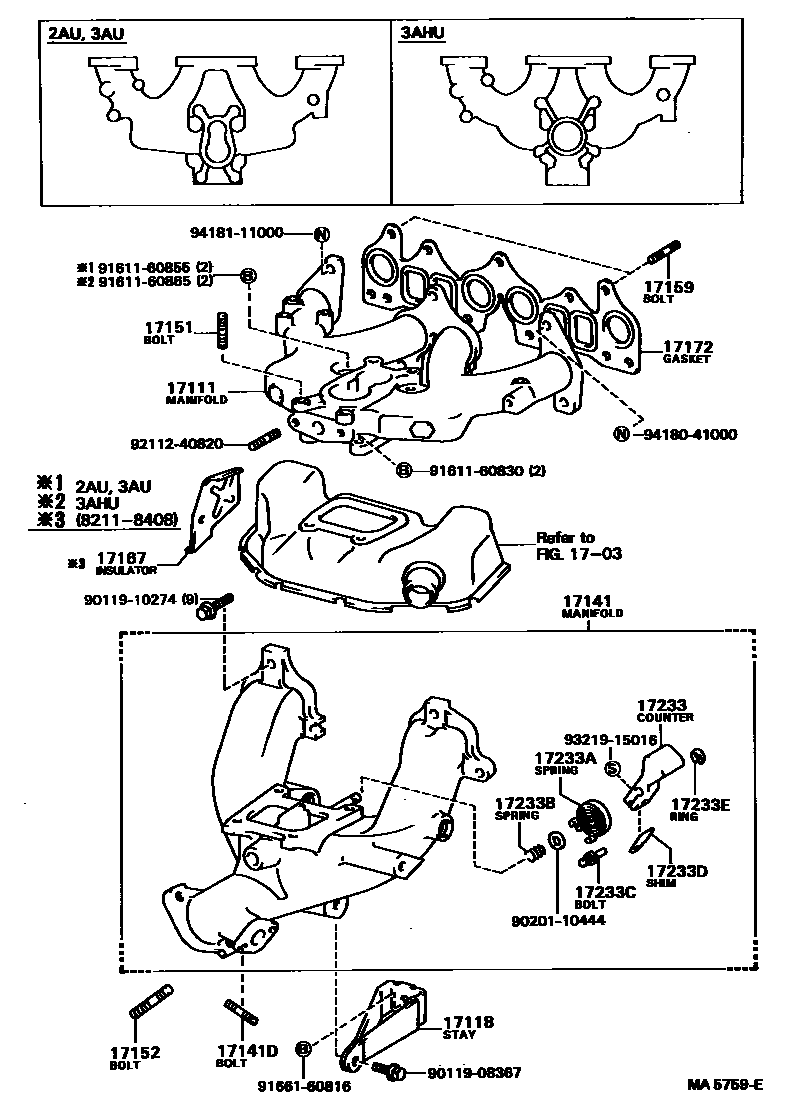

MANIFOLD

0001 1 0002 1

1703AIR CLEANER

→ Go to FIG 17-03

17111MANIFOLD, INTAKE

main17111-15030i2AU,3AU..AL2#198205-198408

main17111-15040i3AHU..AL21198205-198408

main17111-15050i3ASU..AL21,25198408-198910

17118STAY, MANIFOLD

main17118-15040i2AU,3A#..AL2#198205-198408

main17118-15060i3ASU..AL21,25198408-198910

17141MANIFOLD, EXHAUST

main17140-15070i2AU,3A#..AL2#198205-198408

main17141-15100i3ASU..AL21,25198408-198910

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08128×2i2AU,3A#..AL2#198205-198910

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08232×4i2AU,3AU..AL2#198505-198910

main92112-40832×4i2AU,3AU..AL2#198408-198505

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058×3i2AU,3A#..AL2#198205-198805

main90116-10146×3i2AU,3A#..AL2#198805-198910

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10090×2i3ASU..AL21,25198408-198910

L=44,S=17&22

main92112-61032×3i2AU,3A#..AL2#198205-198910

L=44,S=12&20

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-15020i2AU,3AU..AL2#198211-198408

main17932-15060i3ASU..AL21,25198408-198910

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-15010i2AU,3A#..AL2#198205-198910

17233COUNTER WEIGHT

main17233-15010i2AU,3AU..AL2#198408-198910

17233ASPRING, SPIRAL, NO.1(FOR COUNTER WEIGHT)

main90510-06001i2AU,3A#..AL2#198205-198408

17233BSPRING, SPIRAL, NO.2(FOR COUNTER WEIGHT)

main90501-08022i2AU,3A#..AL2#198205-198408

17233CBOLT(FOR COUNTER WEIGHT)

main90109-10045i2AU,3A#..AL2#198205-198408

17233DSHIM(FOR COUNTER WEIGHT)

main90910-10005i2AU,3A#..AL2#198205-198408

17233ERING, E(FOR COUNTER WEIGHT)

main96160-00800i2AU,3A#..AL2#198205-198408

9011908367

main90119-08367

9011910274

main90119-10274

9020110444

main90201-10444

9161160830

main91611-60830

9161160855

main91611-60855

9161160865

main91611-60865

9166160816

main91661-60816

9211240820

main92112-40820

9321915016

main93219-15016

9418041000

main94180-41000

9418111000

main94181-11000

27 parts on this diagram · 2 diagrams in section
