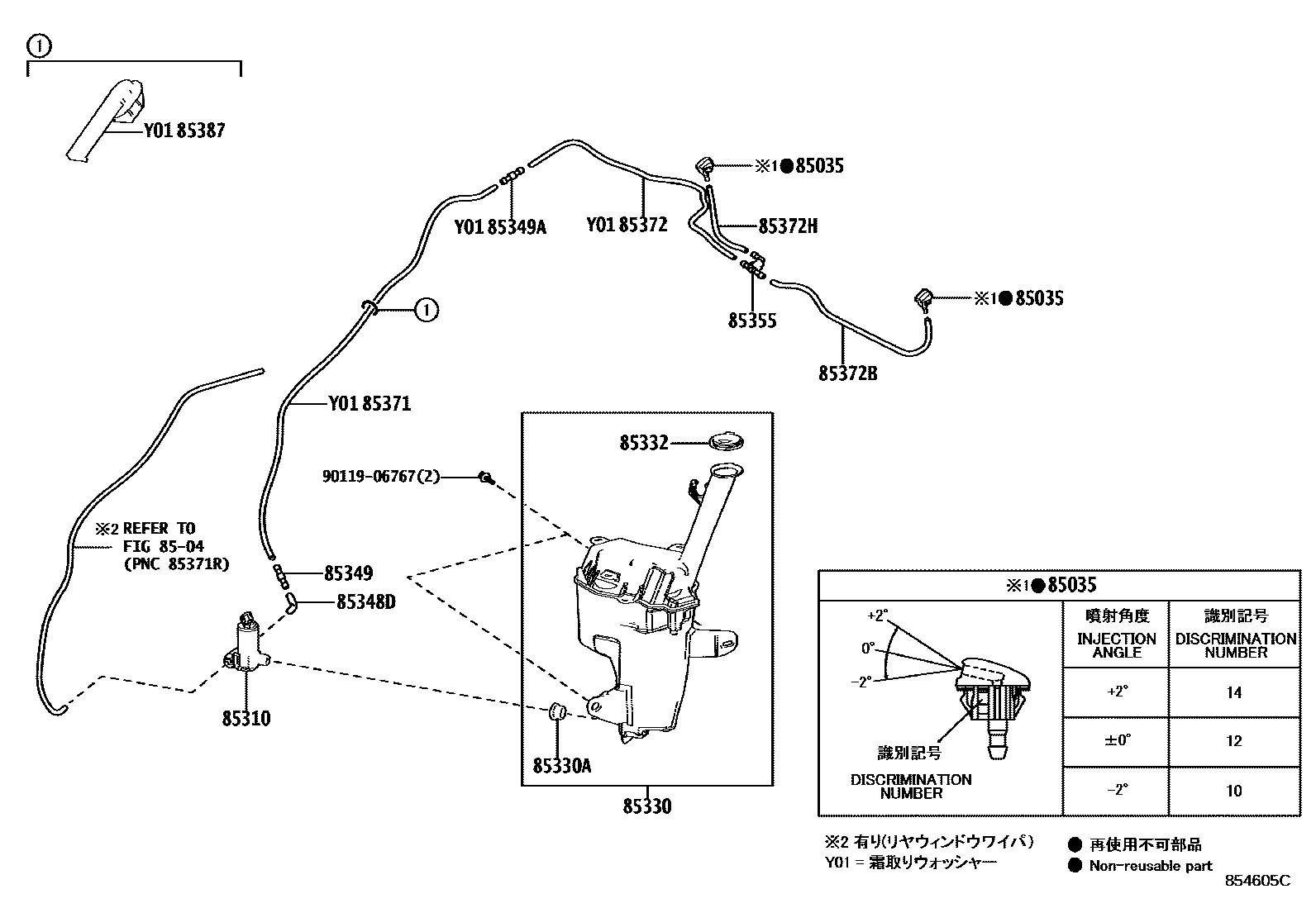

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52430×2iMXPK10,15202106-202403

main85381-52440×2iMXPK10,15202106-202403

main85381-52450×2iMXPK10,15202106-202403

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47091supersedes 85330-47081iMXPK11,16202106

85330JAR ASSY, WINDSHIELD WASHER

main85315-K0030supersedes 85315-K0040iMXPK10,15202106-202403

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iMXPK10,15202106-202403

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iMXPK10,15202106-202403

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iMXPK10,15202106-202403

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iMXPK10,15202106-202403

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iMXPK10,15202106-202403

85355VALVE, WINDSHIELD WASHER HOSE

main85321-52010iMXPK10,15202106-202403

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62228iMXPK10,15202106-202403

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46128iMXPK10,15202106-202403

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46130iMXPK10,15202106-202403

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90069-46129iMXPK10,15202106-202403

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090iMXPK10,15202106-202403

9011906767

main90119-06767

16 parts on this diagram · 1 diagram in section
