HEV INVERTER

0001 1���� 0002 1����(�������) 0003 1��

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

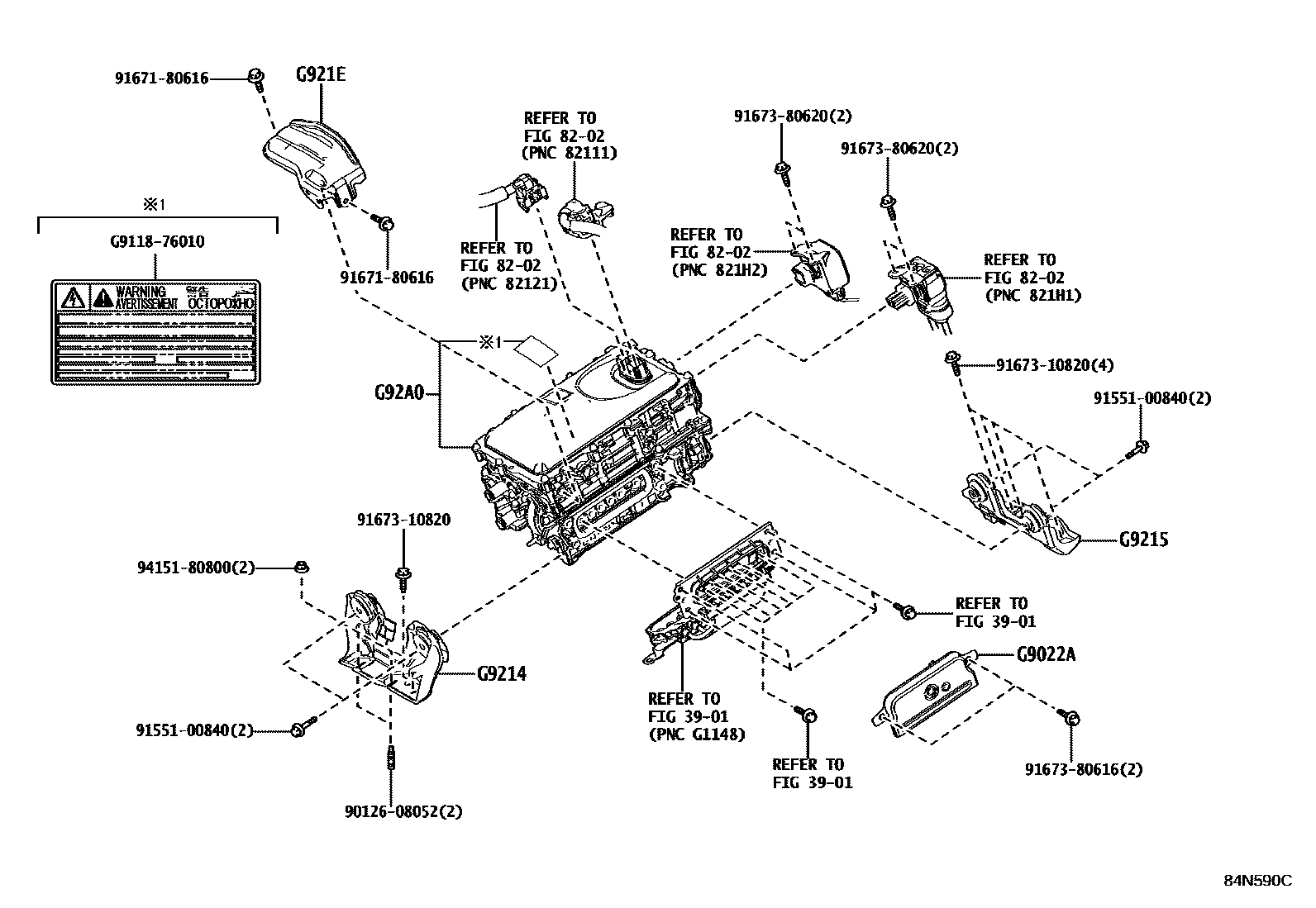

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iMXPK10,15202106-202403

G9214BRACKET, INVERTER, NO.1

mainG9214K0010iMXPK10,15202106-202403

G9215BRACKET, INVERTER, NO.2

mainG9215K0010iMXPK10,15202106-202403

G921EPROTECTOR, INVERTER

mainG921EK0010iMXPK10,15202106-202403

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG9200K9011iMXPK10202106-202403

mainG9200K9021iMXPK15202106-202403

mainG92A052090iMXPK11202106

mainG92A052100iMXPK16202106

9012608052

main90126-08052

9155100840

main91551-00840

9167180616

main91671-80616

9167310820

main91673-10820

9167380616

main91673-80616

9167380620

main91673-80620

9415180800

main94151-80800

G911876010LABEL, ELECTRIC VEHICLE UNIT CONTROLLER CAUTION, NO.1

mainG9118-76010

15 parts on this diagram · 3 diagrams in section
