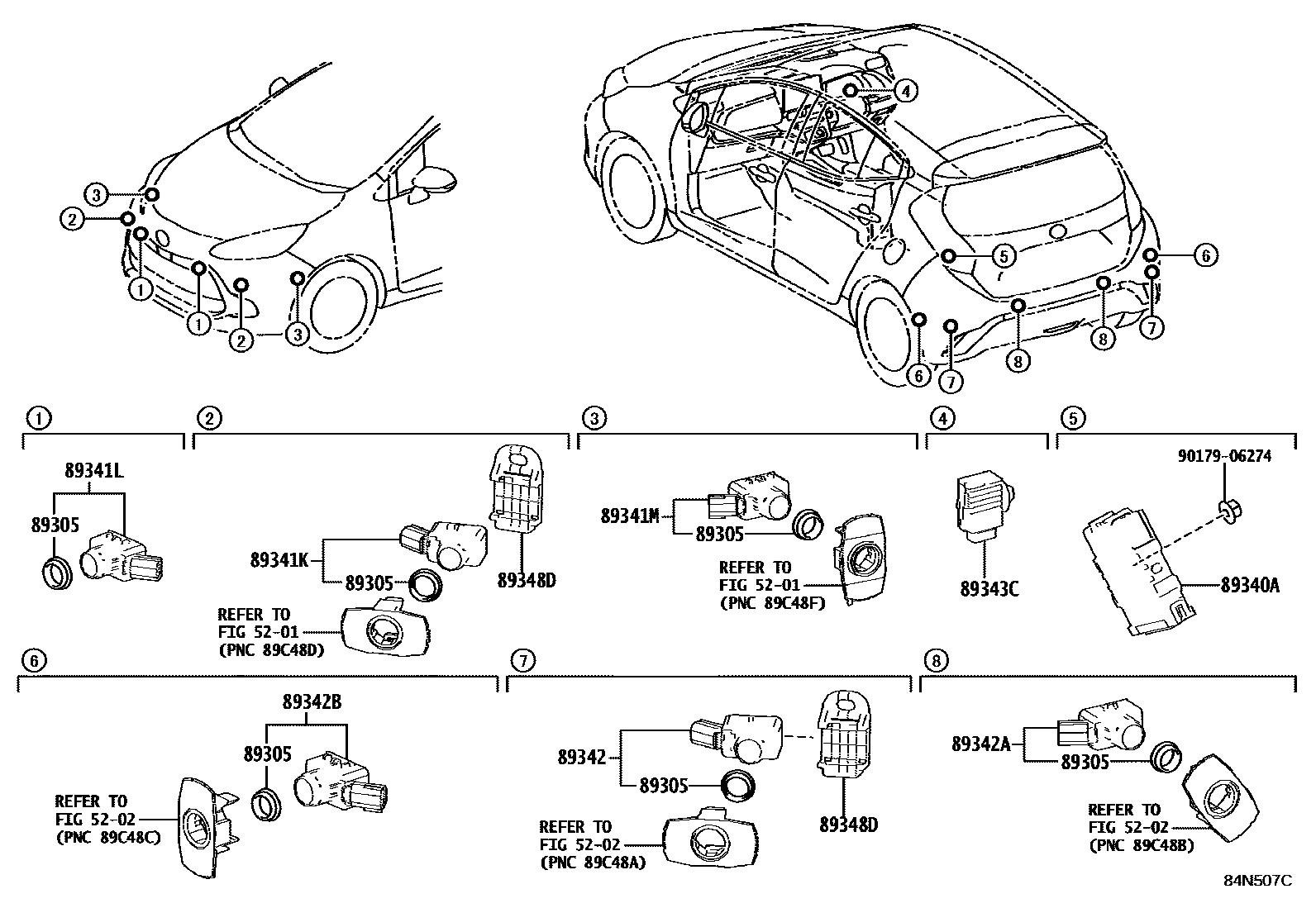

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010iMXPK11,16..G,GRS,Z; MXPK11,16..X202106

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-52150iMXPK11,16..G,Z; MXPK11,16..X202106

main89340-52160iMXPK1#..B,X; MXPK11,16..X; MXPK11,16..Z202106-202212

main89340-52320supersedes 89340-52310iMXPK11..GRS202212

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-K0060-A4×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-B0×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-C2×2iMXPK11,16..G,GRS,Z; MXPK11,16..X202106

main89341-K0060-D4×2iMXPK11..GRS202212

EMOTIONAL RED 2,2YQ ,3U5

main89341-K0060-E4×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-E8×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-F0×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-G2×2iMXPK11,16..G,GRS,Z; MXPK11,16..X202106

main89341-K0060-J0×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-S6×2iMXPK11..GRS202212

DK.GRAY,1L7

main89341-K0060-A0×2iMXPK11,16..X202404

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-50080-C0×2iMXPK11,16..G,GRS,Z; MXPK11,16..X202305

main89341-K0060-C0×2iMXPK1#..B,X; MXPK11,16..G,GRS,Z; MXPK11,16..X202106-202304

89341MSENSOR, ULTRASONIC, FRONT SIDE

main89341-K0070-A0×2iMXPK11,16..X202404

main89341-K0070-A7×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-B0×2iMXPK10,15; MXPK11,16..Z202106-202212

main89341-K0070-C2×2iMXPK11,16..G,GRS; MXPK11,16..X202106

main89341-K0070-D4×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-E4×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-E5×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-F0×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-G3×2iMXPK11,16..G,GRS; MXPK11,16..X202106

main89341-K0070-J0×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-S0×2iMXPK11..GRS202212

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-K0060-A4×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-B0×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-C2×2iMXPK11,16..G,GRS,Z; MXPK11,16..X202106

main89341-K0060-D4×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-E4×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-E8×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-F0×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-G2×2iMXPK11,16..G,GRS,Z; MXPK11,16..X202106

main89341-K0060-J0×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-S6×2iMXPK11..GRS202212

DK.GRAY,1L7

main89341-K0060-A0×2iMXPK11,16..X202106

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-K0060-A4×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-B0×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-C2×2iMXPK11,16..G,GRS,Z; MXPK11,16..X202106

main89341-K0060-D4×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-E4×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-E8×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-F0×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-G2×2iMXPK11,16..G,GRS,Z; MXPK11,16..X202106

main89341-K0060-J0×2iMXPK11,16..G,Z; MXPK11,16..X202106

main89341-K0060-S6×2iMXPK11..GRS202212

DK.GRAY,1L7

main89341-K0060-A0×2iMXPK11,16..X202106

89342BSENSOR, ULTRASONIC, REAR SIDE

main89341-K0070-A0×2iMXPK11,16..X202404

main89341-K0070-A7×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-B0×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-C2×2iMXPK10,15; MXPK11,16..Z202106-202212

main89341-K0070-D4×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-E4×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-E5×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-F0×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-G3×2iMXPK11,16..G,GRS; MXPK11,16..X202106

main89341-K0070-J0×2iMXPK11,16..G; MXPK11,16..X202106

main89341-K0070-S0×2iMXPK11..GRS202212

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iMXPK11,16..G,GRS,Z; MXPK11,16..X202106

89348DCLIP, ULTRASONIC SENSOR

main89348-58130×2iMXPK11,16..G; MXPK11,16..G,Z; MXPK11,16..X202106

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
